CLGR® Grade 100 Swivel Self Locking Hook

Name: CLGR® Grade 100 Swivel Self Locking Hook
Brand: CLGR®

CLGR® Grade 100 Swivel Self Locking Hook, also called Grade 100 Swivel Self-Locking Safety Hook, Grade 100 Self-Closing Swivel Hook.

Grade 100 Swivel Self-Locking Hooks are engineered to combine the robust strength of alloy steel with the enhanced safety provided by an self locking latch mechanism.

Specifically designed for integration with Grade 100 chain slings and overhead lifting systems, these hooks feature an automatic closure and locking function upon loading, effectively preventing accidental disengagement during operational use. Hook will not open under load.

Equipped with a swivel connection, the hooks facilitate proper alignment prior to load application while ensuring stable, non-rotating performance under full load conditions.

To Get A Quote >

CLGR® Grade 100 Swivel Self Locking Hook

CLGR® Grade 100 Swivel Self Locking Hook China Supplier

CLGR® Grade 100 Swivel Self Locking Hook China Manufacturer

CLGR® Grade 100 Swivel Self Locking Hook China Factory

 

Overview of CLGR® Grade 100 Swivel Self Locking Hook

Brand	CLGR®
Standard	EN1677
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated
Size	6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® Grade 100 Swivel Self Locking Hook

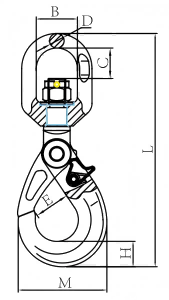

drawing-of-clgr®-grade-100-swivel-self-locking-hook-china-supplier

Part No.	Weight (kg)	WLL(t)	Breaking load (t)	B±1 (mm)	C±1 (mm)	D±0.5 (mm)	E±1 (mm)	H±1 (mm)	M±2 (mm)	L±3 (mm)
10CRSSLH06	0.6	1.4	5.6	32.5	23	11.5	28	20	70	184
10CRSSLH08	1.1	2.5	10	36	28.5	13	35.5	26	90	226
10CRSSLH10	2	4	16	42	35	15.5	45	30	108	269
10CRSSLH13	4	6.7	26.8	50	41	17	53.6	43	138.5	327
10CRSSLH16	6.8	10	40	61	58	21.5	62	50.5	170	413
10CRSSLH20	12.5	16	64	72	63	26	76.5	62	192.5	460
10CRSSLH22	17.1	19	76	97	98	33	80	65	205	566
