CLGR® G100 Eye Sling Hook with Latch

Name: CLGR® G100 Eye Sling Hook with Latch
Brand: CLGR®

CLGR® G100 Eye Sling Hook with Latch, also known as Lifting Eye Sling Hook with Latch, G10 Sling Eye Hook with Latch, G100 Eye Sling Latch Hook, Chain Sling Hook with Eye and Latch, Eye Sling Hooks with Safety Latch.

This Grade 100 alloy steel eye sling hook is quenched and tempered to deliver superior strength, offering a working load limit (WLL) at least 25% higher than traditional G80 products.

Manufactured in compliance with EN 1677-2, ASME B30.26, ASME B30.10, and PAS1061 standards, it undergoes rigorous proof load testing at 2.5 times the WLL with batch-specific certification and features a 4:1 safety factor for maximum reliability in demanding industrial lifting applications.

To Get A Quote >

CLGR® G100 Eye Sling Hook with Latch wholesale

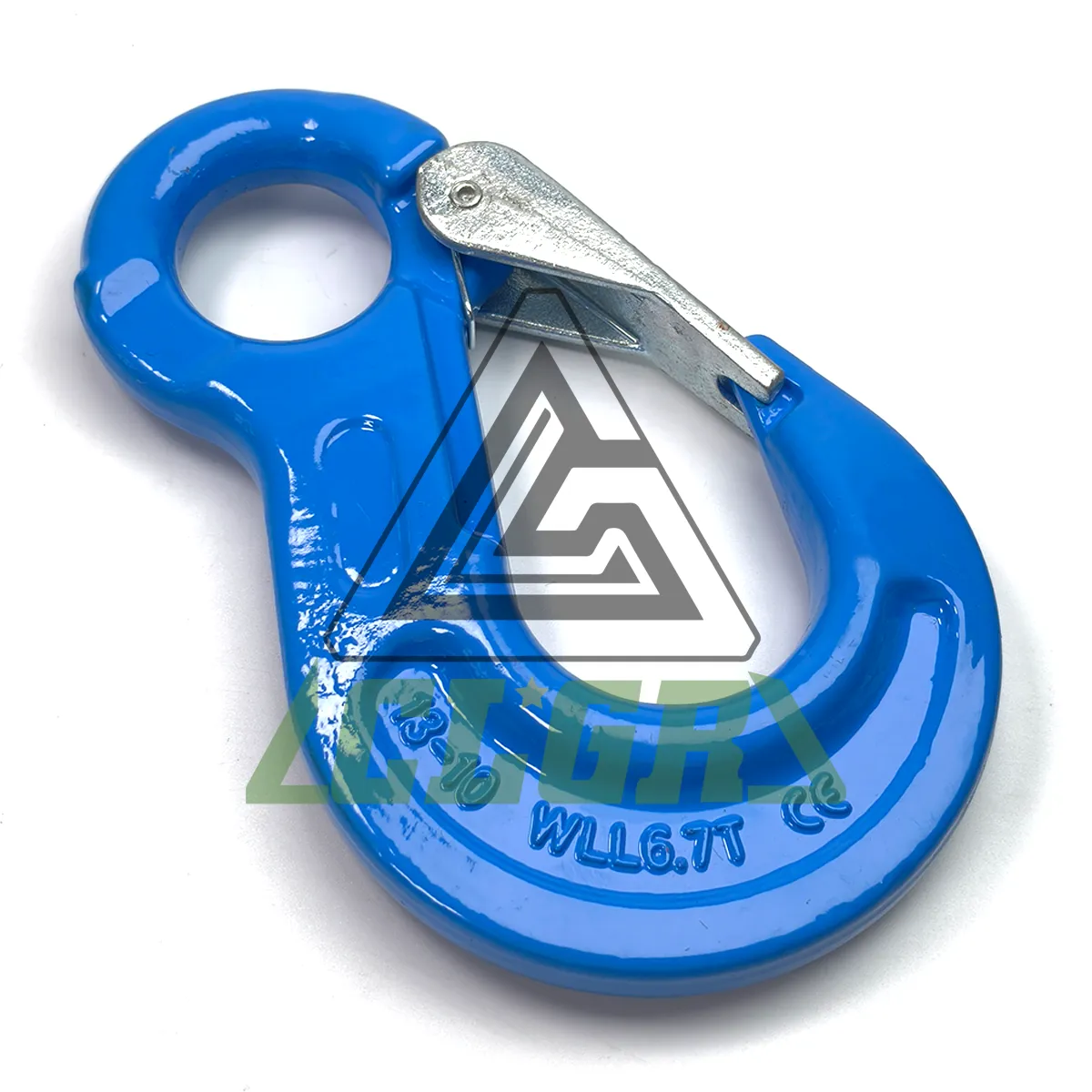

CLGR® G100 Eye Sling Hook with Latch china manufacturer

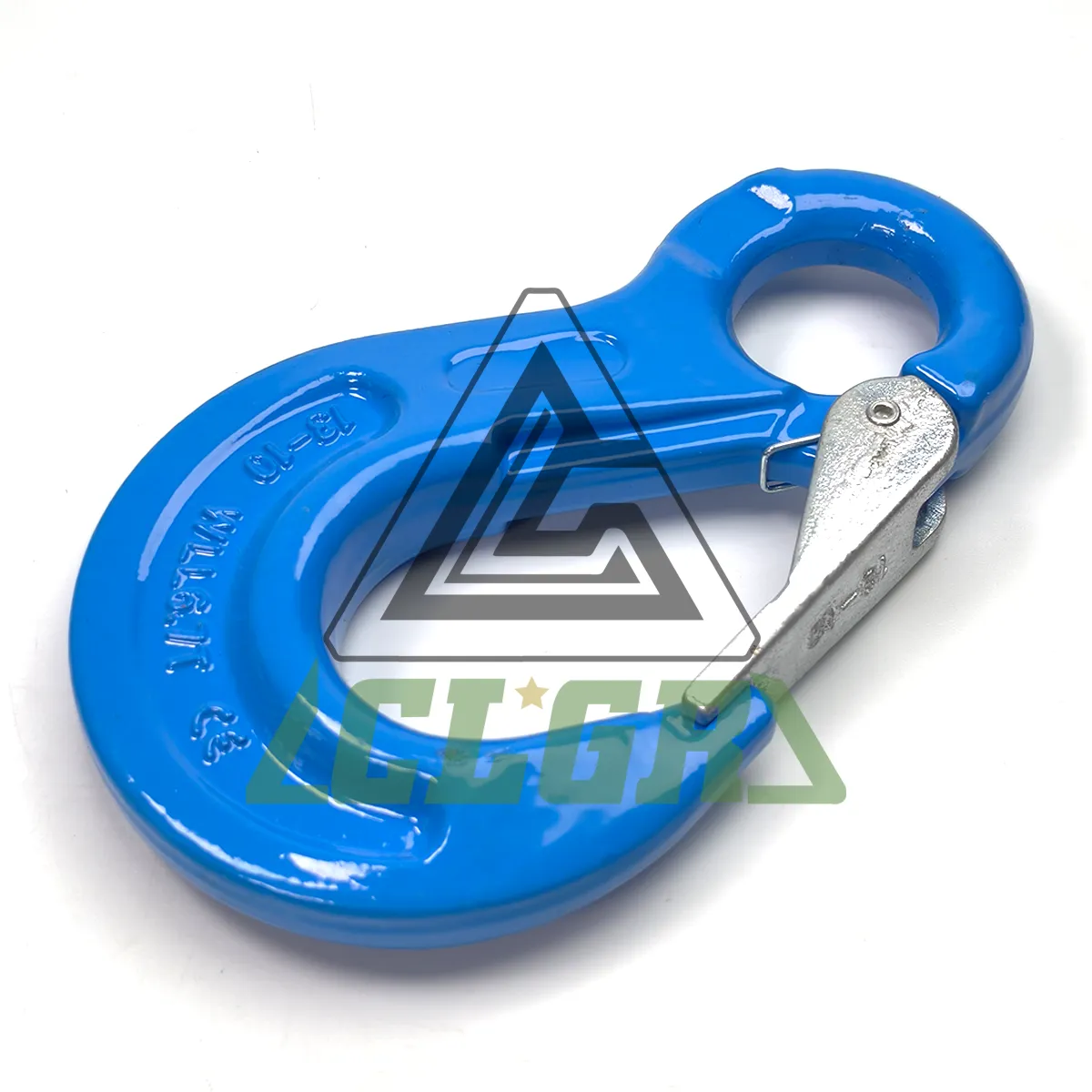

CLGR® G100 Eye Sling Hook with Latch china supplier

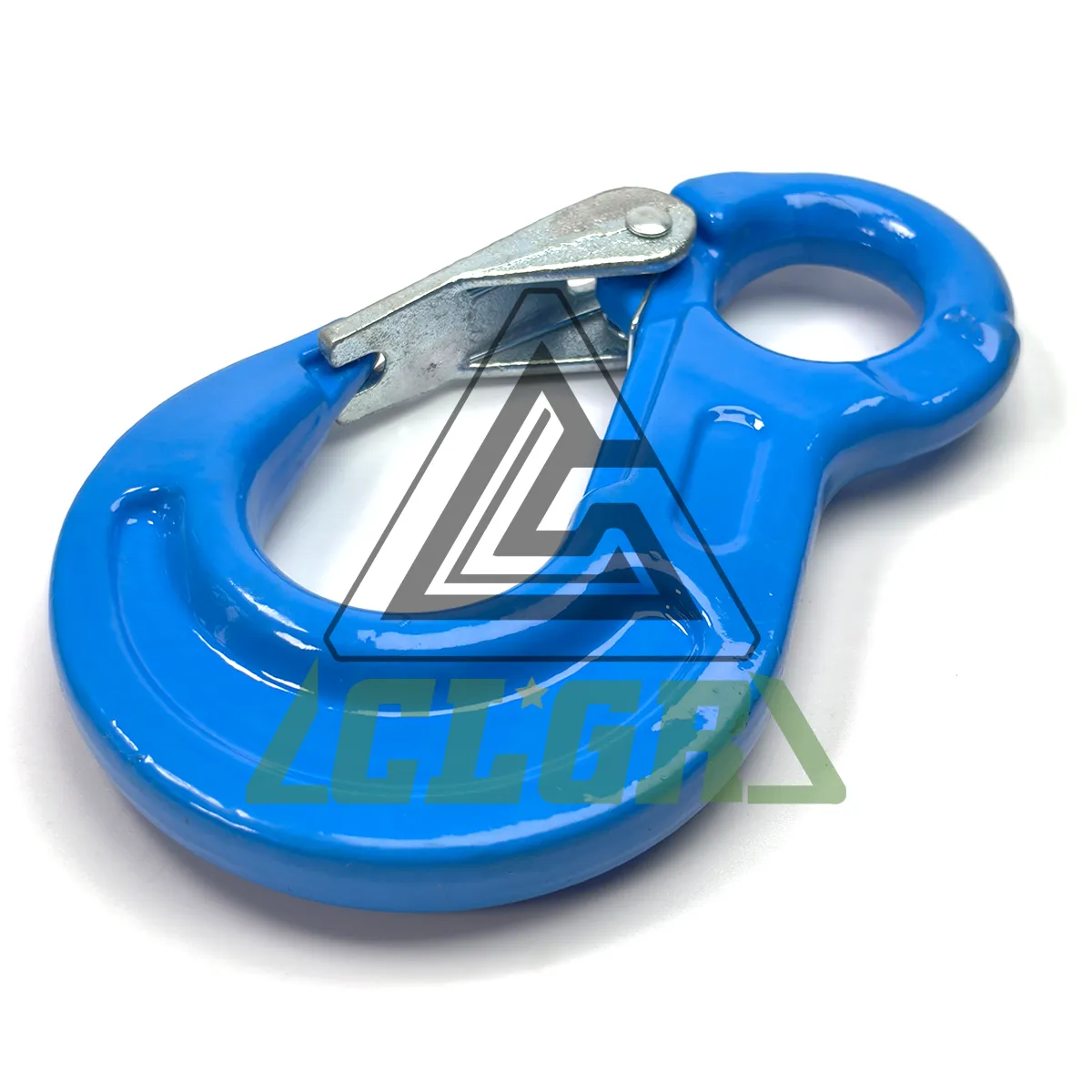

CLGR® G100 Eye Sling Hook with Latch china factory

 

Overview of CLGR® G100 Eye Sling Hook with Latch

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Body: Forged / Quenched and Tempered. Latch: Forged / Precision Cast
Finish	Body: Powder Coated Latch: Hot dip galvanized / Galvanized / Dacroment
Size	6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm
Tips	Color Code can be Customized according to customers' requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® G100 Eye Sling Hook with Latch

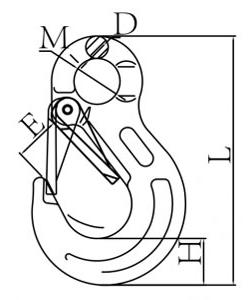

drawing-of-clgr®-g100-eye-sling-hook-with-latch-china-supplier

Part No.	Weight (kg)	WLL (t)	Breaking load (t)	D±1	E±2	H±1	M±1	L±2.5
10CRESHL06	0.32	1.4	5.6	10	18.5	21	20.5	111
10CRESHL08	0.6	2.5	10	11	25	27.5	25	137.5
10CRESHL10	1.2	4	16	16	28	33	34	171.5
10CRESHL13	2.2	6.7	26.8	19	38	43.5	43	219
10CRESHL16	3.5	10	40	24.5	44	50	50	260
10CRESHL20	7.15	16	64	27	52	56	55	298
10CRESHL22	11.5	19	76	29	66	62	60	330
10CRESHL26	12.2	26.5	106	35	73	75	70	376
10CRESHL32	17.5	39.3	157.2	39	87	89	81.5	458
