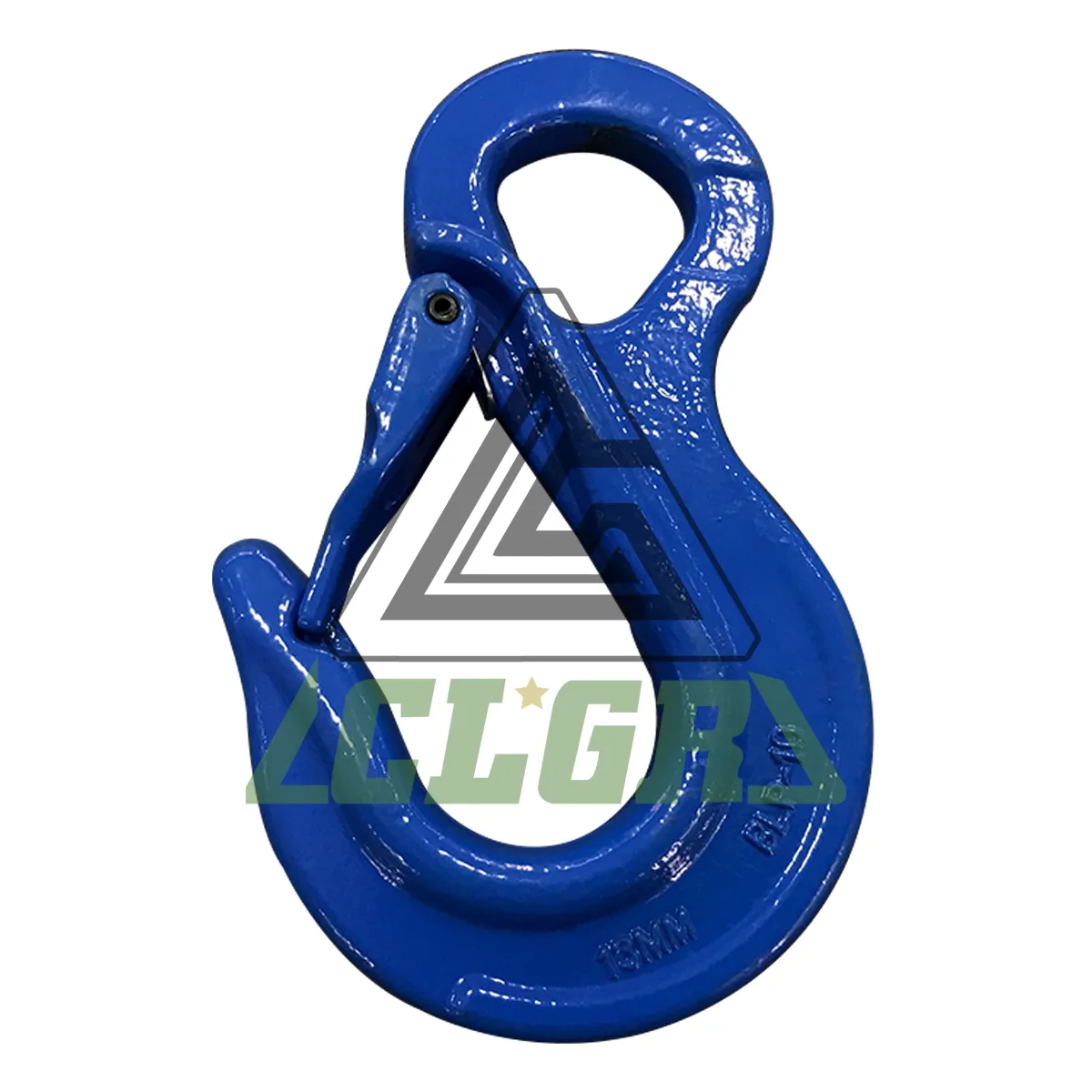

CLGR® Grade 100 Eye Sling Hooks with Forged Latch

Name: CLGR® Grade 100 Eye Sling Hooks with Forged Latch
Brand: CLGR®

CLGR® Grade 100 Eye Sling Hooks with Forged Latch, also known as Eye Sling Hook w/ Forged Latch, Grade 100 Eye Sling Hook w/ Latch.

The Grade 100 Eye Sling Hook with Forged Latch is engineered for demanding heavy-duty lifting operations and is fully compatible with Grade 100 chains. Its wide throat design allows for quick and easy rigging, while the forged latch provides secure load retention. This makes it an ideal choice for use with both chain and wire rope slings across various industrial applications.

Manufactured using a quenching and tempering process, this g100 eye sling hook offers a working load limit (WLL) that exceeds conventional G80 products by at least 25%. Each production batch is certified and undergoes proof load testing at 2.5 times the WLL, backed by a 4:1 safety factor to ensure reliable performance under extreme conditions.

Important Notice: This product is designed for straight-pull applications only. Loading on the hook tip or the safety latch is strictly prohibited.

To Get A Quote >

CLGR® Grade 100 Eye Sling Hooks with Forged Latch

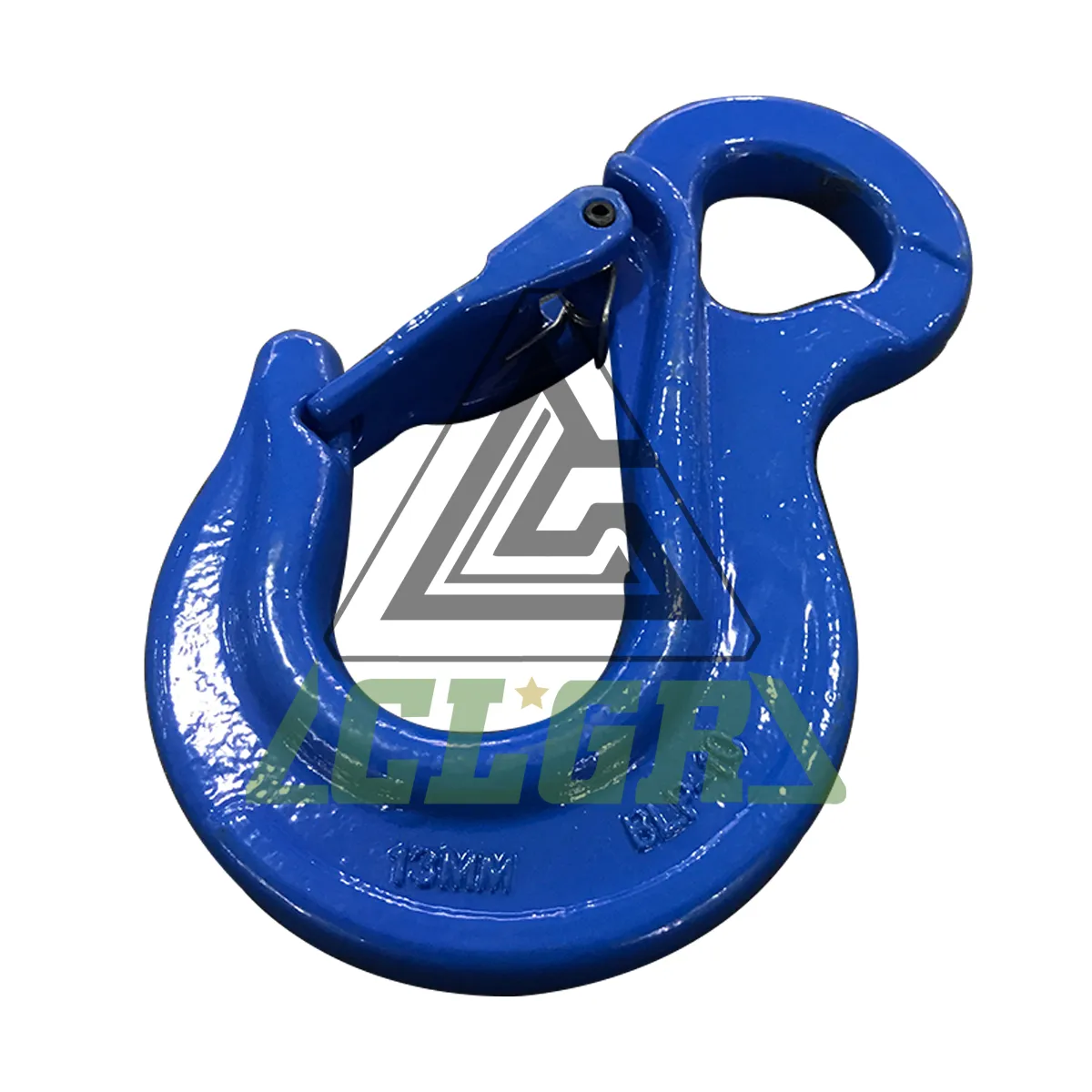

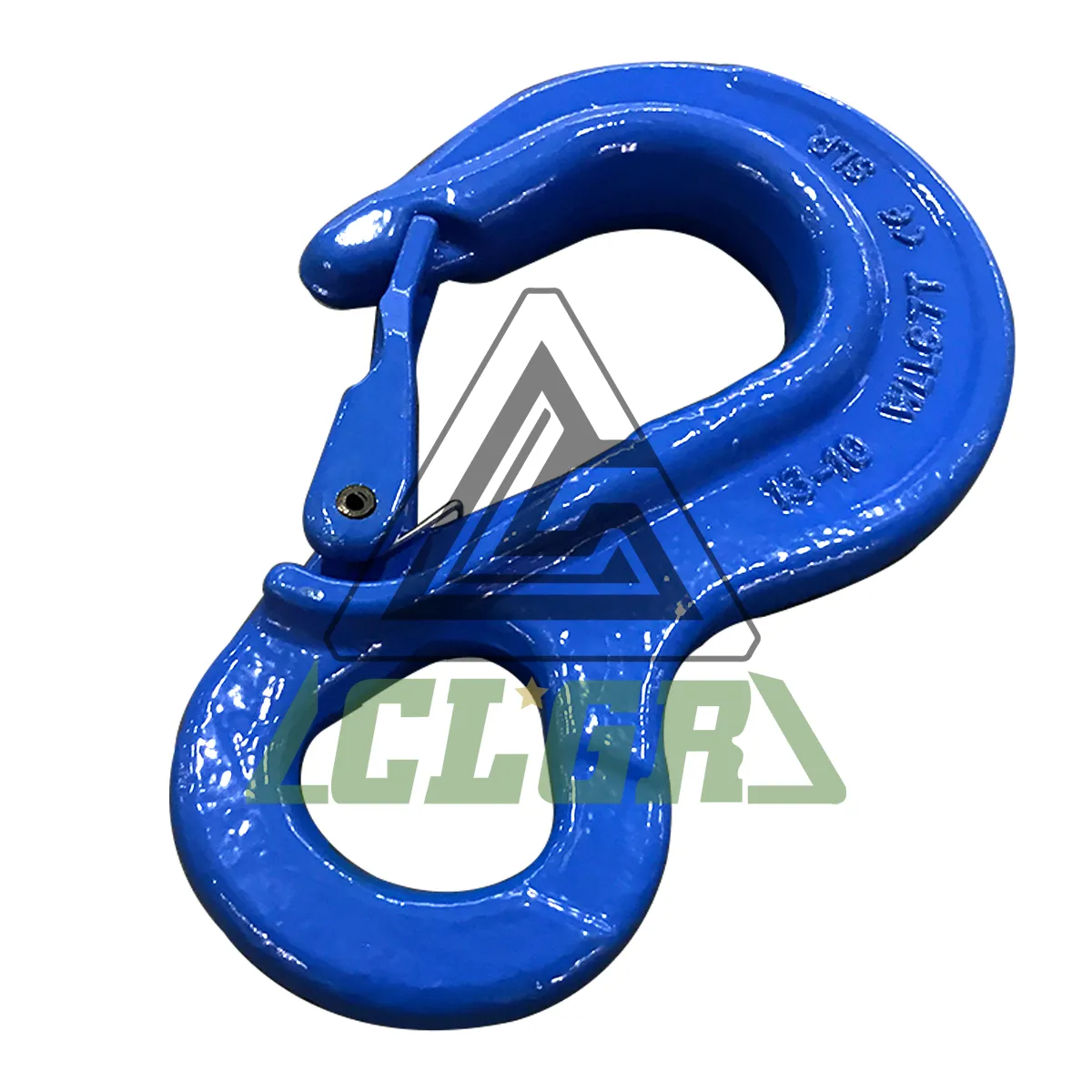

CLGR® Grade 100 Eye Sling Hooks with Forged Latch supplier

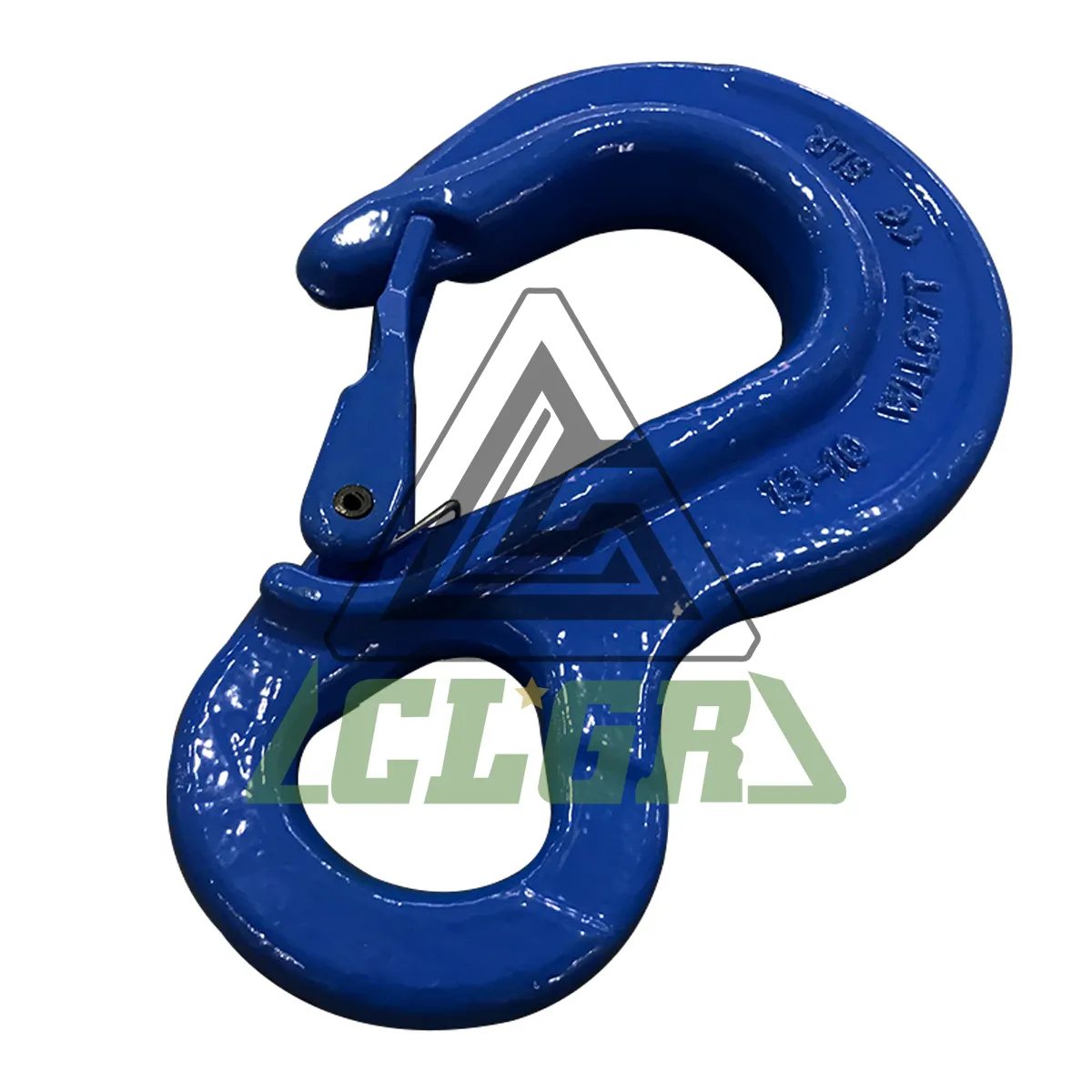

CLGR® Grade 100 Eye Sling Hooks with Forged Latch China

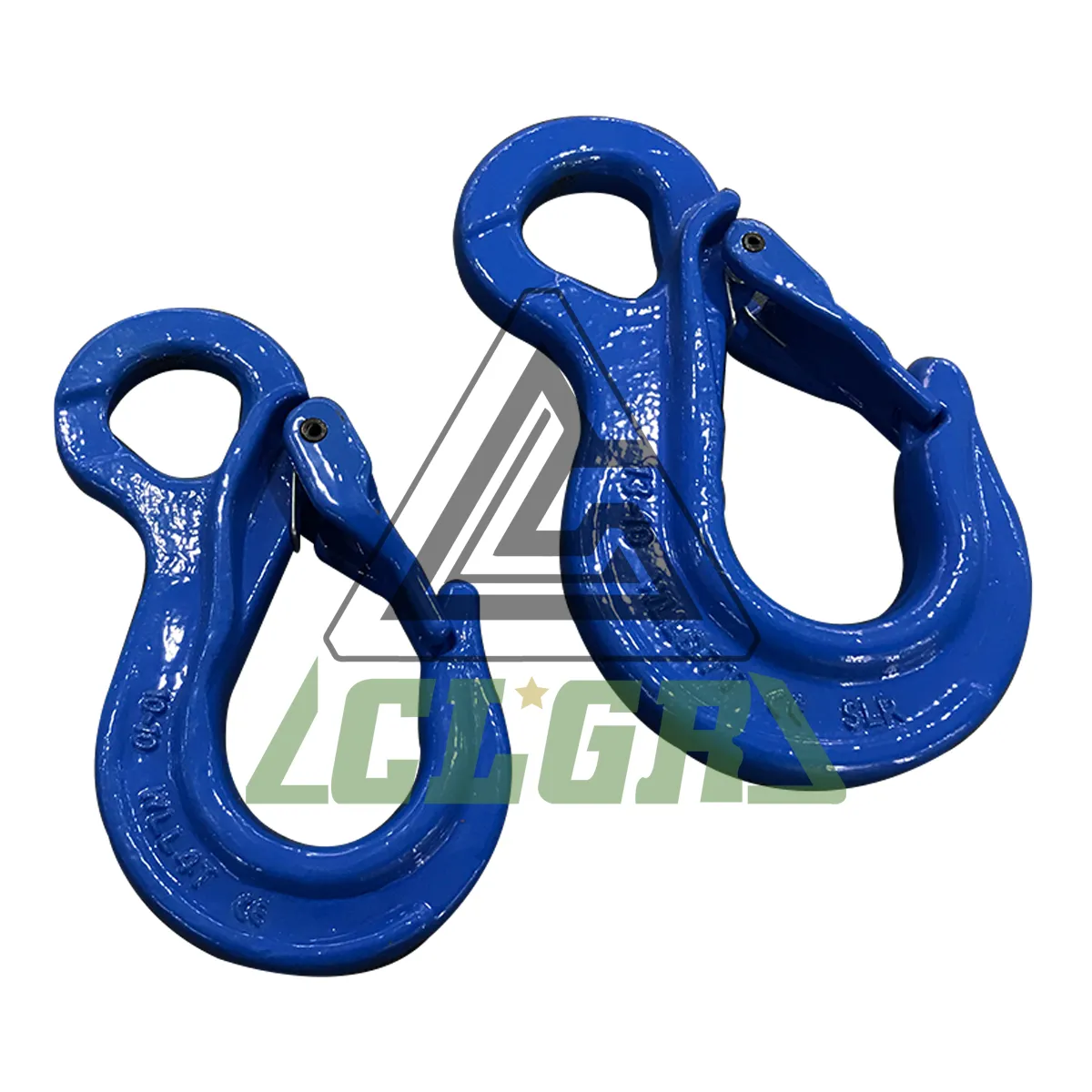

CLGR® Grade 100 Eye Sling Hooks with Forged Latch China Manufacturer

 

Overview of CLGR® Grade 100 Eye Sling Hooks with Forged Latch

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder Coated
Size	8mm, 10mm, 13mm
Tips	Color Code: Customized according to customers' requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® Grade 100 Eye Sling Hooks with Forged Latch

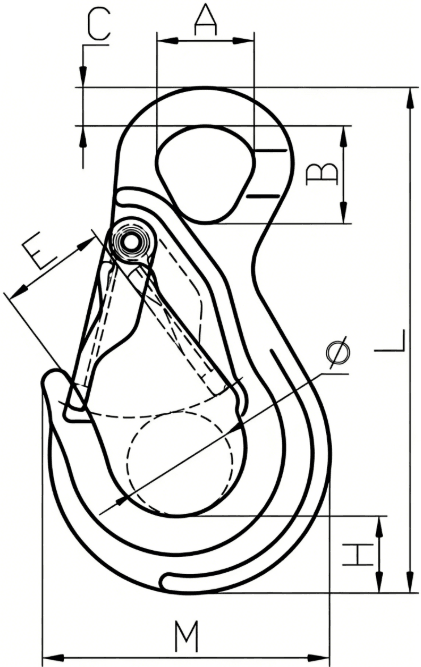

drawing-of-clgr®-grade-100-eye-sling-hooks-with-forged-latch-china-supplier

Part No.	WEIGHT /kg	WLL (t)	B.L. (t)	A±1	B ±l	E±2	H±l	φ±1,5	C±0,5	L ±2,5	M ±2
10CRESHFT08	0.4	2.5	10	28	28	28.5	22	28	u	145	82
10CRESHFT10	0.86	4	16	34	34	31	26.2	35	14	170	97.5
10CRESHFT13	1.75	6.7	26.8	42	44	40	36	36	18.5	206	135
