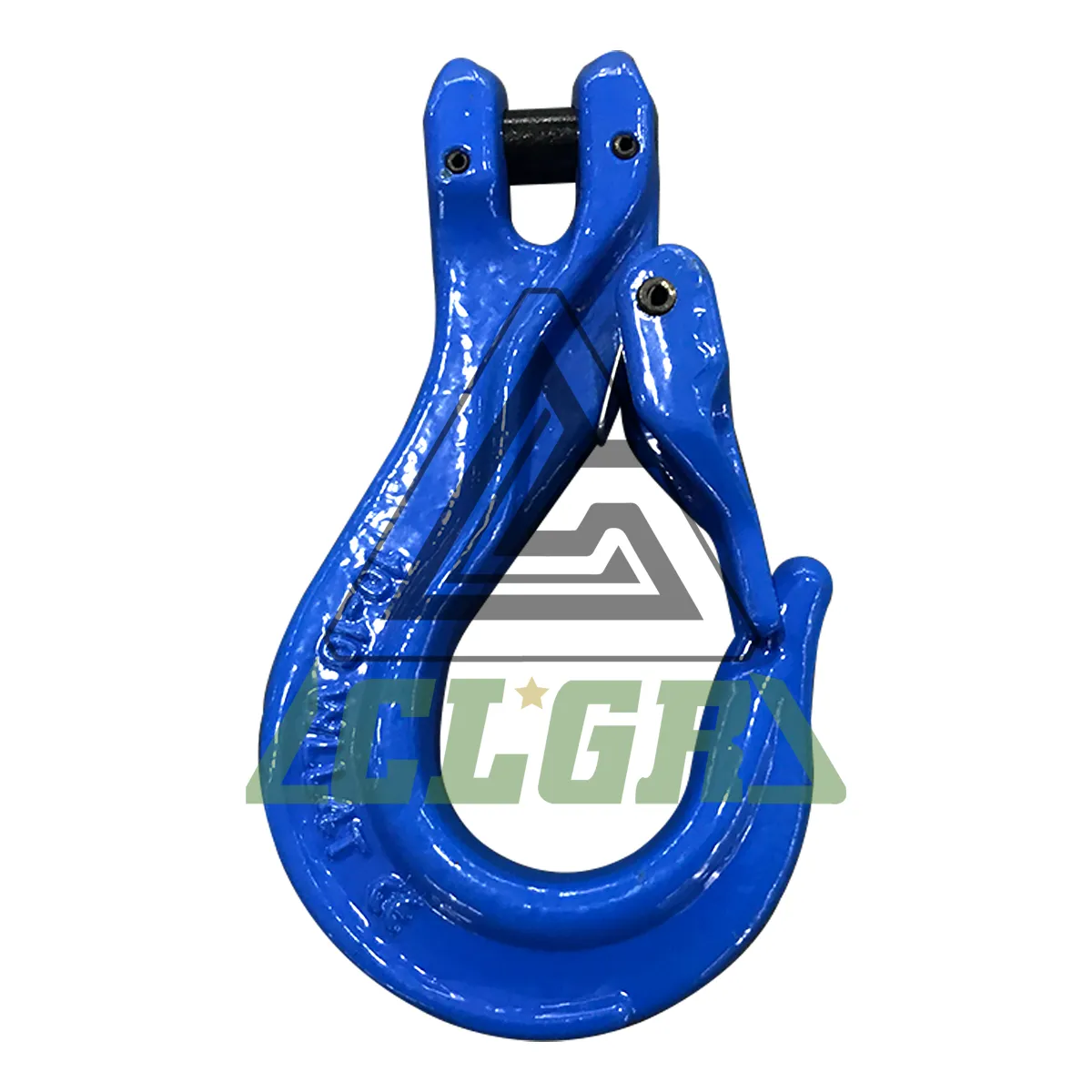

CLGR® G100 Clevis Sling Hook with Latch EGKN

Name: CLGR® G100 Clevis Sling Hook with Latch EGKN
Brand: CLGR®

CLGR® G100 Clevis Sling Hook with Latch EGKN, also called Lifting Clevis Sling Hook Grade 100 with safety latch, G100 Clevis Sling Hook With Safety Latch, Grade 100/G100 Clevis Sling Hook w/ Latch.

The Grade 100 clevis sling hook with safety latch is engineered for heavy‑duty lifting applications and is designed for use with Grade 100 chains. Its wide‑throat design allows easy rigging, while the forged safety latch provides enhanced load security, making it ideal for use with both chain and wire rope slings in industrial environments.

Featuring a wide throat opening, this clevis sling hook accommodates a wide range of attachments and can be easily connected to hoists and cranes. The integrated clevis pin space ensures stable anchoring for large machinery during transport. The safety latch effectively prevents chains from loosening or slipping off the hook, and the alloy‑steel clevis pin delivers a secure connection to help prevent accidents.

These sling hooks are suitable for overhead lifting across a variety of demanding applications.

To Get A Quote >

CLGR® G100 Clevis Sling Hook with Latch EGKN

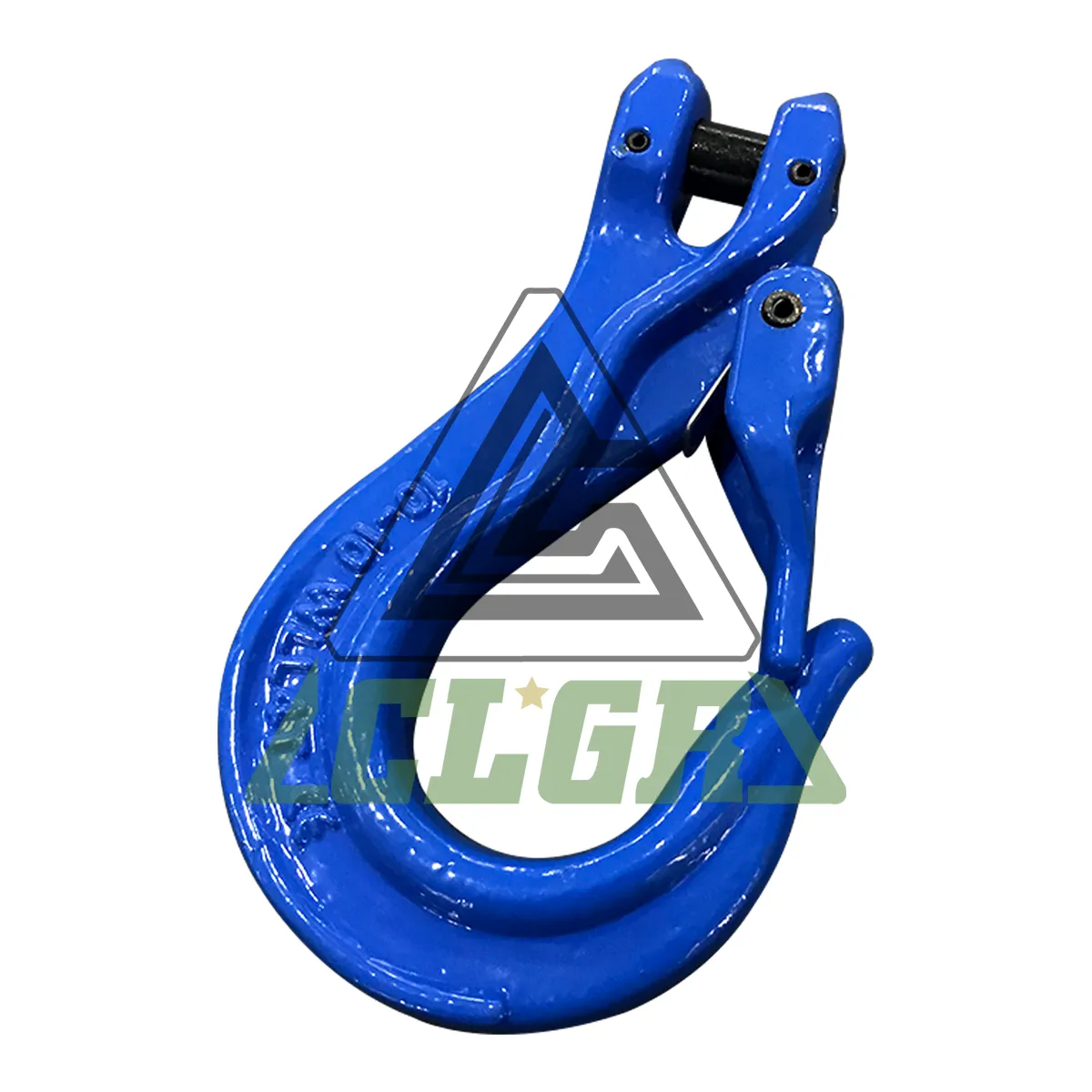

CLGR® G100 Clevis Sling Hook with Latch EGKN China Supplier

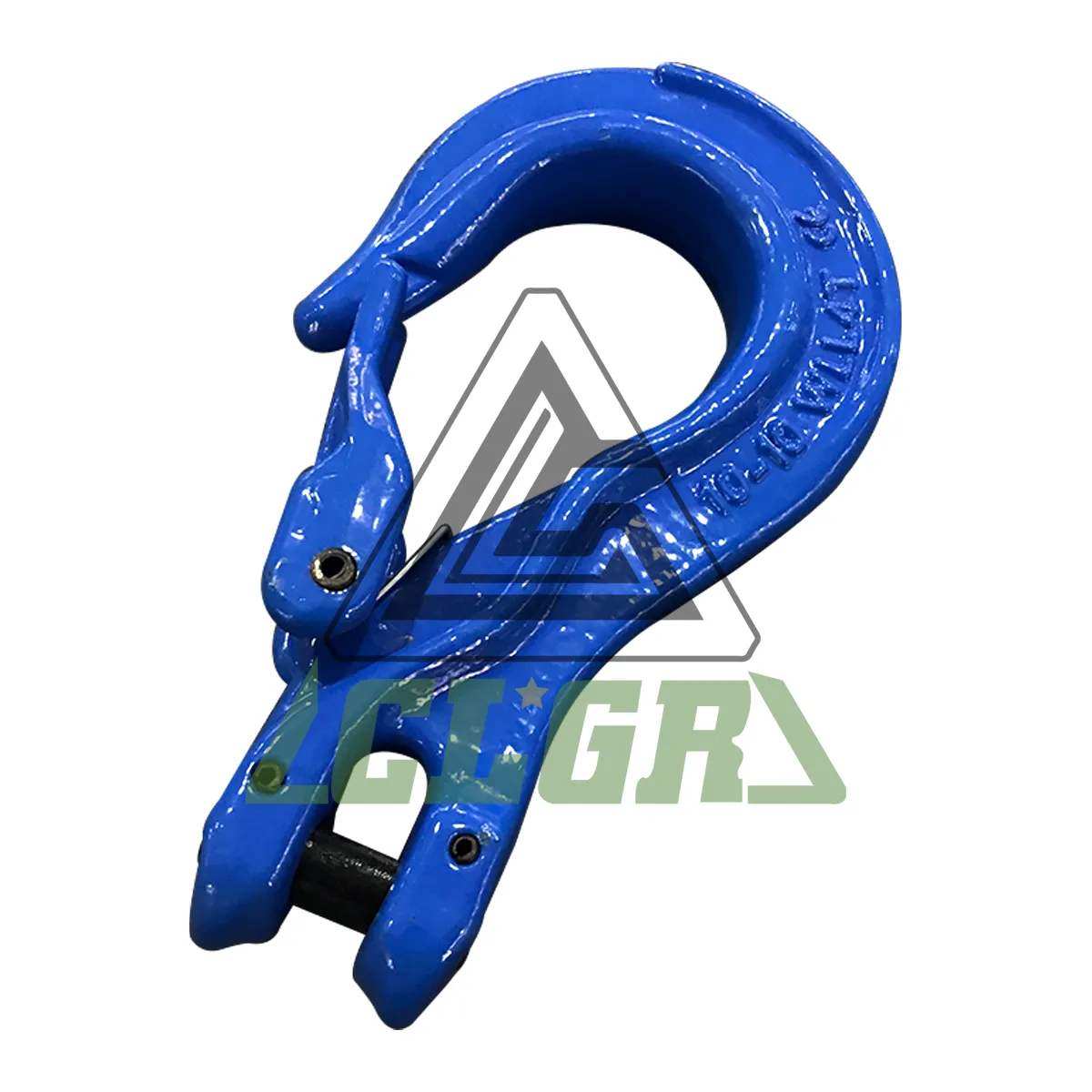

CLGR® G100 Clevis Sling Hook with Latch EGKN China

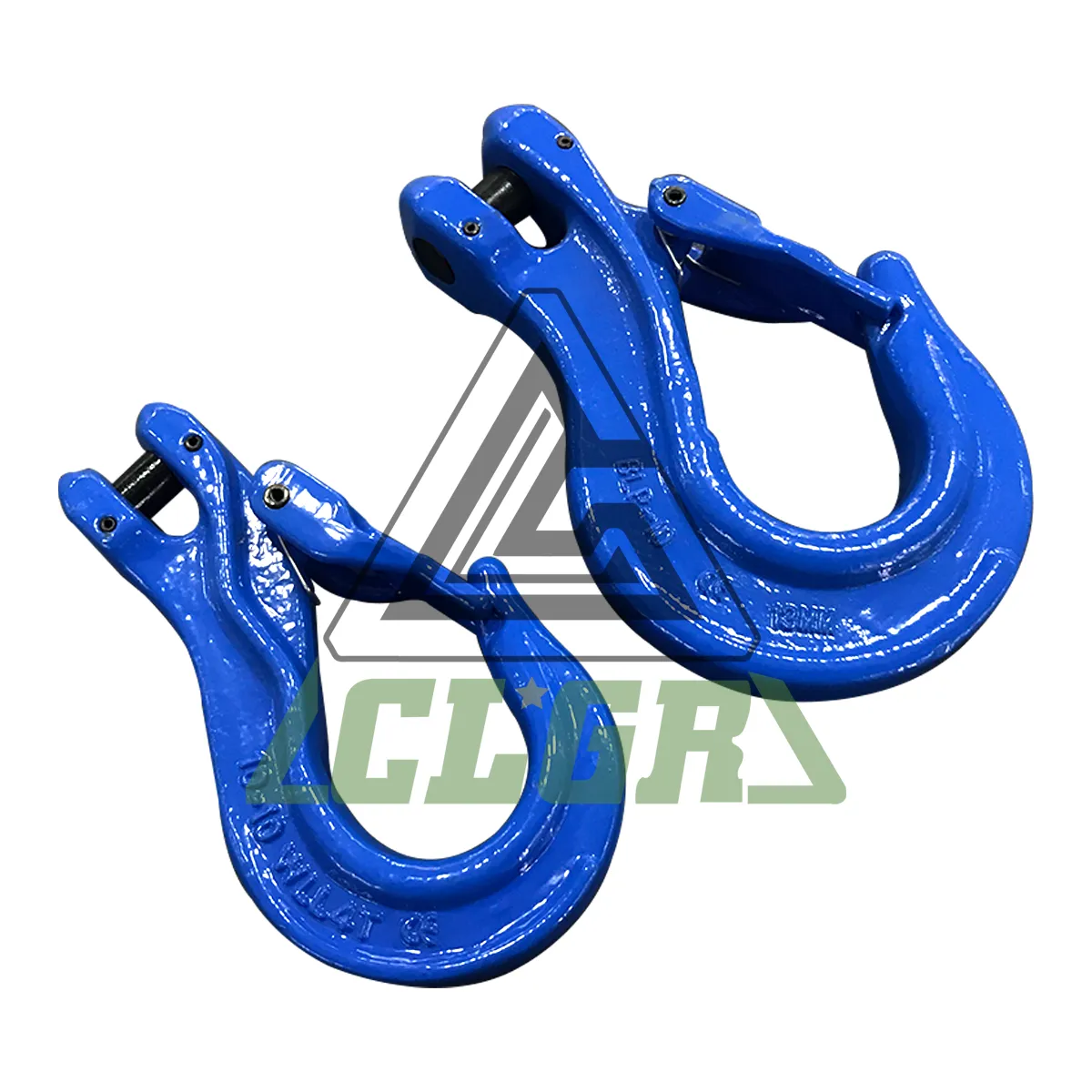

CLGR® G100 Clevis Sling Hook with Latch EGKN China Manufacturer

 

Overview of CLGR® G100 Clevis Sling Hook with Latch EGKN

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder Coated
Size	8mm, 10mm, 13mm
Tips	Color Code: Customized according to customers' requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® G100 Clevis Sling Hook with Latch EGKN

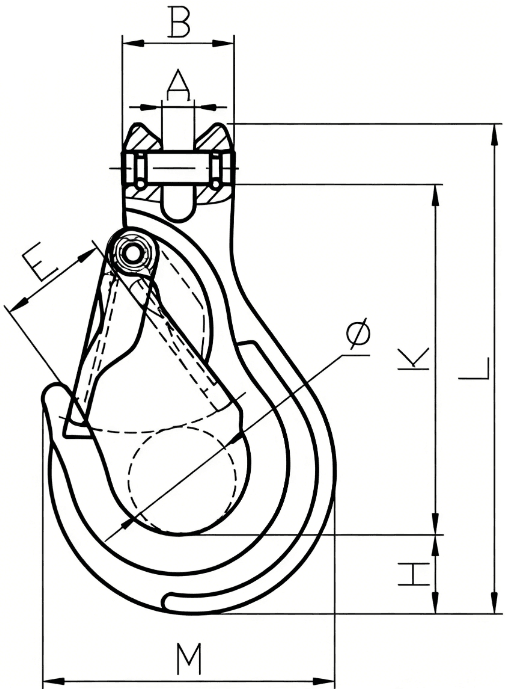

drawing-of-clgr®-g100-clevis-sling-hook-with-latch-egkn-china-supplier

Part No.	WEIGHT /kg	WLL (t)	B.L. (t)	A±0.5	B±1.5	E±2	M±2	H±l	K±2	L±2	φ±2
10CRHEKGN08	0.6	2.5	10	9.5	36	28.5	82	22	101	140	28
10CRHEKGN10	0.96	4	16	12	42	31	97.5	26.7	122	171.5	35
10CRHEKGN13	1.81	6.7	26.8	15	54	40	135	36	137	202	36
