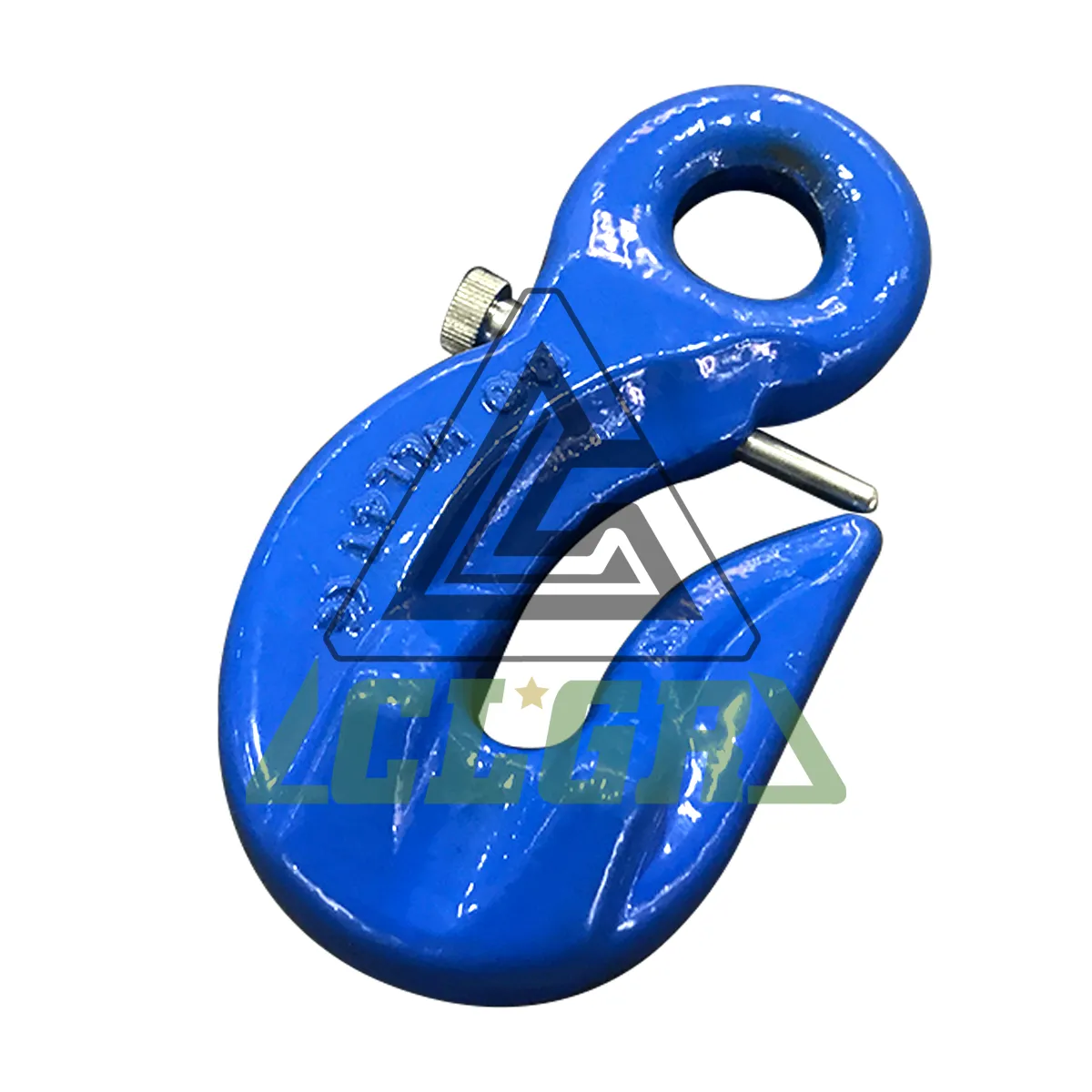

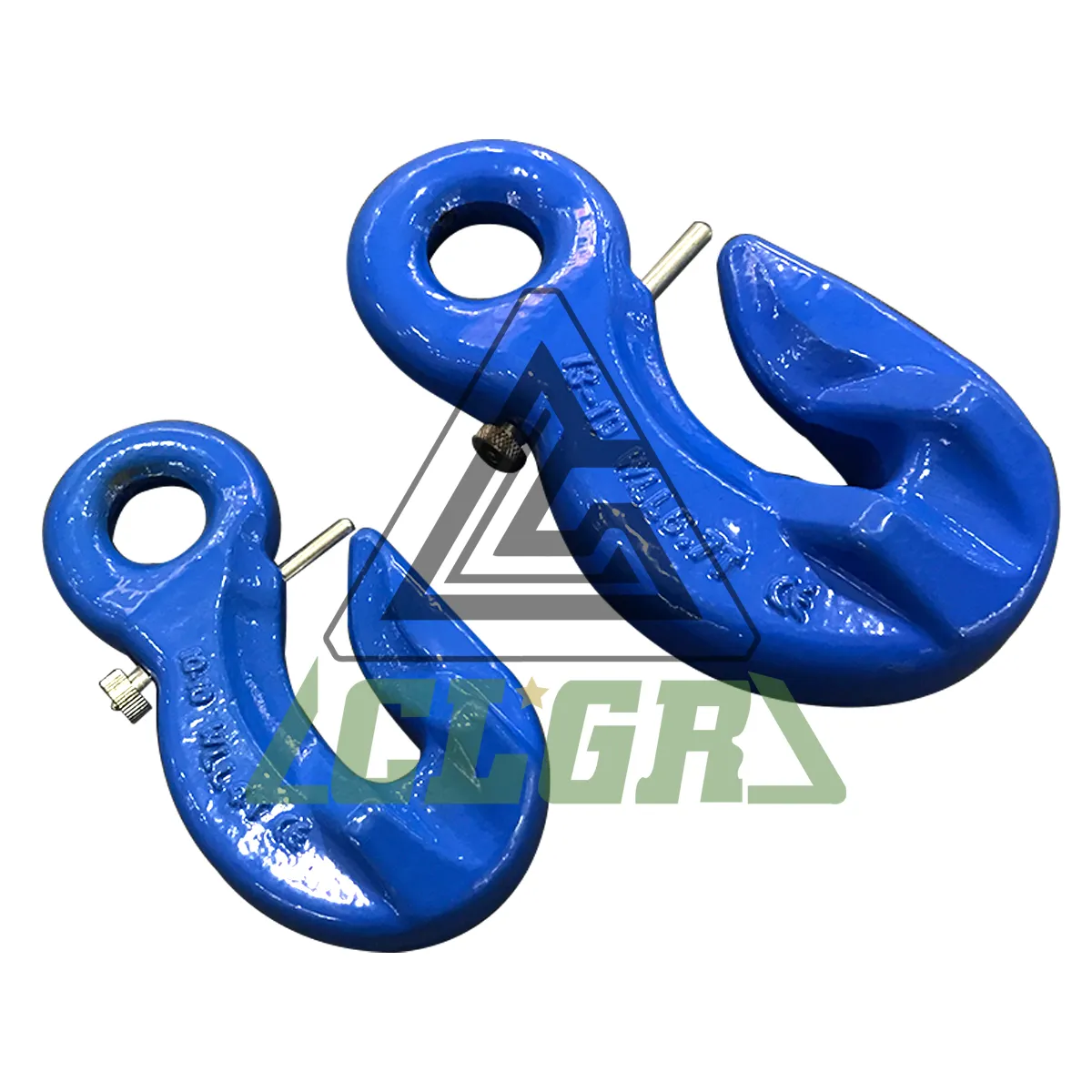

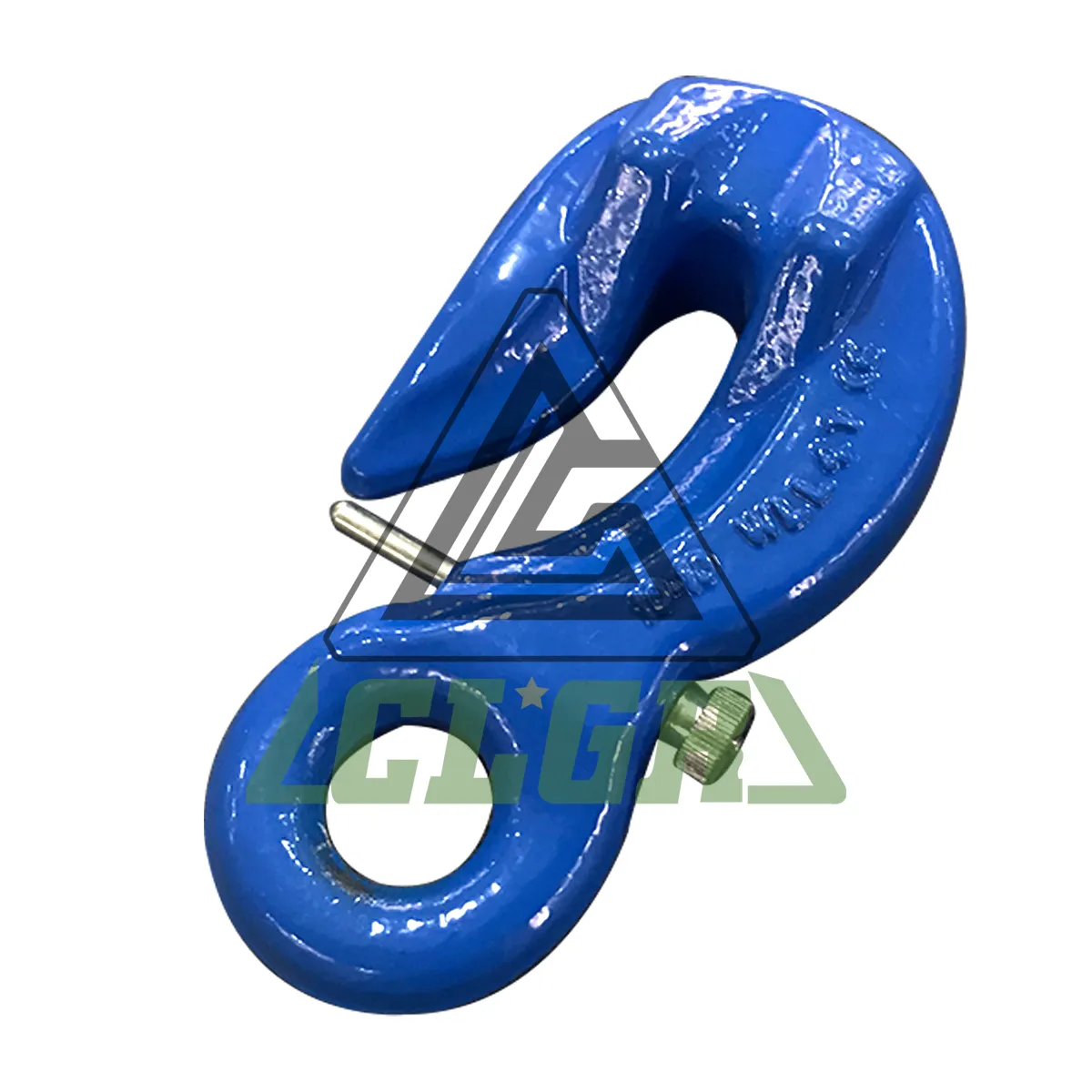

CLGR® Grade 100 Eye Grab Hook with Safety Pin, also known as Grade 100 Eye Grab Hook with Locking Pin, G100 Eye Grab Hook with Bolt and Cotter Pin, G100 Eye Shortening Grab Hook with Safety Pin, Grade 100 Special Eye Grab Hook with Safety Pin, and Lifting Eye Grab Hook with Safety Pin.
This g100 eye grab hook is equipped with a spring-loaded locking pin designed for secure load lashing. The pin securely retains the chain, preventing any accidental release during operation.
The eye grab hook can accommodate pins, shackles, other hooks, or directly connect wire rope loops. This eye design provides greater freedom of connection, not limited to connecting chains, but can also be easily connected to various end fittings such as lifting belts and wire ropes.
The Grade 100 Eye Grab Hook can be easily mounted using a connecting link, is designed to enhance safety and stability, enabling quick and damage-free movement and storage of various loads.
| Brand | CLGR® |
Standard | EN1677 |
Material | Super Alloy Steel |
Safety Factor | 4: 1 |
Processing | Forged / Quenched and Tempered |
Finish | Powder Coated |
Size | 8mm, 10mm, 13mm |
Tips | Color Code: Customized according to customers’ requirements |
Note | Use Only Grade 100 Attachments For Overhead Lifting |

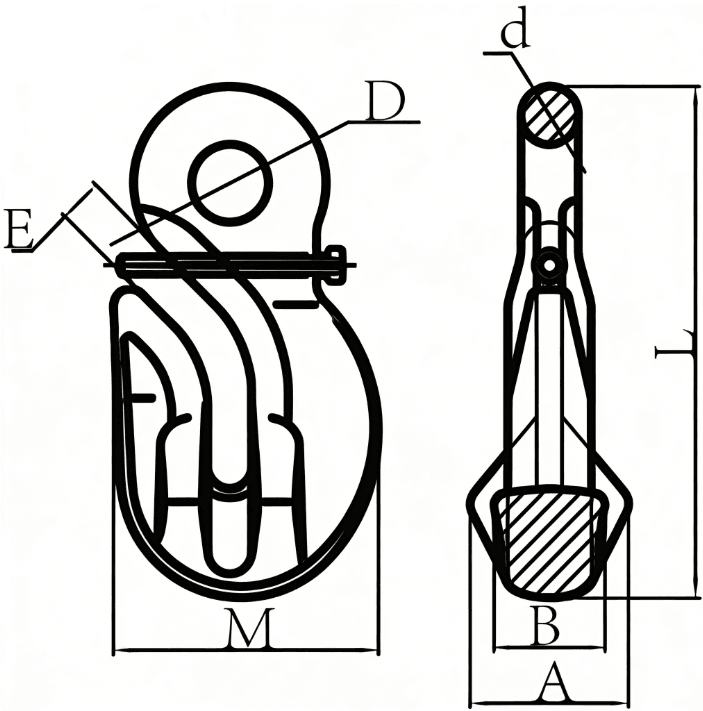

Part No. | Weight (kg) | W.L.L. (t) | B.L. (t) | A±1 | B±0.8 | d±0.5 | D±0.5 | E±0.5 | L±2 |
10CREGHSP08 | 0.5 | 2.5 | 10 | 35 | 25 | 12 | 16.5 | 10.5 | 110 |
10CREGHSP10 | 1.0 | 4 | 16 | 64 | 32 | 15 | 21 | 14 | 136.5 |
10CREGHSP13 | 2.2 | 6.7 | 26.8 | 57 | 40 | 20.5 | 27.5 | 15.5 | 180 |
