CLGR® Grade 100 Clevis Grab Hook with Safety Pin, also known as G100 Special Clevis Grab Hook with Safety Pin, G100 Clevis Shortening Grab Hook with Safety Pin, Lifting Clevis Grab Hook with Safety Pin, and Loc Pin Grab Hook.
This g100 clevis grab hook is equipped with a spring-loaded locking pin designed for secure load lashing. The pin securely retains the chain, preventing any accidental release during operation.
The grab hooks come with supporting lugs to allow no reduction of the working load limit, also equipped with a spring-loaded safety pin.The clevis is designed for easy connection of chain.
This clevis shortening hook, which can be easily mounted using a connecting link, is designed to enhance safety and stability, enabling quick and damage-free movement and storage of various loads.
| Brand | CLGR® |
Standard | EN1677 |
Material | Superior Alloy Steel |
Safety Factor | 4: 1 |
Processing | Forged / Quenched and Tempered |
Finish | Powder Coated |
Size | 8mm, 10mm, 13mm |
Tips | Color Code: Customized according to customers’ requirements |
Note | Use Only Grade 100 Attachments For Overhead Lifting |

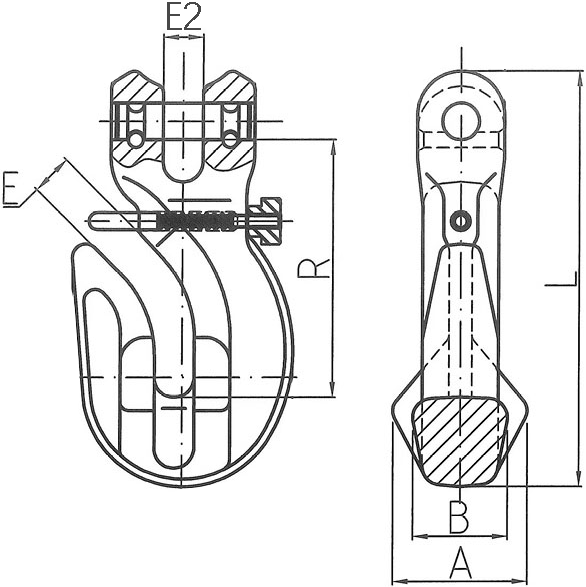

Part No. | Weight (kg) | W.L.L. (t) | B.L. (t) | A±1 | B±0.8 | R±0.5 | E2±0.5 | E±0.5 | L±3 |
10CRCGHSP08 | 0.5 | 2.5 | 10 | 35 | 25 | 12 | 16.5 | 10.5 | 110 |
10CRCGHSP10 | 1.0 | 4 | 16 | 64 | 32 | 15 | 21 | 14 | 136.5 |
10CRCGHSP13 | 2.2 | 6.7 | 26.8 | 57 | 40 | 20.5 | 27.5 | 15.5 | 180 |
