CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK

Name: CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK
Brand: CLGR®

CLGR® G100 Clevis Self Locking Hook with Grip Latch GBK, also known as G100 Clevis Self Locking Safety Hook with Grip Latch GBK, G100 Clevis Safety Hook GBK.

This safety hook is equipped with a grip latch to withstand abnormal side loads and features a notched tip to prevent hook damage. Designed to integrate multiple functions for simplified sling assembly with fewer components, it complies with AS 3776 and delivers 25% higher strength compared to Grade 80 hooks.

To ensure ultimate reliability, every workpiece undergoes a 2.5x working load limit test and 100% magnetic particle inspection. Additionally, we perform batch-level breakage testing and rigorous sampling for 20,000-cycle fatigue tests, while guaranteeing uniform hardness across all pins through full hardness verification.

To Get A Quote >

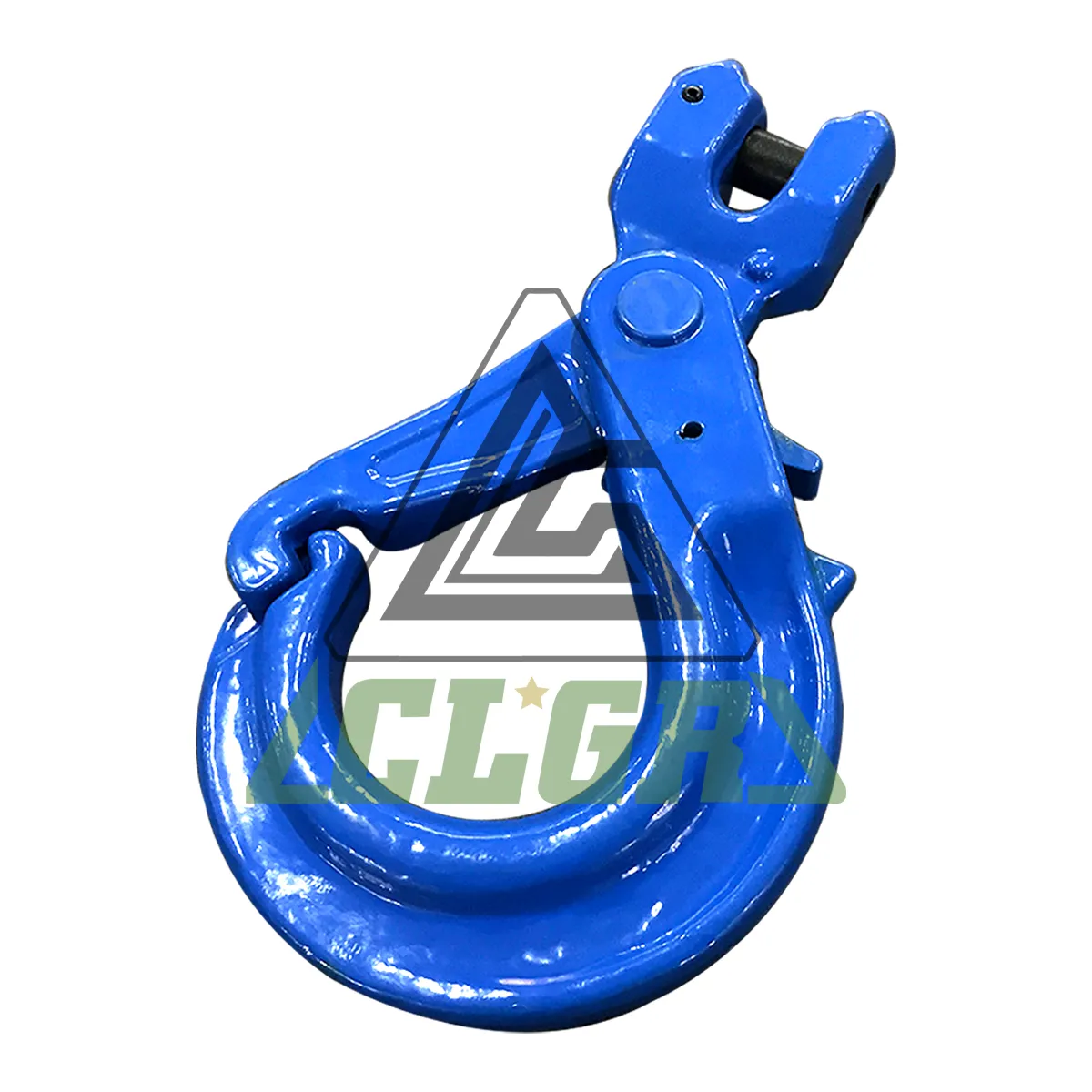

CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK

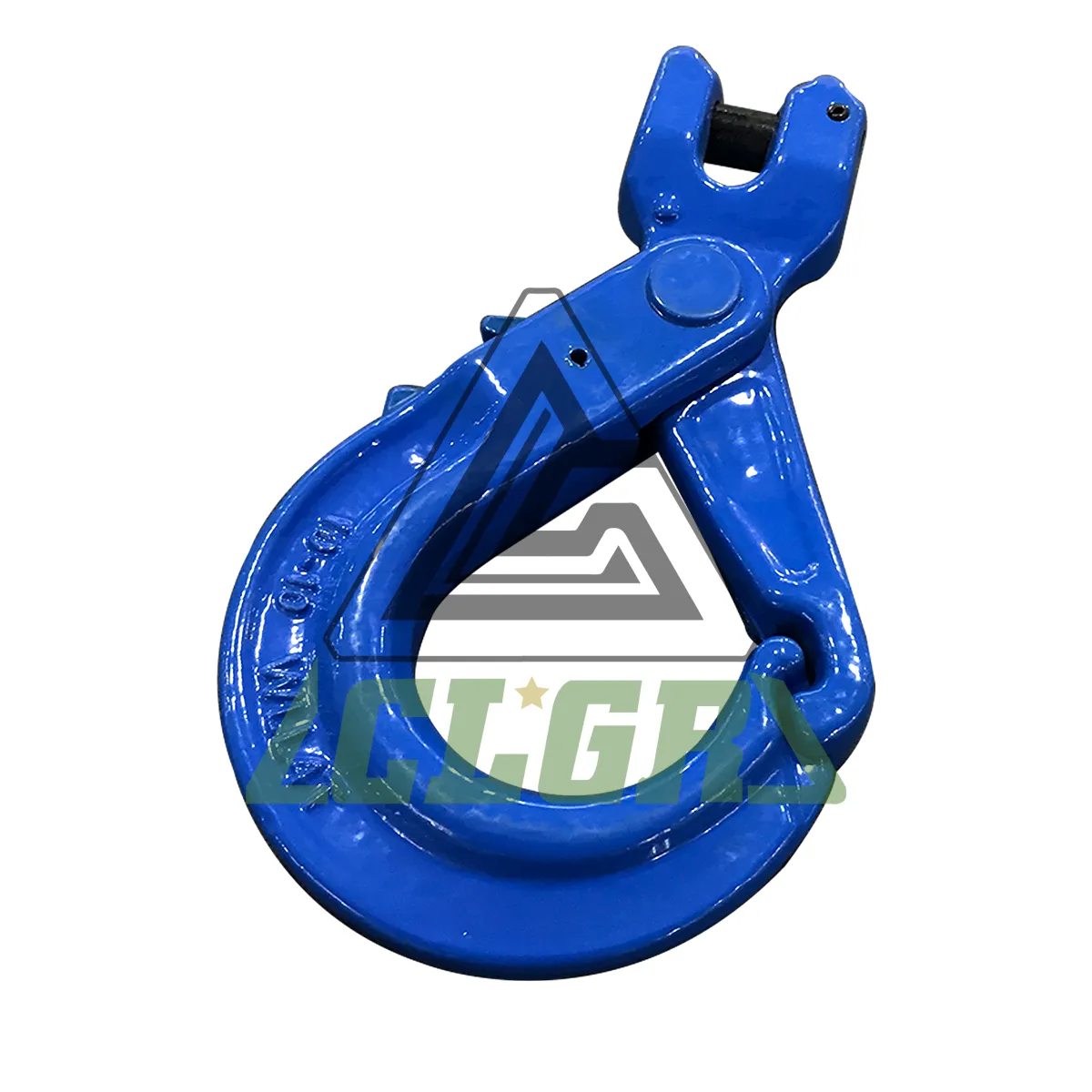

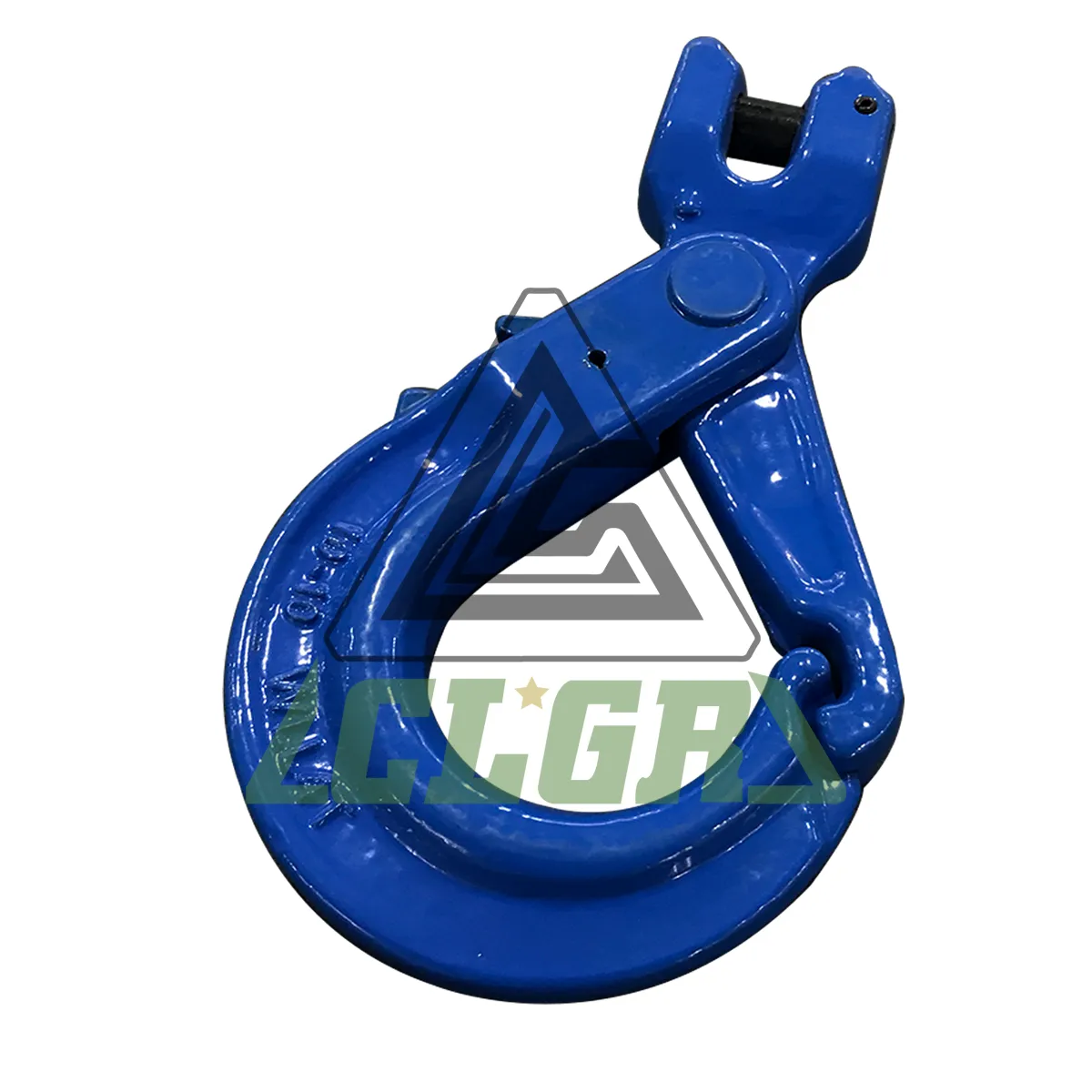

CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK China Supplier

China Supplier CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK

China Wholesale CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK

 

Overview of CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK

Brand	CLGR®
Technical Notes	EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015.
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder Coated
Size	8mm, 10mm, 13mm, 16mm
Tips	Color Code: Customized according to customers’ requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® G100 Clevis Self Locking Safety Hook with Grip Latch GBK

drawing-of-clgr®-g100-clevis-self-locking-safety-hook-with-grip-latch-gbk

Part No.	Weight/kg	WLL(t)	B.L. (t)	A±0.5	B±1,5	E±2	φ±1,5	H±l	K±3	L±3
10CRCHGBK08	0.75	2.5	10	9.5	37.5	35	45	21	118	165
10CRCHGBK10	1.42	4	16	12.5	47.5	46	56	30.5	150	204
10CRCHGBK13	2.56	6.7	26.8	15	52	56	64	39	176	244
10CRCHGBK16	4.21	10	40	18.5	68	86	80	45	250	288
