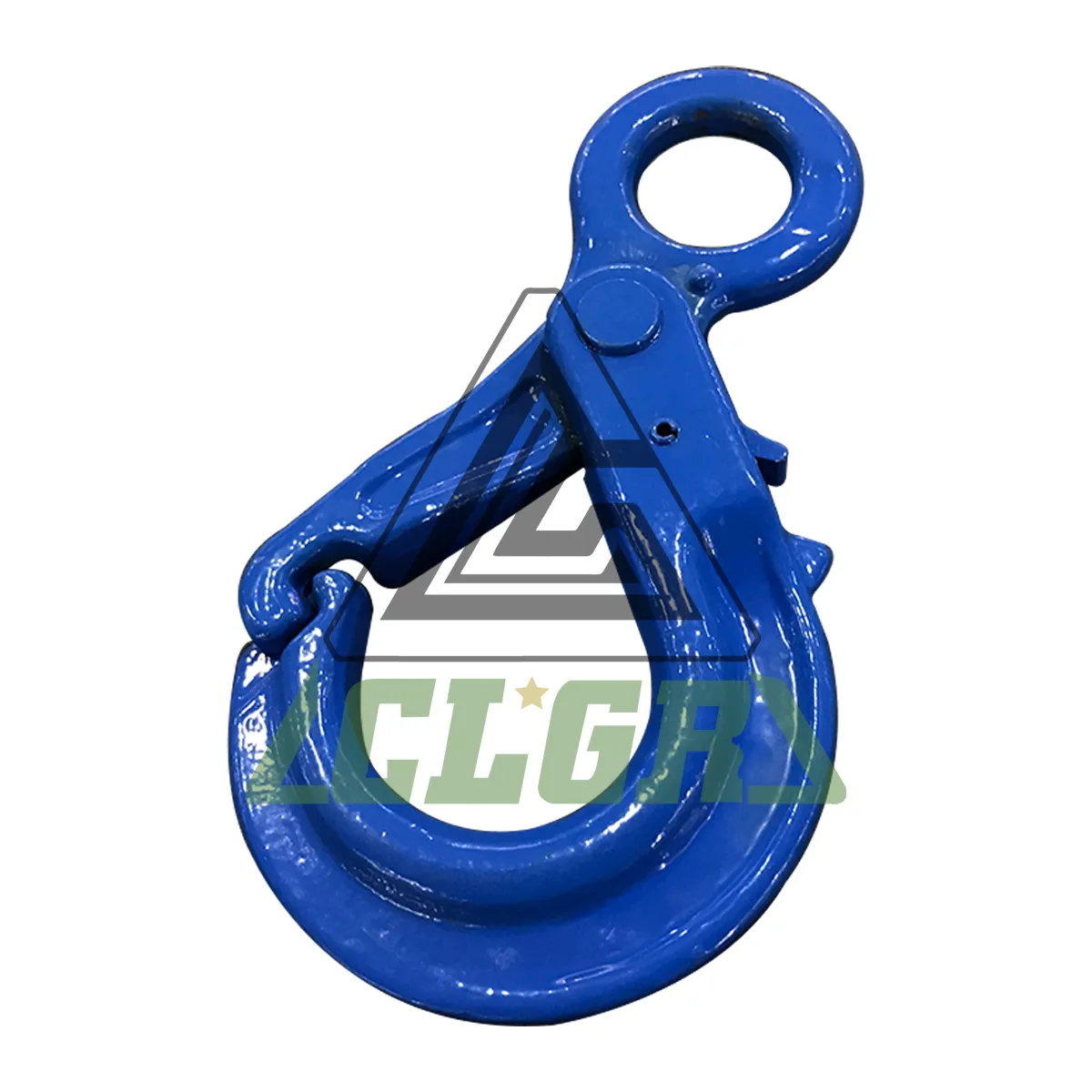

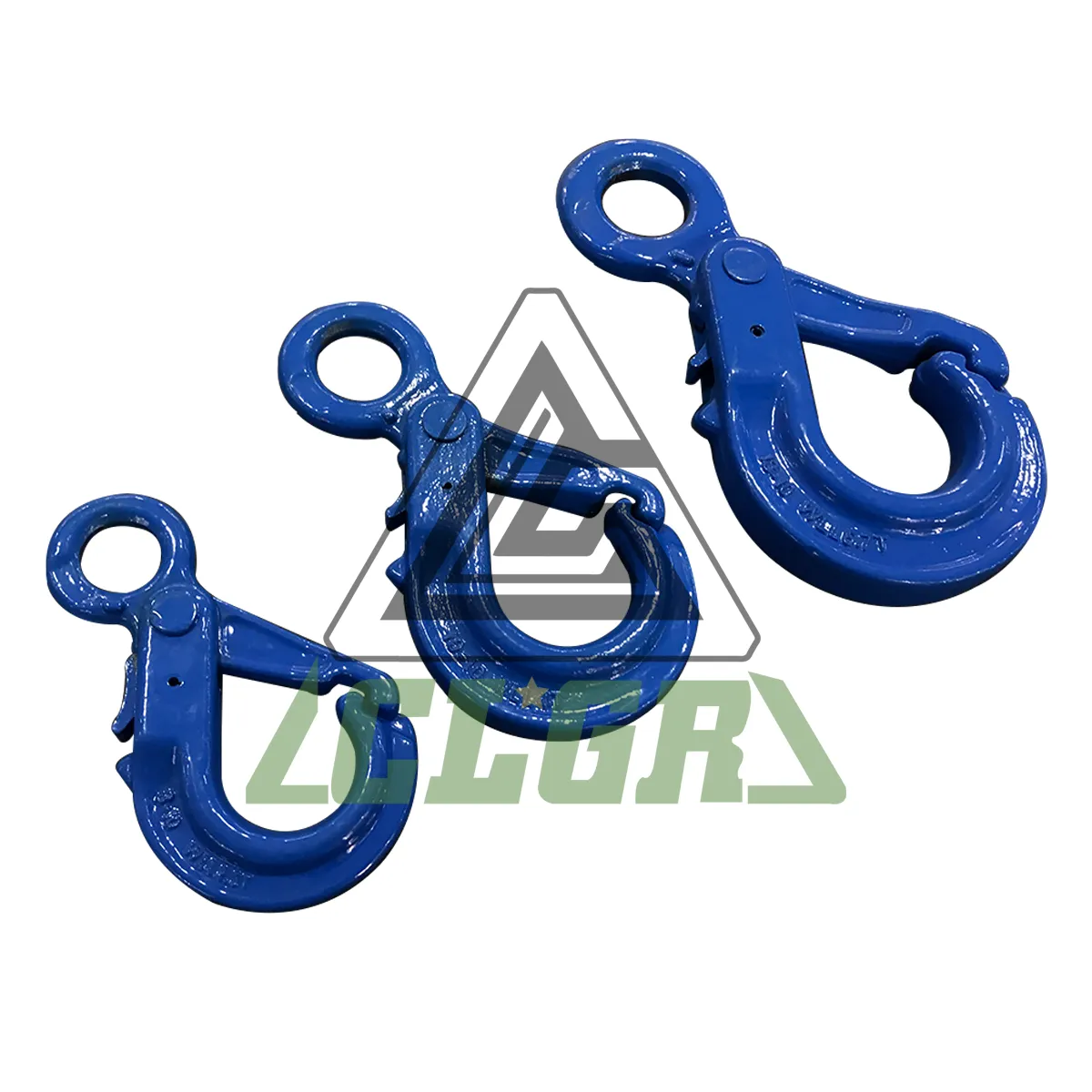

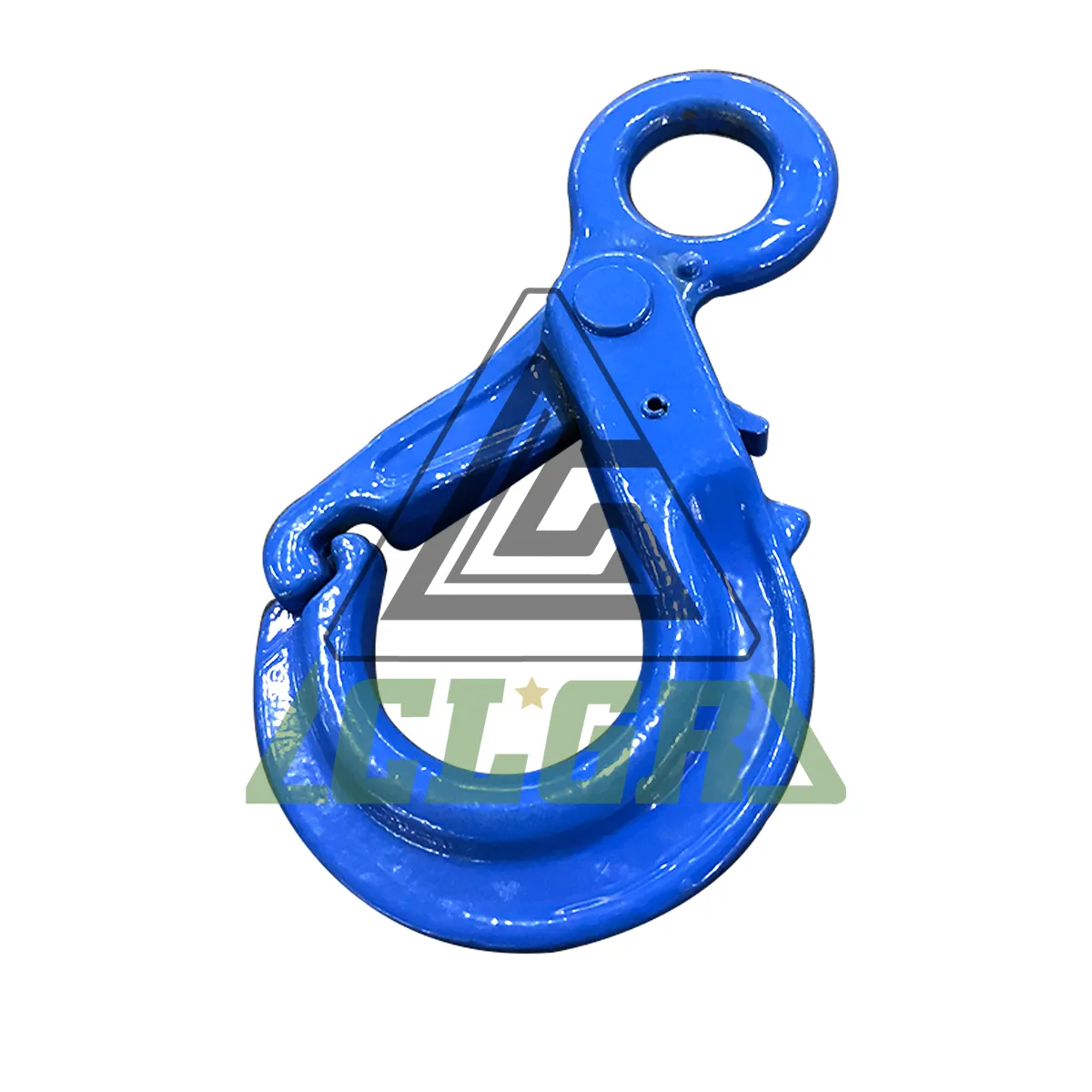

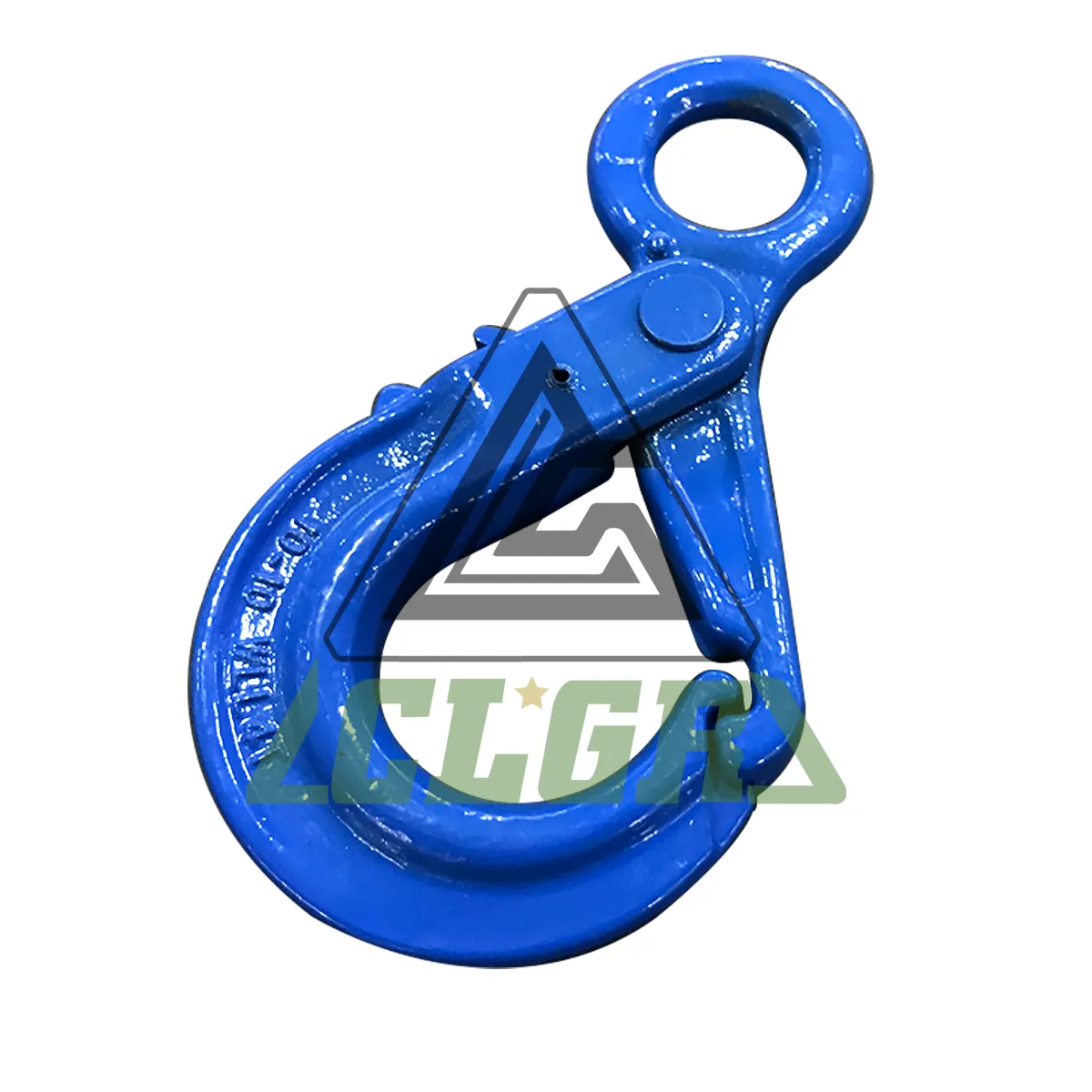

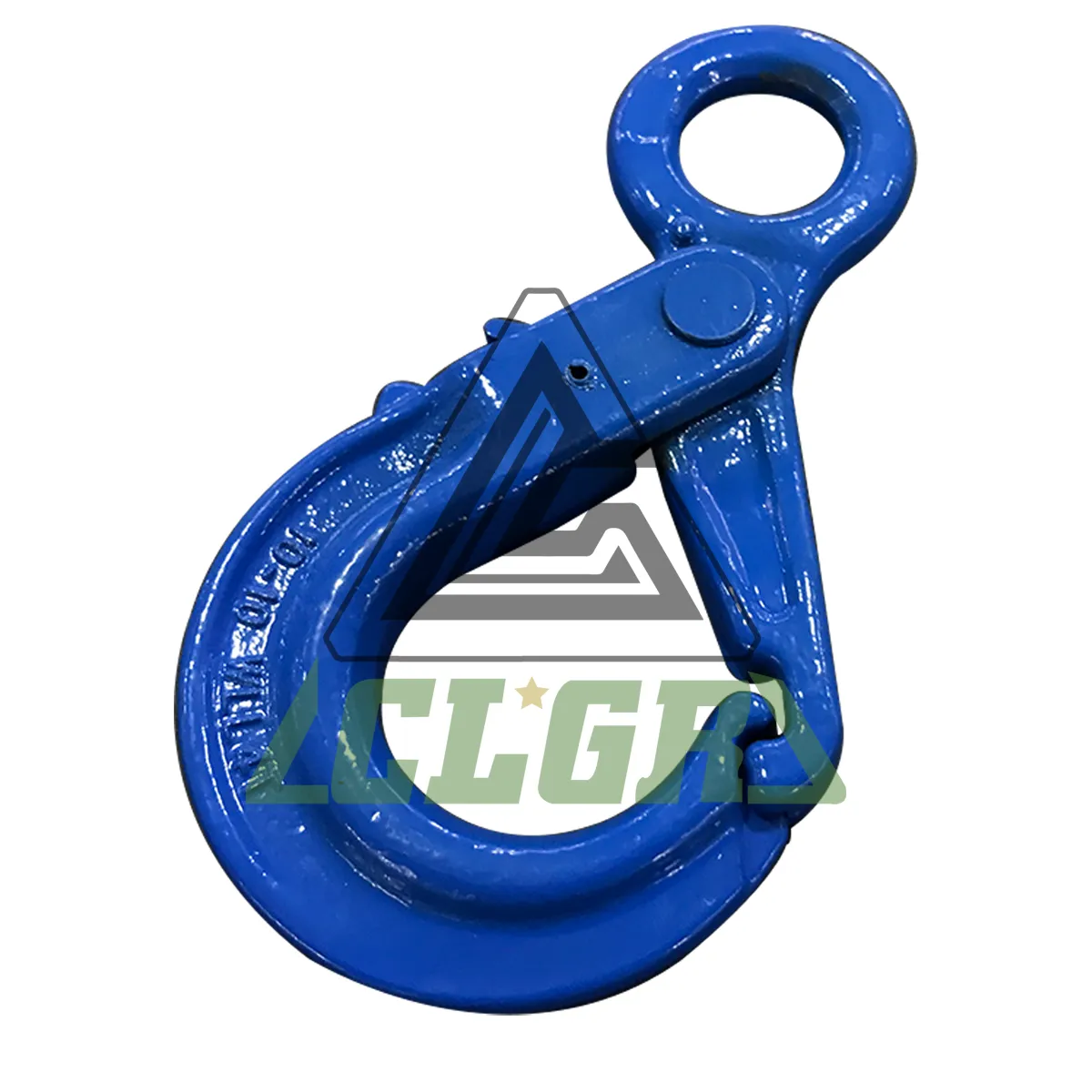

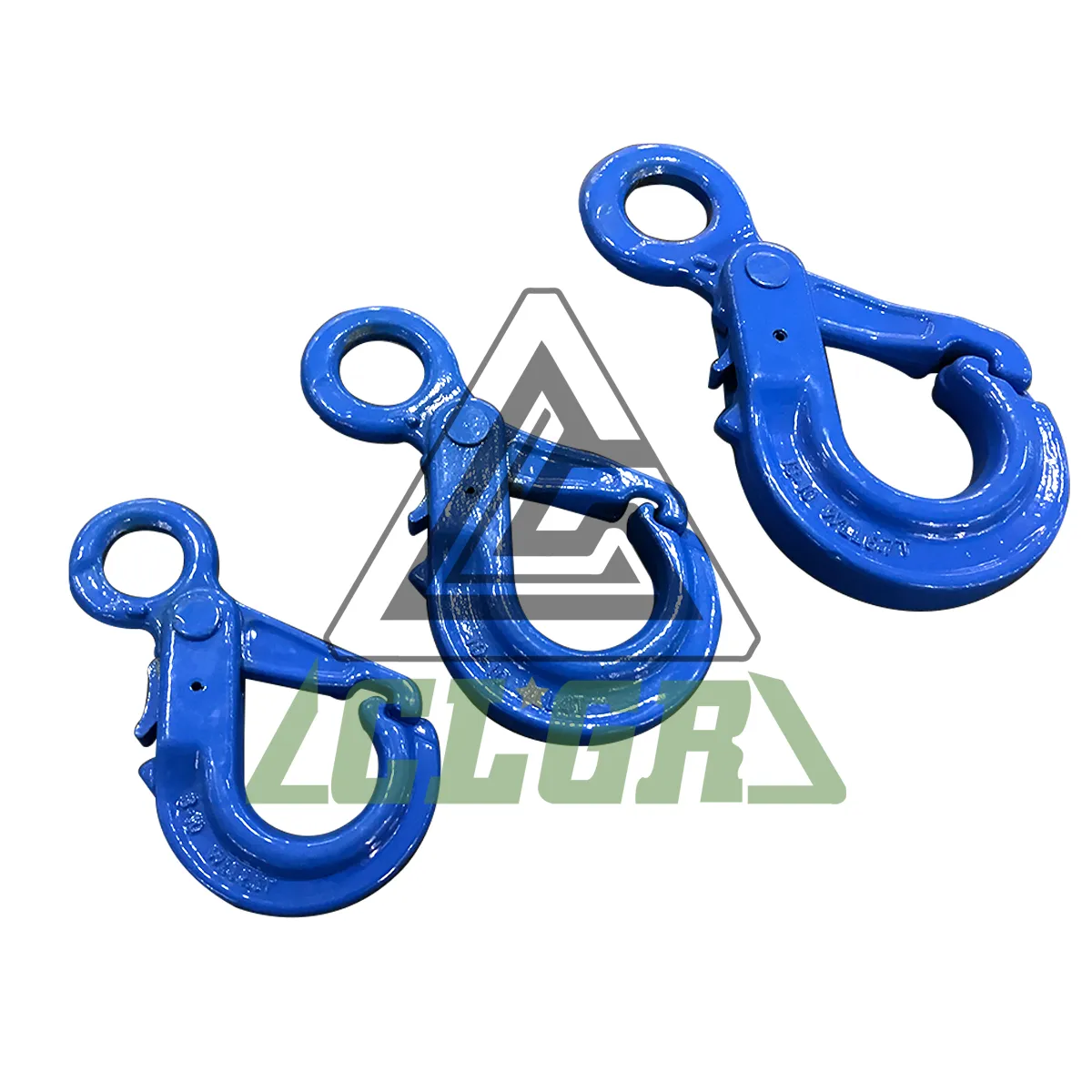

CLGR® G100 Eye Self Locking Hook with Grip Latch OBK

Name: CLGR® G100 Eye Self Locking Hook with Grip Latch OBK
Brand: CLGR®

CLGR® G100 Eye Self Locking Hook with Grip Latch OBK, also known as Grade 10 Safety Hook, Eye Type Self-Locking Hooks OBK, OBK with Grip Latch (Eye Type).

The G100 Self-Locking Safety Hook is forged from high-strength quenched and tempered alloy steel, it meets rigorous G100 specifications, offering superior strength to demanding applications.

Its self-locking mechanism remains open for easy rigging and locks securely the moment load is applied, preventing accidental release.This hook ensures compliance with ASME B30.10 and EN 1677-4 standards.

Each hook features permanent heat-number traceability for guaranteed quality and safety in industrial, construction, and heavy rigging applications.

To Get A Quote >

CLGR® G100 Eye Self Locking Hook with Grip Latch OBK

CLGR® G100 Eye Self Locking Hook with Grip Latch OBK China Supplier

CLGR® G100 Eye Self Locking Hook with Grip Latch OBK China Manufacturer

CLGR® G100 Eye Self Locking Hook with Grip Latch OBK China Factory

 

Overview of CLGR® G100 Eye Self Locking Hook with Grip Latch OBK

Brand	CLGR®
Standard	EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015.
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered.
Finish	Powder Coated
Size	8mm, 10mm, 13mm, 16mm
Tips	Color Code: Customized according to customers' requirements
Note	Use Only Grade 100 Attachments For Overhead Lifting

Specifications of CLGR® G100 Eye Self Locking Hook with Grip Latch OBK

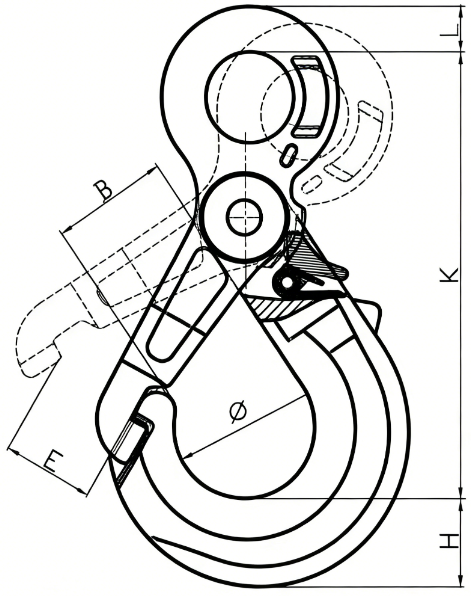

drawing-of-clgr®-g100-eye-self-locking-hook-with-grip-latch-obk-china-supplier

Part No.	Weight Kg	WLL (t)	B.L. (t)	B±0,5	E±1	φ± 1	φ’±1	H±1	K±2	L±1
10CREHOBK8	0.81	2.5	10	37.5	35	45	27	21	138	12
10CREHOBK10	1.41	4	16	47.5	46	56	34.5	30.5	169	15
10CREHOBK13	2.61	6.7	26.8	52	56	64	40	39	205	20
10CREHOBK16	4.45	10	40	69	86	80	50	46.3	252	27

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
