CLGR® G100 Clevis Forest Hook

Name: CLGR® G100 Clevis Forest Hook
Brand: CLGR®

CLGR® G100 Clevis Forest Hook, also known as Grade 100 Chain Choker With Clevis Forest Hook, Clevis Forest Hook For Logging G100, Logging Chain Choker Hook G100, Clevis Hook Forest Type.

This G100 Clevis Forest Hook is quenched and tempered to deliver superior strength, offering a working load limit (WLL) at least 25% higher than traditional G80 products. Each batch is proof load tested at 2.5 times the WLL, with corresponding certification provided, and is engineered with a 4:1 safety factor to ensure reliability in heavy-duty industrial lifting operations.

Featuring a wide-opening clevis design with a forest pattern, this Clevis Forest Hook accommodates thicker chains or straps and is commonly used in forestry, construction, and transportation for securing and lifting heavy loads.

To Get A Quote >

CLGR® G100 Clevis Forest Hook China Supplier

CLGR® G100 Clevis Forest Hook China Manufacturer

China Wholesale CLGR® G100 Clevis Forest Hook

 

Overview of CLGR® G100 Clevis Forest Hook

Brand	CLGR®
Standard	EN 1677-4
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Forged / Quenched and Tempered
Finish	Powder Coated
Size	8mm, 13mm
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® G100 Clevis Forest Hook

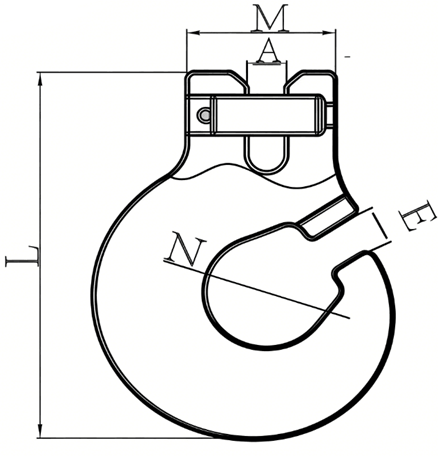

drawing-clgr®-g100-clevis-forest-hook-china-supplier

Part No.	Weight (kg)	WLL(t)	Breaking load (t)	A±0.5(mm)	M±0.8(mm)	N±0.5(mm)	E±0.5(mm)	L±0.5(mm)
10CRCFH8	0.39	2.5	10	9.5	35	24	9.8	95.5
10CRCFH13	1.62	6.7	26.8	16	59	49.5	16	162
