CLGR® G100 Eye Safety Hook, also referred to as G100 Eye Self Locking Hook, G100 Eye Hook with Positive Locking Latch, Grade 100 Eye Type Self Locking Sling Hook and Safety cargo hook.
It is made from superior alloy steel that's heat-treated for extra durability.
The hook will not open until the trigger at the back is pressed.
This Eye Safety Hook features a convenient eye design that makes it easy to connect to all kinds of lifting gear - ropes, straps, cables and chains.
The Self-Locking hook automatically close and lock under load.
G100 alloy safety hook is approved for overhead lifting.
Brand | CLGR® |
Size | 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm |
Standard | European Type |
Material | Superior Alloy Steel |
Safety Factor | 4: 1 |
Processing | Forged / Heat Treatment |
Surface Finish | Powder Coated |
Important Note | Using with Grade 100 alloy chain or wire rope for overhead lifting |

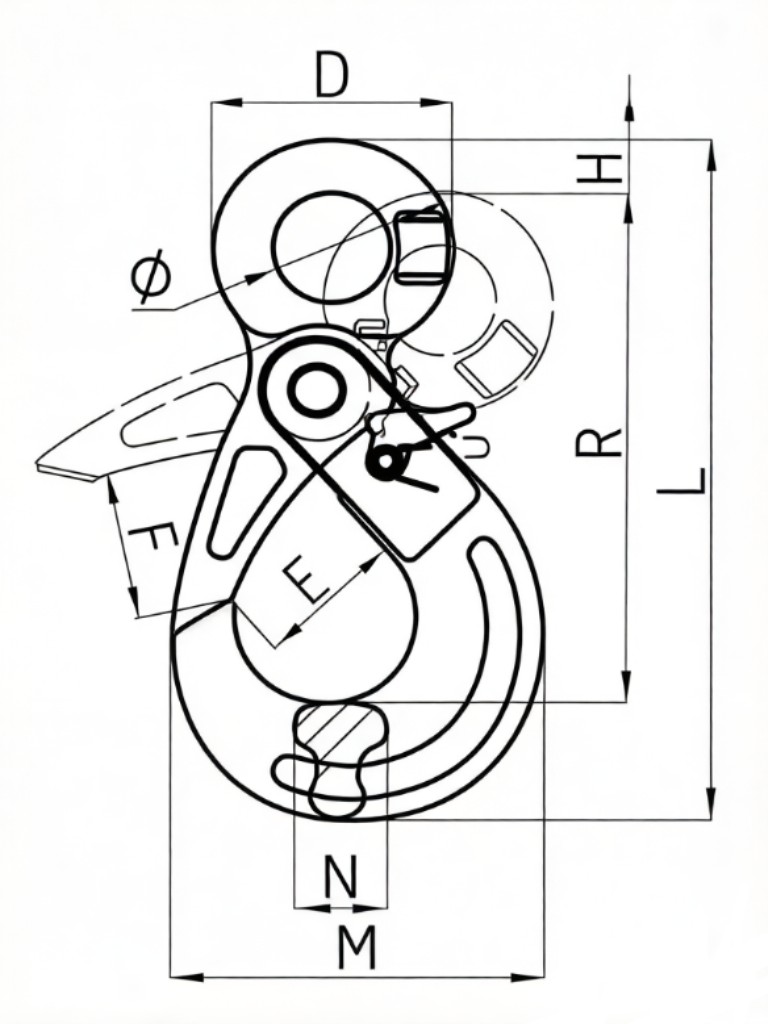

Part No. | Weight (kg) | W.L.L. (t) | B.L. (t) | A | D±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
D10CRESH06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 28 | 20 | 110 | 70 | 141 |
D10CRESH08 | 0.9 | 2.5 | 10 | 27 | 51 | 35.5 | 26 | 137 | 90 | 175 |
D10CRESH10 | 1.5 | 4 | 16 | 34.5 | 64.3 | 45 | 30 | 169 | 108 | 212.5 |
D10CRESH13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.5 | 40.5 | 209 | 138.5 | 270 |
D10CRESH16 | 5.7 | 10 | 40 | 50 | 104 | 62 | 50.5 | 254 | 170.5 | 331 |
D10CRESH20 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 62 | 277 | 192.5 | 369 |
D10CRESH22 | 11.2 | 19 | 76 | 70 | 134 | 80 | 66 | 319.5 | 205 | 417 |
