CLGR® Grade 100 Omega Link

Name: CLGR® Grade 100 Omega Link
Brand: CLGR®

CLGR® Grade 100 Omega Link, also known as G100 Clevis Pear Links, G100 Clevis Omega Link, Omega Link for Lifting Chain, Container Lifting Ring for Complex Loads.

The CLGR® Grade 100 Omega Link is crafted from forged alloy steel, undergone quenched & tempered treatment to deliver exceptional performance—boasting 25% higher strength than Grade 80 chain. It features a plasticized powder-coated self-colour gloss finish for enhanced durability and aesthetics, while all load pins are subjected to 100% individual inspection, testing, and magnaflux crack detection to ensure utmost safety and reliability in heavy-duty lifting applications.

The Grade 100 Omega Link is a critical rigging component designed to provide a secure and efficient connection between lifting chains and other hardware.

Engineered for demanding applications across construction, manufacturing, and oil and gas industries, it ensures both safety and ease of use in the most challenging industrial environments.

To Get A Quote >

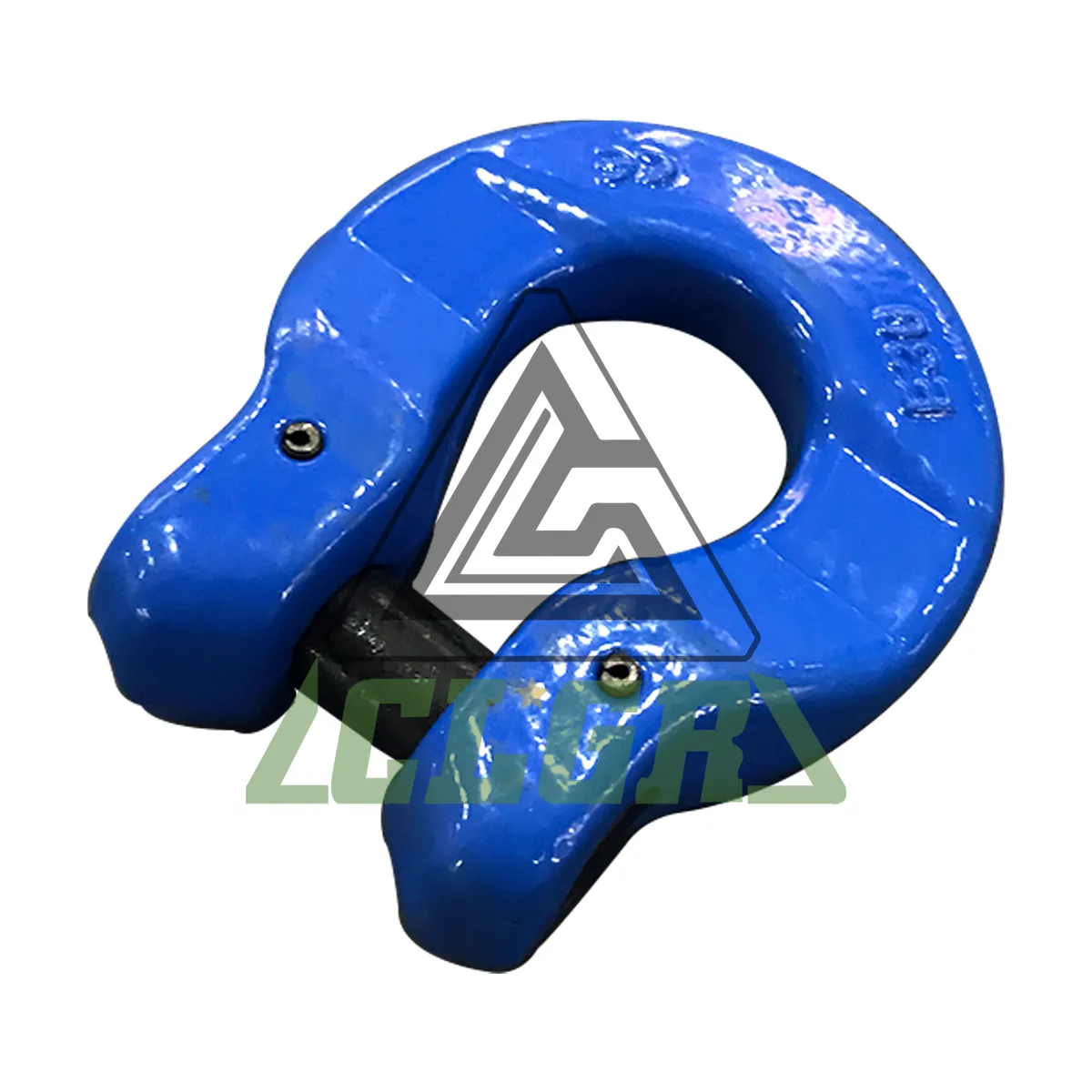

CLGR® Grade 100 Omega Link China Factory

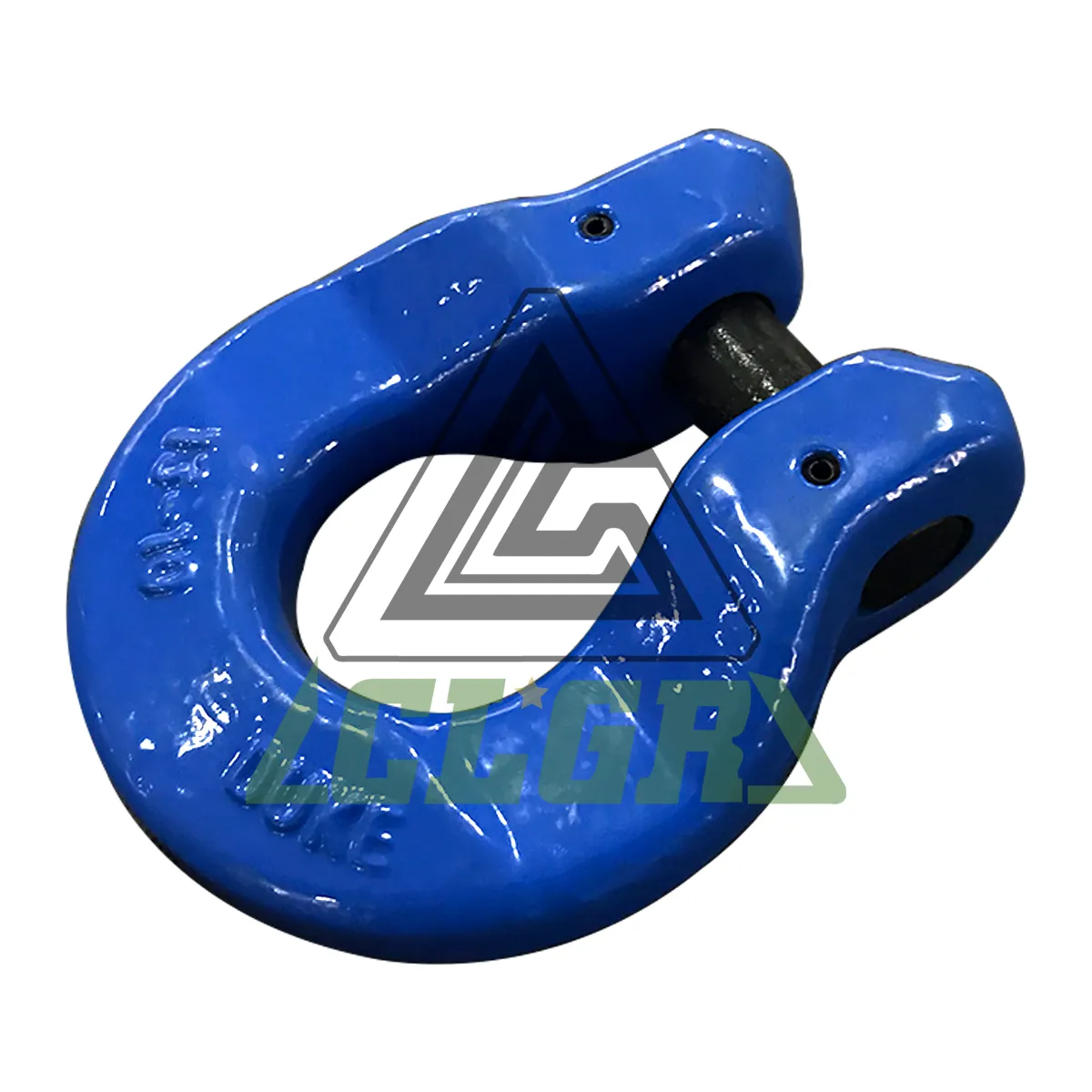

CLGR® Grade 100 Omega Link China Supplier

 

Overview of CLGR® Grade 100 Omega Link

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Safety Factor	Ultimate load is 4 times the Working Load Limit
Processing	Drop Forged+Quenched and Tempered Pressing flat only on request
Finish	Powder Coated
Size of Rope	6mm, 8mm, 10mm, 13mm, 16mm
Tips	Color Code: Customized according to customers' requirements

Specifications of CLGR® Grade 100 Omega Link

drawing-of-clgr®-grade-100-omega-link-china-supplier

Part No.	WEIGHT (KG)	WLL (T)	B.L (T)	A±1	B±2	E±1.5	M±2	L±2
10CROMEGA06	0.12	1.4	5.6	8.5	32.5	20	44	55
10CROMEGA08	0.27	2.5	10	10.5	42	24	60	73.5
10CROMEGA10	0.44	4	16	12.5	48.5	31	70	90
10CROMEGA13	0.89	6.7	26.8	16	60	38.8	90	109
10CROMEGA16	1.77	10	40	19	75.5	51	112	141.5
