CLGR® Clevis Slip Hook Grade 43 High Test

Name: CLGR® Clevis Slip Hook Grade 43 High Test
Brand: CLGR®

CLGR® Clevis Slip Hook Grade 43 High Test also known as High test slip hook, Slip hook with wider throat and Hot dipped galvanized G43 clevis slip hook with wider throat for towing.

Certified to U.S. Federal Specification, this high-test clevis slip hook is forged from superior carbon steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for demanding industrial applications.

Designed with a wider throat compared to clevis grab hooks, it enables smoother chain sliding and easier attachment, making it ideal for rapid load securement and release operations. Featuring a simple clevis pin attachment mechanism, it ensures reliable performance in logistics, transportation, and heavy-duty towing scenarios.

The hook offers multiple finish options—powder coated, hot-dipped galvanized, electric galvanized, or self-color—customized to meet specific environmental and corrosion resistance requirements.

Custom markings and finishes are available to align with unique project requirements.

To Get A Quote >

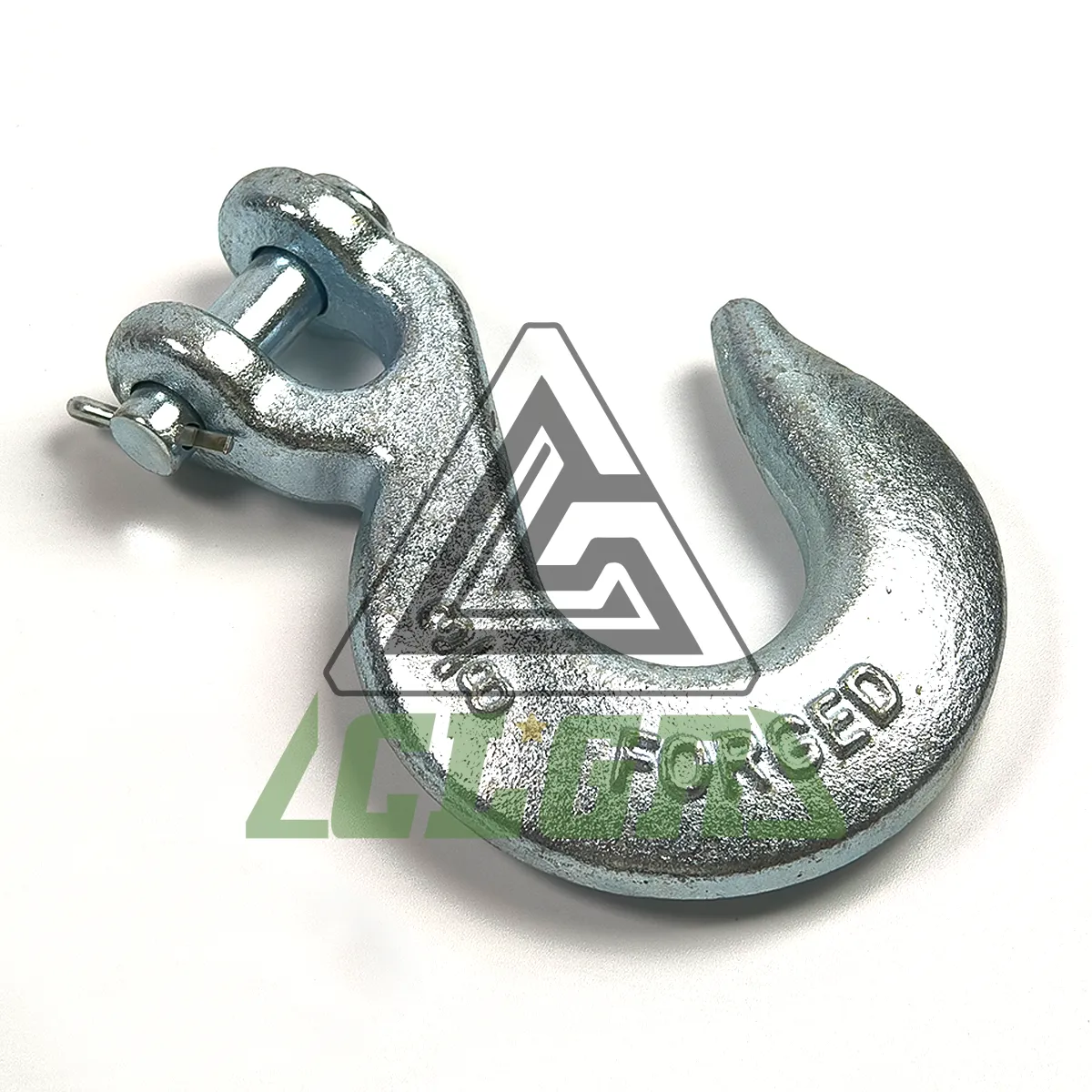

Clevis Slip Hook Grade 43 High Test China Supplier

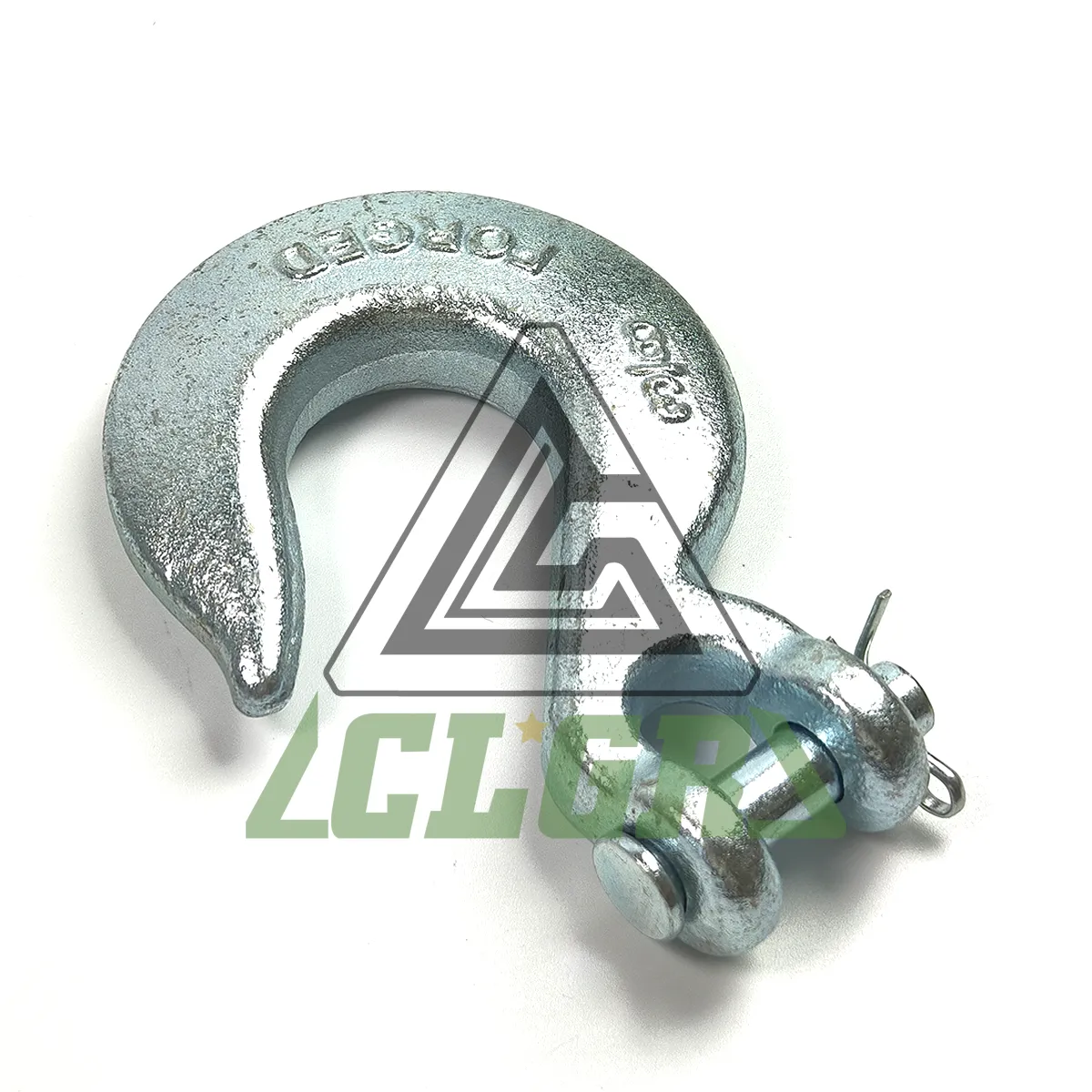

Clevis Slip Hook Grade 43 High Test China Factory

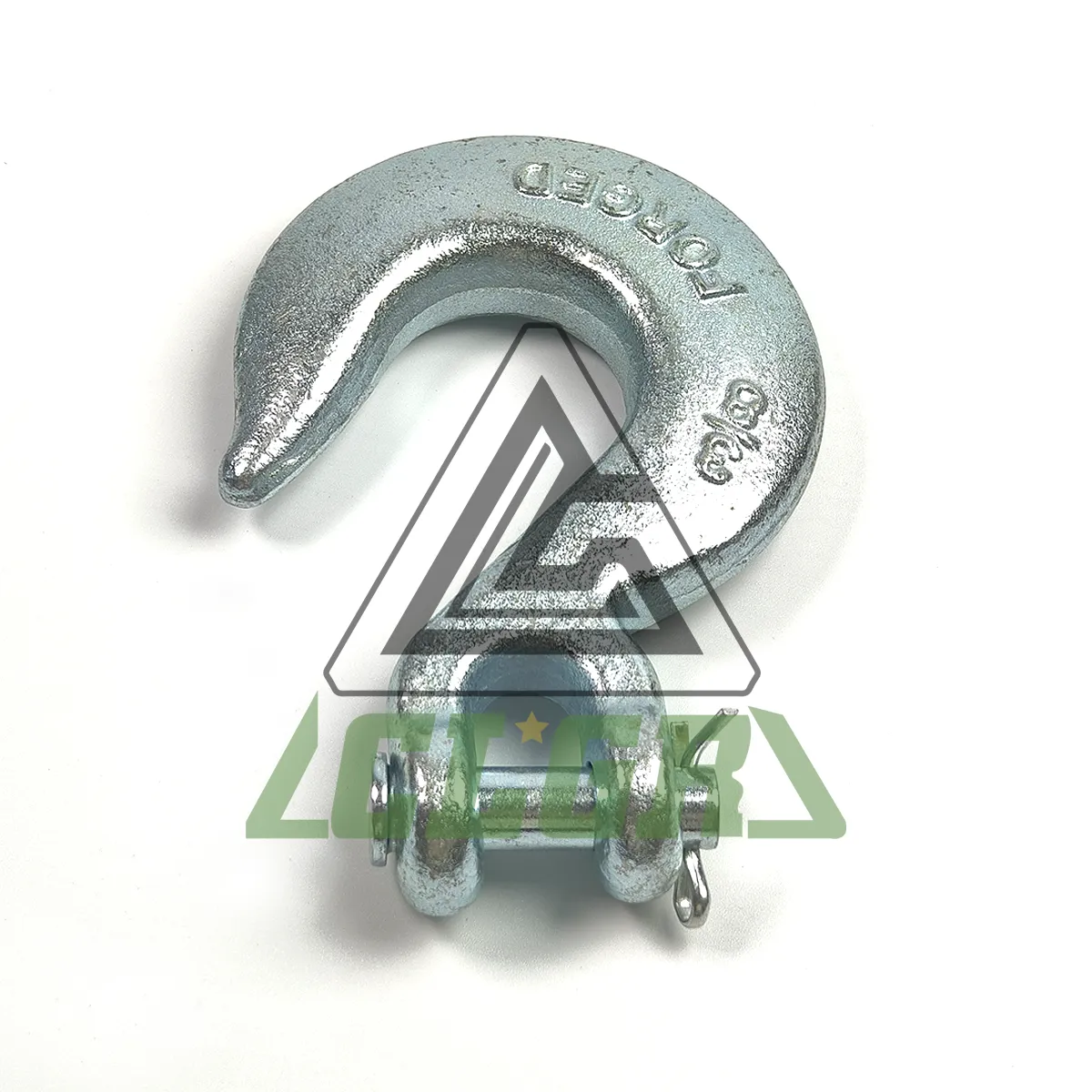

Clevis Slip Hook Grade 43 High Test China manufacturer

 

Overview of Clevis Slip Hook Grade 43 High Test

Brand	CLGR®
Origin	China
China	Clevis slip hook conform to U.S. Federal Specification
Material	Superior Carbon Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Colored
Tips	Customized according to customers' requirements

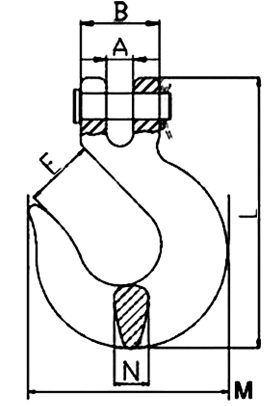

Specifications of Clevis Slip Hook Grade 43 High Test

Part No.	WEIGHT (lbs)	WLL (lbs) (4:1)	A±2	B±2	E±2	L±3	N±3	M±3
CR43-H-CSH-1/4	0.55	1950	10.5	27	23.5	100	12.5	71
CR43-H-CSH-5/16	0.82	2875	12	33	26	114	14.5	74
CR43-H-CSH-3/8	1.21	4000	14.5	39	32	132.5	17.5	93.5
CR43-H-CSH-7/16	2.09	5000	16.5	44	40	147	21	110.5
CR43-H-CSH-1/2	2.99	6500	19	48	42.5	166	23	115
CR43-H-CSH-5/8	4.85	9250	18.5	58.7	51	200.5	28	143
CR43-H-CSH-3/4	11.28	12500	30	81	64.5	257	36.6	187.5
