CLGR® Alloy Steel Clevis Slip Hook with Latch Grade 70

Name: CLGR® Alloy Steel Clevis Slip Hook with Latch Grade 70
Brand: CLGR®

CLGR® Alloy Steel Clevis Slip Hook with Latch Grade 70 also known as Grade 70 slip hook with latch, clevis slip hook with latch and Hot dipped galvanized G70 clevis slip hook with spring latch for trailer towing.

Certified to U.S. Federal Specification, this heavy-duty clevis slip hook is drop forged from Grade 70 alloy steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for demanding industrial applications.

Equipped with an integrated spring-loaded safety latch, this hook prevents accidental load release under dynamic/rough conditions, securing Grade 70 chain connections. The hook body offers finishes like powder coating or galvanization; the latch uses Dacroment/stainless steel for superior corrosion resistance.

Designed for easy attachment and quick release, it is ideal for heavy towing, industrial transport, logging, and commercial applications where both security and efficiency are critical.

Available in sizes from 1/4" to 3/4" , this Grade 70 slip hook combines robust performance with operational safety.

Custom finishes and markings can be provided to meet specific project requirements.

Note: Not for overhead lifting applications.

To Get A Quote >

Alloy Steel Clevis Slip Hook with Latch Grade 70

Alloy Steel Clevis Slip Hook with Latch Grade 70 china supplier

clevis slip hook with latch china manufacturer

 

Overview of Alloy Steel Clevis Slip Hook with Latch Grade 70

Brand	CLGR®
Origin	China
Technical Notes	Clevis slip hook conform to U.S. Federal Specification
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Dacroment / Stainless steel
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4” Clevis slip hook
Tips	Customized according to customers’ requirements

Specifications of Alloy Steel Clevis Slip Hook with Latch Grade 70

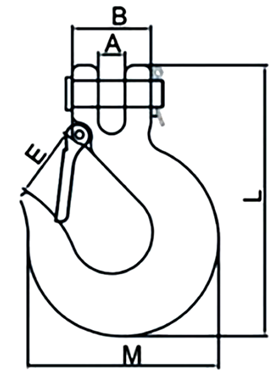

drawing-clgr-of-alloy-steel-clevis-slip-hook-with-latch-grade-70

Part No.	WEIGHT (lbs)	WLL(lbs)	A±1 (mm)	B±1.5 (mm)	L±3 (mm)	M±2 (mm)	E±2 (mm)
		WLL(lbs)
		G70
CR-70-CSH+L-1/4	0.53	2750	11.3	27	103.5	70.5	21.5
CR-70-CSH+L-5/16	0.77	4300	13	32	117	79	25.5
CR-70-CSH+L-3/8	1.26	5250	15.5	40	134	93.5	33.5
CR-70-CSH+L-7/16	2.25	7000	15	44	151.5	111	36
CR-70-CSH+L-1/2	3.06	9000	19	48	168	124.5	37.5
CR-70-CSH+L-5/8	5.18	13500	18.5	58.7	200.5	143	46.5
CR-70-CSH+L-3/4	12.4	19250	30	81	256	188	58
