CLGR® Clevis Slip Hook Grade 70 Australia Standard

Name: CLGR® Clevis Slip Hook Grade 70 Australia Standard
Brand: CLGR®

CLGR® Clevis Slip Hook Grade 70 Australia Standard also known as Grade 70 slip hook Australia, Clevis slip hook for transport chain and Electric galvanized G70 clevis slip hook AS 4344 for transport chain.

Certified to AS 4344 Australia Standard, this heavy-duty clevis slip hook is drop forged from superior alloy steel and undergoes quenching and tempering heat treatment, delivering exceptional strength and durability for demanding transport and load restraint applications.

Designed with a clevis connection for secure attachment and a slip hook for easy chain adjustment, it provides reliable performance in heavy load lashing and transport operations with Grade 70 chain systems. The hook offers electric galvanized or self-colored finish options for enhanced corrosion protection in various working environments.

Available in sizes from 6mm to 13mm with load capacities ranging from 2,800 kg to 9,000 kg, each unit is manufactured to international quality standards for guaranteed safety and reliability.

Ideal for transport chain applications, trucking, logistics, and heavy-duty cargo restraint scenarios, this Australian standard hook combines robust construction with functional efficiency.

Custom sizes and specifications can be provided to meet unique project requirements.

To Get A Quote >

clgr clevis slip hook grade 70 australia standard china supplier

clgr clevis slip hook grade 70 australia standard china manufacturer

clgr clevis slip hook grade 70 australia standard

 

Overview of Clevis Slip Hook Grade 70 Australia Standard

Brand	CLGR®
Origin	China
Technical Notes	Clevis Slip Hook Comply with AS 4344
Material	Superior Alloy Steel
Processing	Drop Forged, Quenched and Tempered
Finish	Self-Colored, Electric Galvanized
Size	6mm, 8mm, 10mm, 13mm
L.C.	2800KGS, 3800KGS, 6000KGS, 9000KGS

Specifications of Clevis Slip Hook Grade 70 Australia Standard

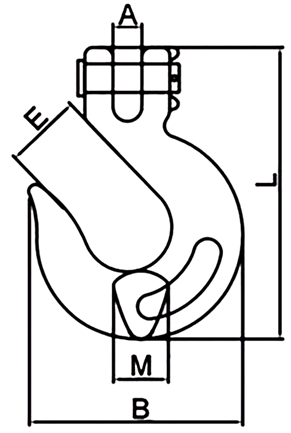

drawing-clgr-of-clevis-slip-hook-grade-70-australia-standard-china-supplier

Part No.	Size	N.W	L.C.	B.L	A±0.5	B±1	E±1	M±0.5	L±1.2
Part No.	Size	(KG)	(KG）	(KG)	mm	mm	mm	mm	mm
CRAACSH01	6mm	0.22	2300	4600	9	69	19	12.5	99.5
CRAACSH02	8mm	0.36	3800	7600	11	80	26	14.5	110
CRAACSH03	10mm	0.6	6000	12000	12	95	33	19	126.5
CRAACSH04	13mm	1.185	9000	18000	19	121.5	43	23	167.5

Australia Standard Hooks are also available in:

Grade 70 Clevis Slip Hook w/Latch,

G70 Clevis Grab Hook w/Cradle,

Grade 70 Clevis Grab Hook without the cradle.
