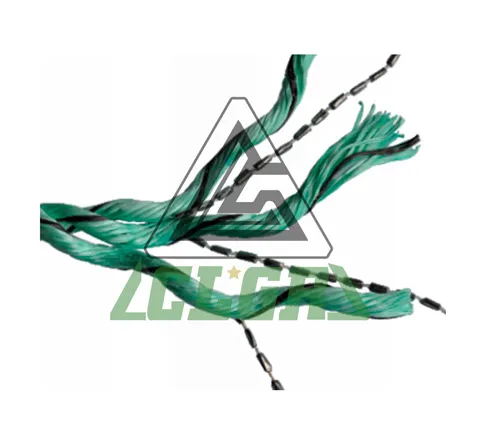

The PP/PE/Nylon/Polyester Braided Lead Danline Rope, also known as Danline Lead Core Rope and Lead Core Rope Line for Fish Nets, is a rope made of a chemical fiber layer wrapped around the inner core of the lead chain and is mainly used for fishery counterweight. This rope is characterized by both the flexibility of the chemical fibre layer and the counterweight capability of the lead chain.
The rope can sink quickly to the bottom. This product is a mixture of lead-wire and outsourced materials. The materials are: polypropylene, nylon, polyester, etc.
The elongation during use is basically consistent in both dry and wet states. It is easy to operate, has moderate drainage, and a smooth feel.
Brand | CLGR® |
Material | PP/PE/Nylon/Polyester with Lead Line or Chain Core |
Structure | Braided/Twisted. |
Melting Point | 165°C |
Elongation at break | 17%-21% |
UV resistance | Good |
Abrasion resistance | Good |
Application: | Pelagic fishing, sea farming and matching of netting gear. Fishing: PP/Nylon/PET with lead wire or chain rope |
Part No. | Size | Breaking Strength | Weight | ||||||||||
PP | Nylon | Polyester | Rope Weight g/m | Lead Weight | Lead Core Rope g/m | ||||||||
MM DIA. | INCH CIR. | kN | tonf | kN | tonf | kN | tonf | ||||||
PP | Nylon | Polyester | |||||||||||
CRSRLC04 | 4 | 1/2 | 2.06 | 0.21 | 3.14 | 0.32 | 2.94 | 0.30 | 6.00 | 10.50 | 11.82 | Upon Customer's Request | Upon Customer's Request |
CRSRLC06 | 6 | 3/4 | 5.88 | 0.60 | 7.35 | 0.75 | 5.49 | 0.56 | 17.00 | 22.50 | 27.27 | ||
CRSRLC08 | 8 | 1 | 10.39 | 1.06 | 13.23 | 1.35 | 10.00 | 1.02 | 30.00 | 40.00 | 48.18 | ||
CRSRLC10 | 10 | 1-1/4 | 15.29 | 1.56 | 20.38 | 2.08 | 15.58 | 1.59 | 45.00 | 61.82 | 75.91 | ||
CRSRLC12 | 12 | 1-1/2 | 21.66 | 2.21 | 29.40 | 3.00 | 22.25 | 2.27 | 65.00 | 89.09 | 110.00 | ||
CRSRLC14 | 14 | 1-3/4 | 29.89 | 3.05 | 40.18 | 4.10 | 31.16 | 3.18 | 90.91 | 122.73 | 148.18 | ||
CRSRLC16 | 16 | 2 | 37.04 | 3.78 | 51.94 | 5.30 | 40.18 | 4.10 | 115.00 | 159.09 | 195.45 | ||
CRSRLC18 | 18 | 2-1/4 | 47.24 | 4.82 | 65.66 | 6.70 | 50.47 | 5.15 | 147.73 | 200.00 | 245.45 | ||
CRSRLC20 | 20 | 2-1/2 | 56.84 | 5.80 | 81.34 | 8.30 | 62.72 | 6.40 | 181.82 | 245.45 | 304.55 | ||
CRSRLC22 | 22 | 2-3/4 | 68.21 | 6.96 | 98.00 | 10.00 | 74.48 | 7.60 | 220.00 | 300.00 | 368.18 | ||
CRSRLC24 | 24 | 3 | 79.67 | 8.13 | 117.60 | 12.00 | 89.18 | 9.10 | 259.09 | 354.55 | 436.36 | ||
CRSRLC26 | 26 | 3-1/4 | 92.22 | 9.41 | 137.20 | 14.00 | 104.86 | 10.70 | 304.55 | 418.18 | 513.64 | ||
CRSRLC28 | 28 | 3-1/2 | 104.86 | 10.70 | 154.84 | 15.80 | 119.56 | 12.20 | 354.55 | 486.36 | 595.45 | ||
CRSRLC30 | 30 | 3-3/4 | 119.56 | 12.20 | 174.44 | 17.80 | 134.26 | 13.70 | 404.55 | 554.55 | 681.82 | ||
CRSRLC32 | 32 | 4 | 132.30 | 13.50 | 196.00 | 20.00 | 153.86 | 15.70 | 459.09 | 631.82 | 777.27 | ||
CRSRLC36 | 36 | 4-1/2 | 165.62 | 16.90 | 244.02 | 24.90 | 190.12 | 19.40 | 586.36 | 800.00 | 981.82 | ||
CRSRLC40 | 40 | 5 | 200.90 | 20.50 | 294.00 | 30.00 | 235.20 | 24.00 | 718.18 | 990.91 | 1213.64 | ||
CRSRLC44 | 44 | 5-1/2 | 241.08 | 24.60 | 350.84 | 35.80 | 279.30 | 28.50 | 881.82 | 1200.00 | 1468.18 | ||
CRSRLC48 | 48 | 6 | 280.28 | 28.60 | 411.60 | 42.00 | 329.28 | 33.60 | 1040.91 | 1418.18 | 1750.00 | ||
CRSRLC52 | 52 | 6-1/2 | 324.38 | 33.10 | 478.24 | 48.80 | 384.16 | 39.20 | 1218.18 | 1659.09 | 2050.00 | ||
CRSRLC56 | 56 | 7 | 388.00 | 39.59 | 603.00 | 61.53 | 476.00 | 48.57 | 1420.00 | 2010.00 | 2380.00 | ||
CRSRLC60 | 60 | 7-1/2 | 445.00 | 45.41 | 675.74 | 68.95 | 543.27 | 55.44 | 1630.00 | 2260.00 | 2730.00 | ||
CRSRLC64 | 64 | 8 | 503.00 | 51.33 | 756.00 | 77.14 | 615.78 | 62.83 | 1850.00 | 2520.00 | 3110.00 | ||
CRSRLC65 | 65 | 8-1/8 | 519.00 | 52.96 | 780.00 | 79.59 | 619.53 | 63.22 | 1911.00 | 2600.00 | 3210.00 | ||
CRSRLC70 | 70 | 8-3/4 | 601.00 | 61.33 | 899.96 | 91.83 | 713.28 | 72.78 | 2217.00 | 3020.00 | 3715.00 | ||
Other sizes are available upon request.
