CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A

Name: CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A
Brand: CLGR®

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A, also known as Spring Snap Hook with Eyelet Carabiner, Carbine Snap hook with Eyelet.

The Spring Snap Link with Eyelet is a lightweight metal connector for precise rigging. Ideal for attaching small cables to eye bolts, it excels in securing temporary guide wires or organizing light loads.

This connector features a spring-loaded gate for easy opening/closing and an eyelet loop for fixed attachment to stationary points like wall-mounted eye bolts. Designed for secure yet removable connections, perfect for tasks requiring both stability and flexibility in lightweight rigging scenarios.

Our spring snap hooks provide in 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm as well as customized sizes.

Attention: The hook cannot be opened when loaded with specified load capacity due to elastic deformation.

To Get A Quote >

22 CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Manufacturers

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Suppliers

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Wholesale Manufacturers

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A China

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Wholesale Suppliers

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Factory

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Exporter

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A in China

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Manufacturer

CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A Supplier

 

Overview of CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A

Brand	CLGR®
Size	4x40mm, 5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm, 10x100mm, 11x120mm, 12x140mm, 13x160mm spring snap hook
Type	DIN 5299A
Material	Mild Steel Carabiner Hook
Processing	Stamping / Machining
Finish	Zinc Plated (Electro-galvanized)

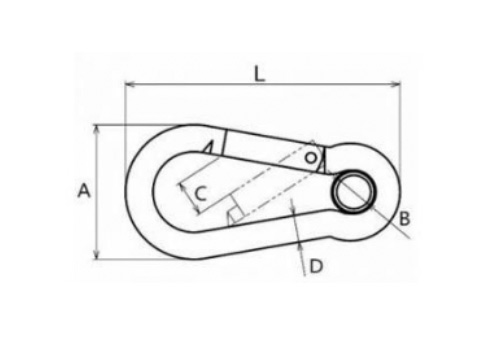

Specifications of CLGR® Galvanized Carabine Snap Hook with Eyelet DIN5299 Form A

Part No.	Size	A	B	C	D	L	W.L.L	N.W.
DIN 5299A	mm						lbs	kgs/100pcs
CRCSHA04	4×40	20	5	6	4	40	100	0.85
CRCSHA05	5×50	25	5	7	5	50	160	1.8
CRCSHA06	6×60	30	5	7	6	60	260	3
CRCSHA07	7×70	35	7	10	7	70	335	5
CRCSHA08	8×80	40	10	11	8	80	400	7
CRCSHA09	9×90	45	10	11	9	90	500	9.8
CRCSHA10	10×100	50	13	12	10	100	650	14.2
CRCSHA11	11×120	57	13	19	11	120	700	21
CRCSHA12	12×140	67	15	20	12	140	800	27.5
CRCSHA13	13×160	74	17	19	13	160	1300	35.8

In addition to above options, we also offer stainless steel carabiner snap hooks for enhanced strength and corrosion resistance. Perfect for marine, industrial, or outdoor use, these rust-proof hooks ensure long-lasting performance even in harsh conditions.
