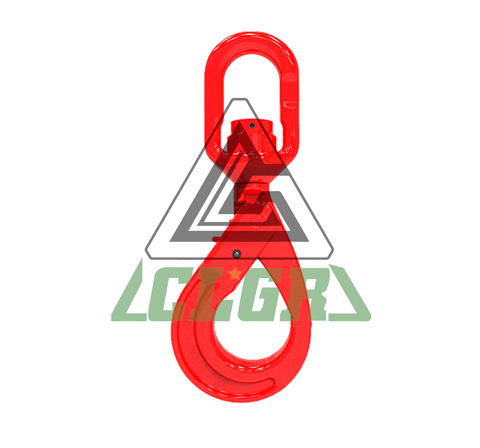

CLGR® Grade 80 Eye Swivel Safety Hook with Ball Bearing

Name: CLGR® Grade 80 Eye Swivel Safety Hook with Ball Bearing
Brand: CLGR®

CLGR® Grade 80 Eye Swivel Safety hook with Ball Bearing, also known as Grade 80 Eye Swivel Self-Locking hook with ball bearing, Swivel Self-Closing hook, Safety cargo hook with swivel, grade 80 eye swivel safety hook with roller bearing.

Conformed to European type EN818-2, forged from special alloy steel for high strength and toughness with subsequent heat treatment, this component is compatible with standard slings and G80 chains.

This premium hook features smooth ball bearing technology that enables effortless 360° horizontal rotation and 180° vertical tilting. The precision bearings ensure consistent performance under load while maintaining a 4:1 safety factor in all directions.

It suitable for port and ship operations, construction and heavy lifting. Available G80 swivel self-locking hook sizes include: 6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm.

To Get A Quote >

clgr grade 80 eye swivel safety hook with ball bearing china

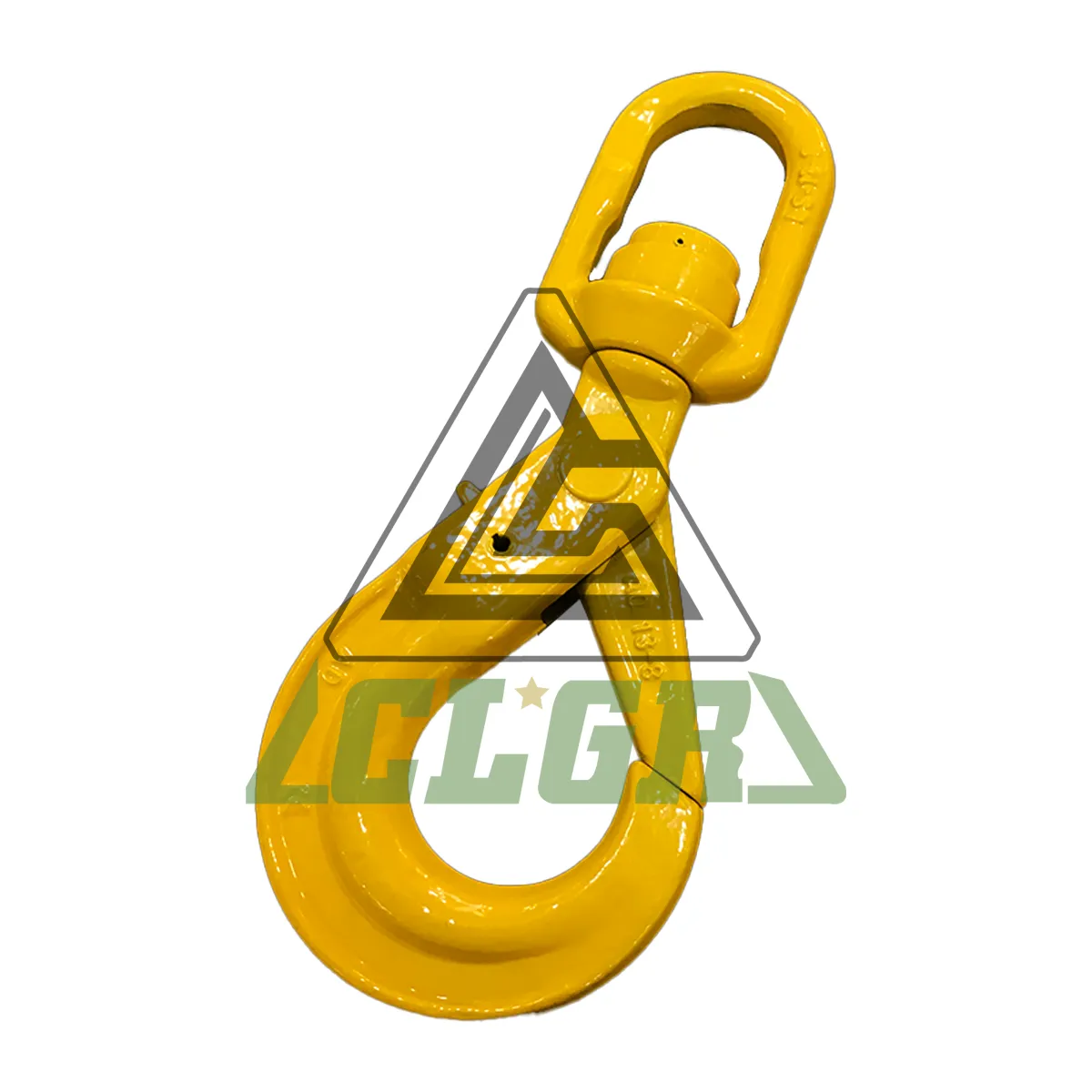

clgr grade 80 eye swivel safety hook with ball bearing china china manufacturer

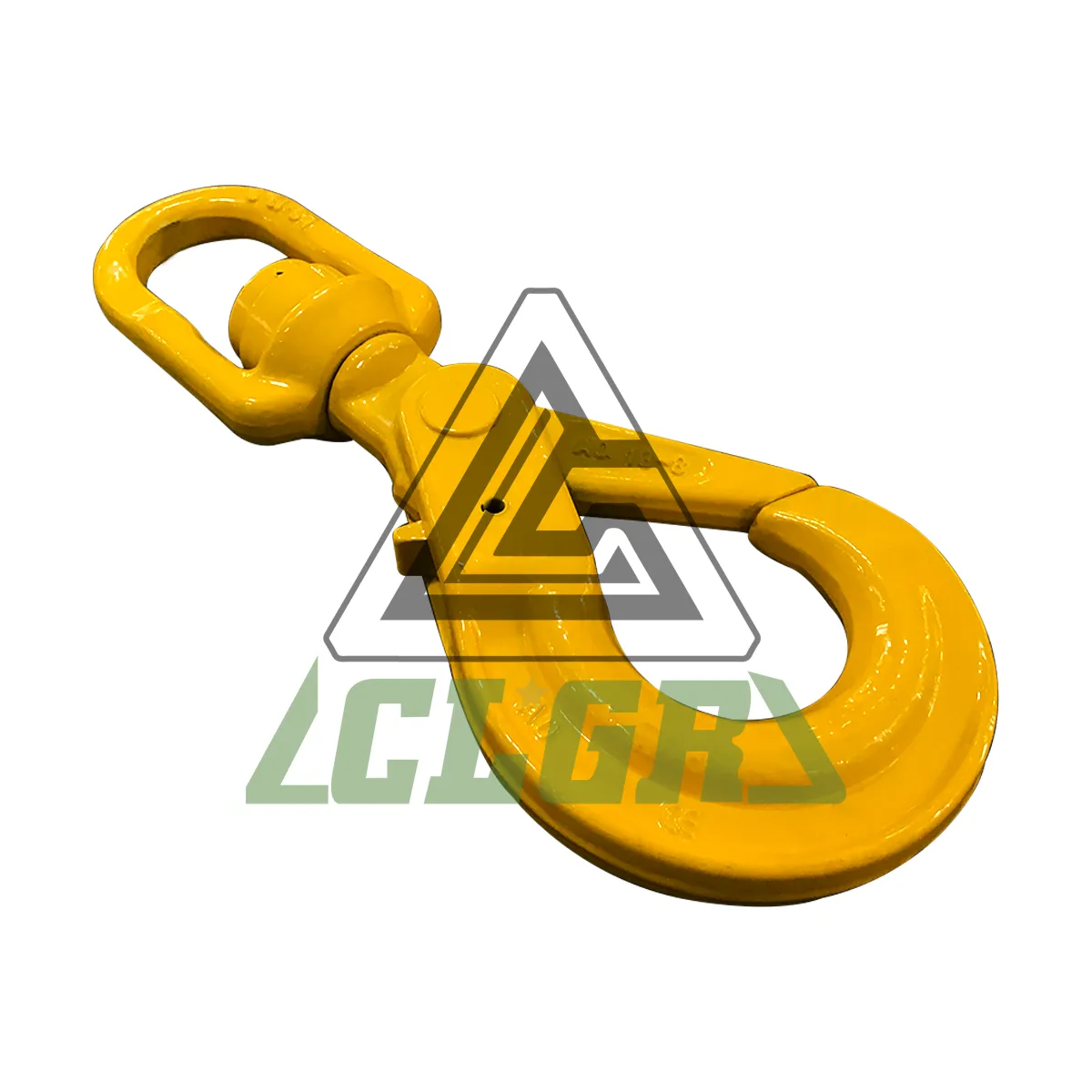

clgr grade 80 eye swivel safety hook with ball bearing china supplier

Overview of CLGR® Grade 80 Eye Swivel Safety Hook with Ball Bearing

Brand	CLGR®
Size	6mm, 7/8mm, 10mm, 13mm, 16mm, 18/20mm, 22mm, 26mm
Material	Super Alloy Steel
Standard	European Type
Safety Factor	4: 1
Processing	Forged / Heat Treatment
Surface Finish	Powder Coating
Note	Designed to swivel under load; Color can be customized

Specifications of CLGR® Grade 80 Eye Swivel Safety Hook with Ball Bearing

Part No.	Weight (kg)	Working Load Limit (t)	Breaking Load (t)	B±2	C±2	D±1	L±3	T±1.5	E±2
8CRESSH+B6	0.71	1.12	4.48	32.5	34.8	11.5	163.3	34	27
8CRESSH+B7/8	1.1	2	8	36	40	13	195.2	46	35
8CRESSH+B10	2.0	3.15	12.6	42	48	15.5	237	56	44
8CRESSH+B13	4.0	5.3	21.2	50	58	17	282	69	53
8CRESSH+B16	7.3	8	32	61	61	21.5	341.5	86	60
8CRESSH+B18/20	11.6	12.5	50	76	75.5	26.5	399.5	100	87
8CRESSH+B22	16.0	15	60	97	97	33	461	98	80
8CRESSH+B26	21.5	21.2	84.8	123	115	42	536.5	110	98
