CLGR® Stainless Steel Carabiner Snap Hook with Screw Nut DIN 5299 Form D

Name: CLGR® Stainless Steel Carabiner Snap Hook with Screw Nut DIN 5299 Form D
Brand: CLGR®

CLGR® Stainless Steel Carabiner Snap Hook with Screw Nut DIN 5299 Form D, also known as Stainless Steel Spring Snap Link with Screw Lock, Stainless steel Carabine hooks with Lock Screw.

Made of stainless steel AISI304/AISI316, compliant with the international quality standard DIN 5299, the marine snap hook from CLGR®, a professional snap hooks manufacturer, offers durability for indoor or occasional outdoor use.

CLGR® Stainless Steel Spring Snap Link with Screw Lock is a rust-resistant metal connector for securing ropes, chains, or equipment. The marine snap hook features a spring-loaded gate for easy opening/closing and an eyelet for fixed attachment to bolts or hooks, ideal for wet or outdoor environments.

Shop spring snaps in multiple styles/sizes. Marine snap hook pairs with marine rope, wire rope, swivels, eye bolts, chains, and shackles for tool organization, outdoor setups, or marine applications.

To Get A Quote >

27 CLGR® Stainless Steel Carabiner Snap Hook with Screw Nut DIN 5299 Form D

 

Overview of CLGR® Stainless Steel Carabiner Snap Hook with Screw Nut DIN 5299 Form D

Brand	CLGR®
Size	4x40mm, 5x50mm, 6x60mm, 7x70mm, 8x80mm, 9x90mm, 10x100mm, 11x120mm, 12x140mm, 13x160mm, 14x180mm stainless steel carabine snap hook
Type	DIN 5299D
Material	Stainless Steel Carabiner Hook
Processing	Stamping / Machining
Finish	Highly Polishing / Electrophoretic coating

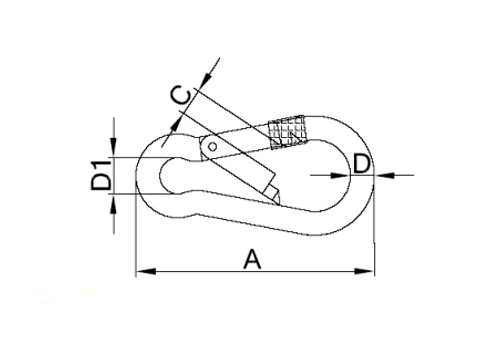

Specifications of CLGR® Stainless Steel Carabiner Snap Hook with Screw Nut DIN 5299 Form D

Tip: Not for overhead lifting

Part No.	Size (mm)	D (mm)	A (mm)	C (mm)	D1 (mm)	WLL (lbs)
CRSH5299SN04	4×40	4	40	6	6.5	80
CRSH5299SN05	5×50	5	50	7	8	100
CRSH5299SN06	6×60	6	60	8	9	140
CRSH5299SN07	7×70	7	70	8	10.5	200
CRSH5299SN08	8×80	8	80	9	12	250
CRSH5299SN09	9×90	9	90	10	13	280
CRSH5299SN10	10×100	10	100	12	15	400
CRSH5299SN11	11×120	11	120	16	18	500
CRSH5299SN12	12×140	12	140	19	20	600
CRSH5299SN13	13×160	13	160	25	22	700
CRSH5299SN14	14×180	14	180	35	22	900

Notice: The load capacity specified in the table is intended to indicate the highest possible load capacity of the snap hooks.
