CLGR® Trawl Wire Rope 6X19S+IWRC Galvanized

Name: CLGR® Trawl Wire Rope 6X19S+IWRC Galvanized
Brand: CLGR®

Crafted from premium raw materials, these 6x19M - IWRC fishing wire ropes exhibit exceptional mechanical properties, including remarkable resistance to wear, abrasion, and fluctuations in steel quality. Additionally, the steel ropes are fortified with a zinc-aluminum coating that offers outstanding corrosion protection.

CLGR® Steel wire ropes with a 6x19S＋IWRC construction serve applications similar to those of fiber core ropes with the same structure. However, compared to fiber core ropes, these wire rope core variants exhibit greater stiffness, higher breaking force, and enhanced resistance to transverse pressures and extreme temperatures. Additionally, they are characterized by superior tensile strength, though with reduced flexibility.

To Get A Quote >

Overview of CLGR® Trawl Wire Rope 6X19S+IWRC Galvanized

Brand	CLGR®

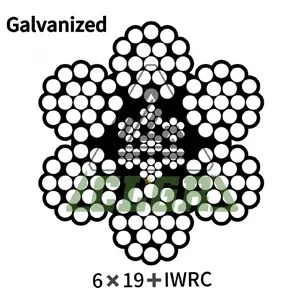

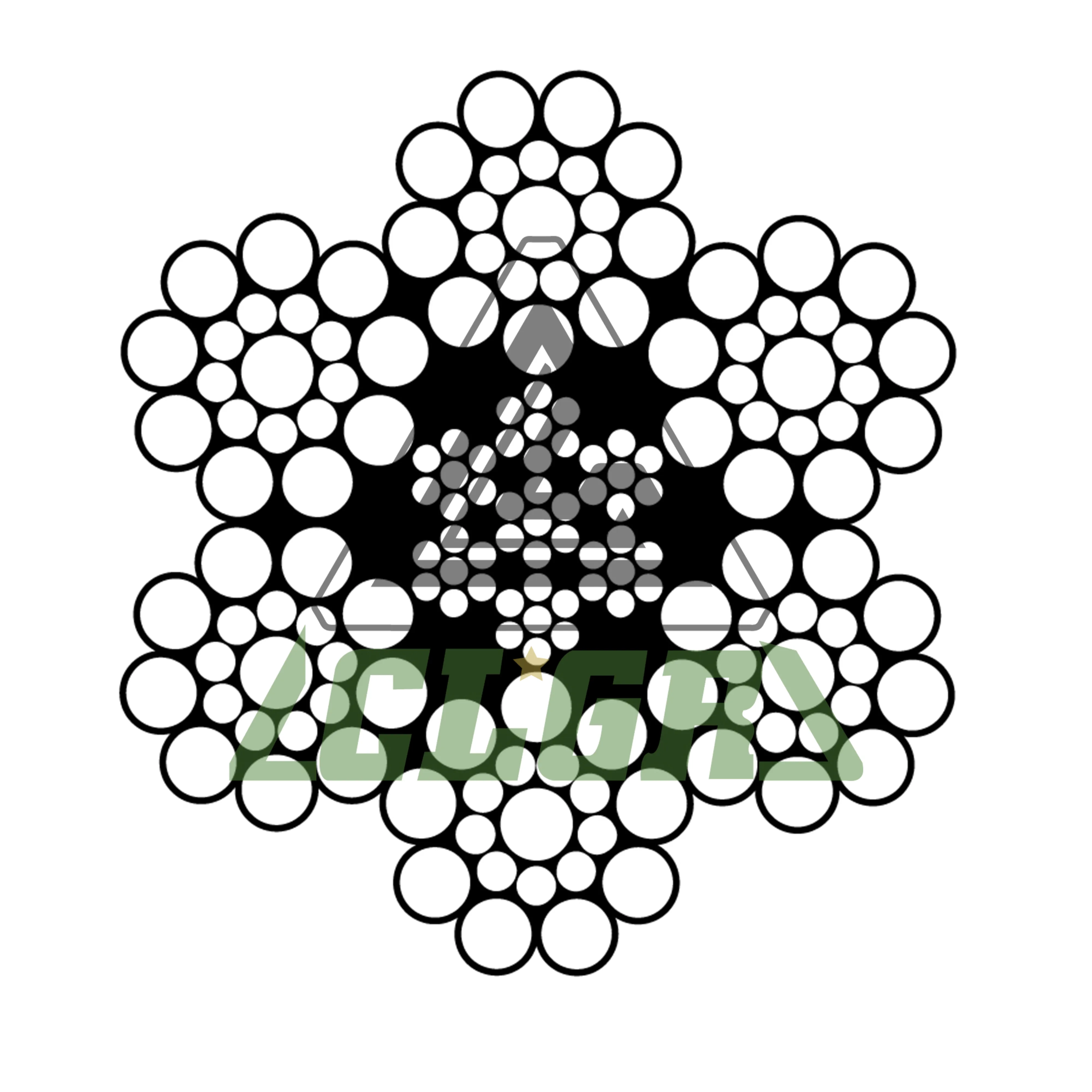

Construction	6×S(19)+IWRC, also known as 6X19S+IWRC, or 6x19 Seal+IWRC
Surface Finish	Galvanized
Type	CRWRLIFT6
Origin	China
Warning	No Return due to safety risks from used materials

Specifications of CLGR® Trawl Wire Rope 6X19S+IWRC Galvanized

Part No.	Nominal Dia.		Minimum Breaking Load (Metric Ton)	Part No.	Nominal Dia.	Minimum Breaking Load (Metric Ton)	Part No.
CRWRLIFT6 6×19+IWRC	MM	INCH	165 KG/MM²	180 KG/MM²	200 KG/MM²	220 KG/MM²	Approx Weight
CRWRLIFT6 6×19+IWRC	MM	INCH	1620 N/MM²	1770 N/MM²	1960 N/MM²	2160 N/MM²	KG/M
CRWRLIFT6i01	6		2.3	2.4	2.7	2.9	0.16
CRWRLIFT6i02	6.53	1/4"	2.7	2.9	3.2	3.5	0.18
CRWRLIFT6i03	8	5/16"	4.1	4.3	4.8	5.2	0.28
CRWRLIFT6i04	9		5.1	5.4	6.1	6.6	0.35
CRWRLIFT6i05	9.53	3/8"	5.8	6.1	6.8	7.4	0.39
CRWRLIFT6i06	10		6.3	6.7	7.5	8.1	0.43
CRWRLIFT6i07	11.2	7/16"	7.9	8.4	9.4	10.2	0.54
CRWRLIFT6i08	12		9.1	9.7	10.8	11.7	0.62
CRWRLIFT6i09	12.7	1/2"	10.2	10.8	12.1	13.1	0.69
CRWRLIFT6i10	13		10.7	11.4	12.7	13.7	0.73
CRWRLIFT6i11	14		12.4	13.2	14.7	15.9	0.84
CRWRLIFT6i12	14.3	9/16"	13.0	13.7	15.3	16.6	0.88
CRWRLIFT6i13	15		14.2	15.1	16.9	18.3	0.97
CRWRLIFT6i14	16	5/8"	16.2	17.2	19.2	20.8	1.10
CRWRLIFT6i15	17.5	11/16"	19.4	20.6	23.0	24.9	1.32
CRWRLIFT6i16	18		20.5	21.8	24.3	26.3	1.40
CRWRLIFT6i17	19	3/4"	22.9	24.3	27.1	29.3	1.55
CRWRLIFT6i18	20		25.3	26.9	30.0	32.5	1.72
CRWRLIFT6i19	21	13/16"	27.9	29.6	33.1	35.8	1.90
CRWRLIFT6i20	22		30.7	32.5	36.3	39.3	2.08
CRWRLIFT6i21	22.2	7/8"	31.3	33.2	37.1	40.2	2.13
CRWRLIFT6i22	24	15/16"	36.5	38.7	43.2	46.8	2.48
CRWRLIFT6i23	25		39.6	42.0	46.9	50.8	2.69
CRWRLIFT6i24	25.4	1"	40.9	43.4	48.4	52.4	2.78
CRWRLIFT6i25	26	1-1/16"	42.8	45.4	50.7	55.0	2.91
CRWRLIFT6i26	28		49.7	52.7	58.8	63.7	3.38
CRWRLIFT6i27	28.6	1-1/8"	51.8	55.0	61.3	66.5	3.52
CRWRLIFT6i28	30	1-3/16"	57.0	60.5	67.5	73.2	3.88
CRWRLIFT6i29	31.5	1-1/4"	64.1	68.0	75.8	82.2	4.35
CRWRLIFT6i30	32		64.9	70.8	76.8	83.2	4.41
CRWRLIFT6i31	34		73.2	77.7	86.7	94.0	4.98
CRWRLIFT6i32	35	1-3/8"	77.6	82.3	91.9	99.6	5.27
CRWRLIFT6i33	36		82.1	87.1	97.2	105.4	5.58
CRWRLIFT6i34	38		91.5	97.1	108.3	117.4	6.22
CRWRLIFT6i35	38.1	1-1/2"	91.9	97.6	108.9	118.0	6.25
CRWRLIFT6i36	40		101.3	107.6	120.0	130.1	6.89
CRWRLIFT6i37	42		111.7	118.6	132.3	-	7.60
CRWRLIFT6i38	44		122.6	130.1	145.2	-	8.34
CRWRLIFT6i39	44.5	1-3/4"	125.1	132.8	148.2	-	8.51
CRWRLIFT6i40	46		134.0	142.2	158.7	-	9.11
CRWRLIFT6i41	48		145.9	154.9	172.8	-	9.92
CRWRLIFT6i42	50		158.3	168.1	187.5	-	10.76
CRWRLIFT6i43	50.8	2"	163.4	173.5	193.5	-	11.11
CRWRLIFT6i44	52		171.3	181.8	202.8	-	11.64
CRWRLIFT6i45	54		184.7	196.0	218.7	-	12.56
CRWRLIFT6i46	56		198.6	210.8	235.2	-	13.50
CRWRLIFT6i47	57.2	2-1/4"	207.2	219.9	245.4	-	14.09
CRWRLIFT6i48	58		213.1	226.1	252.3	-	14.48
CRWRLIFT6i49	60		228.0	242.0	270.0	-	15.50
CRWRLIFT6i50	63.5	2-1/2"	255.4	271.1	302.4	-	17.36
CRWRLIFT6i51	66		275.9	292.8	326.7	-	18.75
CRWRLIFT6i52	68		292.9	310.8	346.8	-	19.91
CRWRLIFT6i53	70	2-3/4"	310.3	329.4	-	-	21.01
CRWRLIFT6i54	72		328.3	348.5	-	-	22.32
CRWRLIFT6i55	74		346.8	368.1	-	-	23.58
CRWRLIFT6i56	76.2	3"	367.7	390.3	-	-	25.00

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
