CLGR® Trawl Wire Rope 6X19S+FC Galvanized

Name: CLGR® Trawl Wire Rope 6X19S+FC Galvanized
Brand: CLGR®

CLGR® Trawl Wire Rope 6X19S+FC Galvanized, also known as Steel Wire Rope for Trawl 6x19 Seal+FC.

The galvanized steel rope, featuring a three-layer weave structure of 6x19S+FC, incorporates an FC (fibre core) that enhances its flexibility. With large-diameter wires in the outer layer of the weave, this rope exhibits high abrasion resistance and good elasticity. Due to these properties, it is suitable for applications such as trawling ropes and ropes for passenger and goods lifts, where both durability and flexibility are essential.

To Get A Quote >

Overview of CLGR® Trawl Wire Rope 6X19S+FC Galvanized

Brand	CLGR®

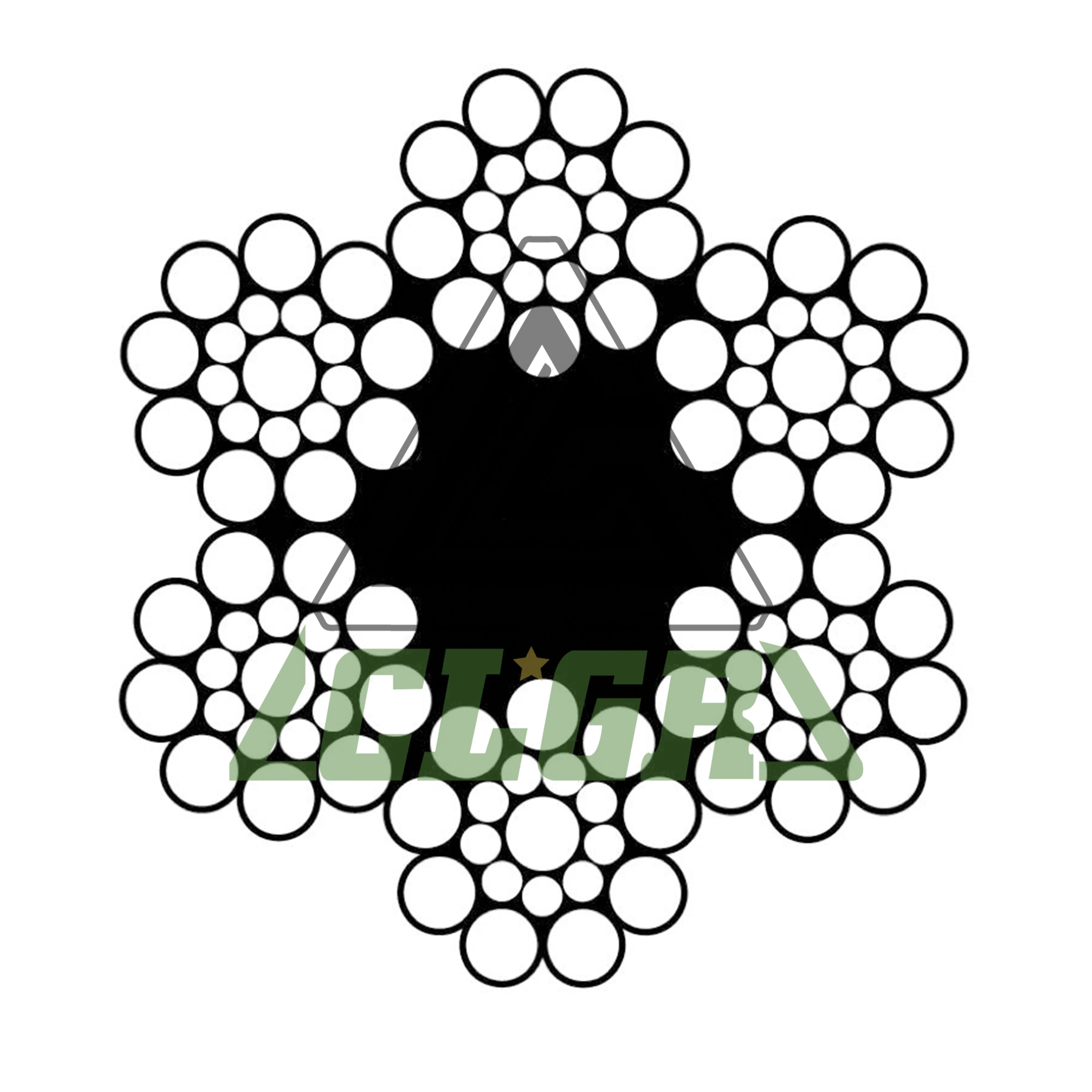

Construction	6×S(19)+FC, also known as 6X19S+FC, or 6x19 Seal+FC
Surface Finish	Galvanized
Type	CRWRLIFT6
Origin	China
Warning	No Return due to safety risks from used materials

Specifications of CLGR® Trawl Wire Rope 6X19S+FC Galvanized

Part No.	Nominal Dia.		Minimum Breaking Load (Metric Ton)
LGWRLIFT 6 6×19S+FC	MM	INCH	165 KG/MM²	180 KG/MM²	Approx Weight
LGWRLIFT 6 6×19S+FC	MM	INCH	1620 N/MM²	1770 N/MM²	KG/M
CRWRLIFT6f01	6		2.0	2.1	0.14
CRWRLIFT6f02	6.53	1/4”	2.4	2.5	0.16
CRWRLIFT6f03	8	5/16”	3.6	3.8	0.25
CRWRLIFT6f04	9		4.5	4.8	0.31
CRWRLIFT6f05	9.53	3/8”	5.1	5.4	0.35
CRWRLIFT6f06	10		5.6	5.9	0.39
CRWRLIFT6f07	11.2	7/16”	7.0	7.4	0.48
CRWRLIFT6f08	12		8.0	8.5	0.56
CRWRLIFT6f09	12.7	1/2”	9.0	9.5	0.62
CRWRLIFT6f10	13		9.4	10.0	0.65
CRWRLIFT6f11	14		10.9	11.6	0.76
CRWRLIFT6f12	14.3	9/16”	11.4	12.1	0.79
CRWRLIFT6f13	15		12.5	13.3	0.87
CRWRLIFT6f14	16	5/8”	14.2	15.1	0.99
CRWRLIFT6f15	17.5	11/16”	17.0	18.1	1.18
CRWRLIFT6f16	18		18.0	19.2	1.25
CRWRLIFT6f17	19	3/4”	20.1	21.4	1.39
CRWRLIFT6f18	20		22.2	23.7	1.54
CRWRLIFT6f19	21	13/16”	24.5	26.1	1.70
CRWRLIFT6f20	22		26.9	28.6	1.87
CRWRLIFT6f21	22.2	7/8”	27.4	29.2	1.90
CRWRLIFT6f22	24	15/16”	32.0	34.1	2.22
CRWRLIFT6f23	25		34.7	37.0	2.41
CRWRLIFT6f24	25.4	1 “	35.8	38.2	2.49
CRWRLIFT6f25	26	1-1/16”	37.6	40.0	2.61
CRWRLIFT6f26	28		43.6	46.4	3.03
CRWRLIFT6f27	28.6	1-1/8”	45.4	48.4	3.16
CRWRLIFT6f28	30	1-3/16”	50.0	53.2	3.48
CRWRLIFT6f29	31.5	1-1/4”	56.2	59.8	3.90
CRWRLIFT6f30	32		56.9	60.6	3.95
CRWRLIFT6f31	34		64.2	68.4	4.46
CRWRLIFT6f32	35	1-3/8”	68.1	72.5	4.73
CRWRLIFT6f33	36		72.0	76.7	5.00
CRWRLIFT6f34	38		80.2	85.4	5.58
CRWRLIFT6f35	38.1	1-1/2”	80.6	85.9	5.60
CRWRLIFT6f36	40		88.9	94.7	6.18
CRWRLIFT6f37	42		98.0	104.4	6.81
CRWRLIFT6f38	44		107.6	114.5	7.48
CRWRLIFT6f39	44.5	1-3/4”	109.8	116.9	7.63
CRWRLIFT6f40	46		117.6	125.2	8.17
CRWRLIFT6f41	48		128.0	136.3	8.90
CRWRLIFT6f42	50		138.9	147.9	9.65
CRWRLIFT6f43	50.8	2”	143.4	152.7	9.96
CRWRLIFT6f44	52		150.2	160.0	10.44
CRWRLIFT6f45	54		162.0	172.5	11.26
CRWRLIFT6f46	56		174.2	185.5	12.11
CRWRLIFT6f47	57.2	2-1/4”	181.8	193.6	12.63
CRWRLIFT6f48	58		186.9	199.0	12.99
CRWRLIFT6f49	60		200.0	213.0	13.90
CRWRLIFT6f50	63.5	2-1/2”	224.0	-	15.57
CRWRLIFT6f51	66		242.0	-	16.82
CRWRLIFT6f52	68		256.9	-	17.85
CRWRLIFT6f53	70	2-3/4”	272.2	-	18.92
CRWRLIFT6f54	72		288.0	-	20.02
CRWRLIFT6f55	74		304.2	-	21.14
CRWRLIFT6f56	76.2	3”	322.6	-	22.42
