CLGR® Stainless Steel Wire Rope for Trawl 6x19+IWRC

Name: CLGR® Stainless Steel Wire Rope for Trawl 6x19+IWRC
Brand: CLGR®

CLGR® Stainless Steel Wire Rope for Trawl 6x19+IWRC, also known as AISI 304/316 6x19+IWRC Steel Wire Rope.

Stainless steel wire ropes are used for general purpose applications in corrosive environments and are resistant to abrasion and crushing. They lay of the rope is very good and with very little or non-elongation.

This stainless steel wire rope is available in both type 304 and 316 stainless steel with a 6x19 IWRC structure that ensures flexibility and abrasion resistance for hoisting, suspension cables, and winch lines. Marine Grade Stainless Steel AISI 316 has the highest corrosion protection, making this wire rope perfect for highly corrosive environments including beachfront properties with high salinity levels.

This 6x19 wire rope IWRC has better flexibility and abrasion resistance and can be used in a variety of applications such as lifting ropes, suspension cables, winch lines and more. It offers greater corrosion resistance than galvanized wire rope. Ideal for most rust-protection needs including the fishing industry, it suits prawn trawling applications like trawl warps, bridles, headlines, and foot lines.

To Get A Quote >

Overview of CLGR® Stainless Steel Wire Rope for Trawl 6x19+IWRC

Brand	CLGR®
Material	Stainless Steel 304 or 316

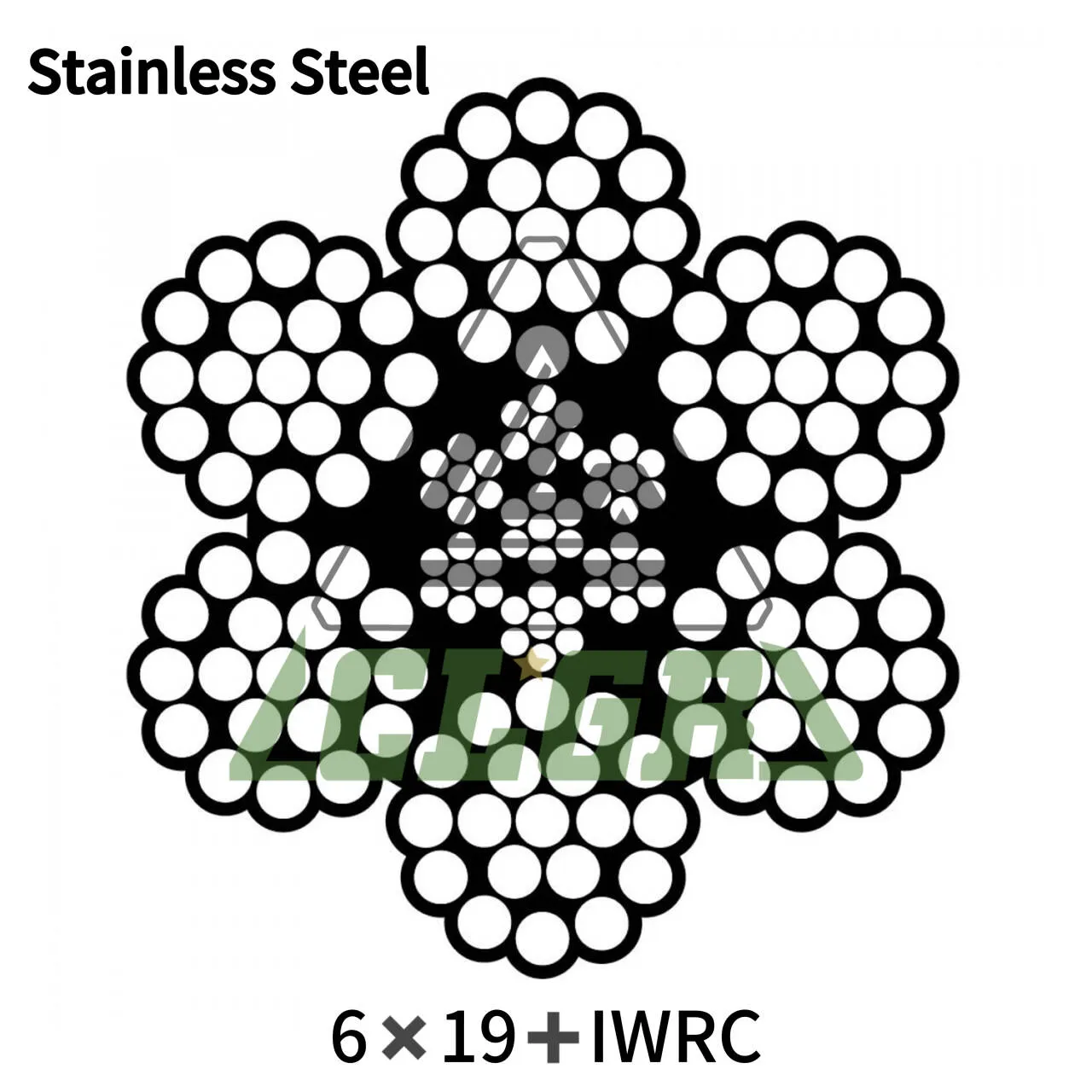

Construction	6×19+IWRC
Surface Finish	Highly Polished
Origin	China
Warning	No Return due to safety risks from used materials

Specifications of CLGR® Stainless Steel Wire Rope for Trawl 6x19+IWRC

Part No. 6×19+IWRC	DIA (mm)	Approx Weight Kg/100m)	Nominal B.S(kN)
Part No. 6×19+IWRC	DIA (mm)	Approx Weight Kg/100m)	AISI304	AlSI316
CRSST619IWR06	6.00	14.8	20.48	18.42
CRSST619IWR07	7.00	20.1	27.83	24.99
CRSST619IWR08	8.00	26.2	33.32	29.99
CRSST619IWR09	9.00	33.2	42.14	37.93
CRSST619IWR10	10.00	41.0	52.04	46.84
CRSST619IWR12	12.00	59.0	74.97	67.52
CRSST619IWR13	13.00	69.3	87.91	79.18
CRSST619IWR14	14.00	80.4	101.92	91.73
CRSST619IWR15	15.00	92.3	117.60	105.84
CRSST619IWR16	16.00	105	133.28	119.56
CRSST619IWR18	18.00	133	168.56	150.92
CRSST619IWR19	19.00	148	190.12	170.52
CRSST619IWR20	20.00	164	207.76	186.20
CRSST619IWR22	22.00	204	251.86	226.38
CRSST619IWR24	24.00	236	299.88	269.50
CRSST619IWR25	25.00	256	327.32	294.00
CRSST619IWR26	26.00	277	351.82	316.54
CRSST619IWR28	28.00	321	407.68	366.52
CRSST619IWR30	30.00	369	468.44	421.40
CRSST619IWR32	32.00	420	533.12	479.22
