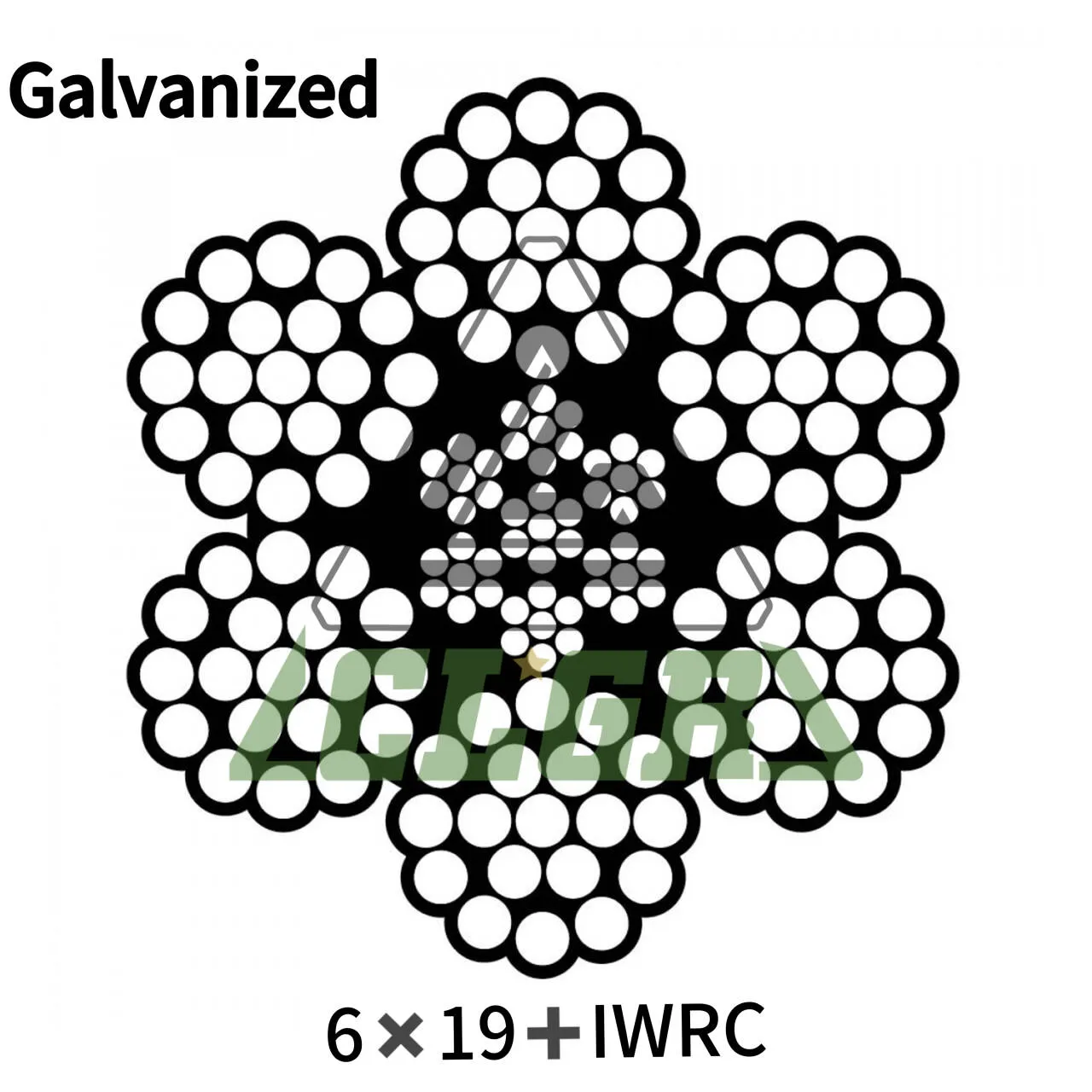

The CLGR® Steel Wire Rope 6x19+IWRC Galvanized stands out for its excellent breaking load capacity, making it suitable for various applications. It features an IWRC (independent wire rope core), which is a key design. This type of rope has become particularly popular because the larger outer wires offer better wear and abrasion resistance than other 6x19 constructions.
This structure makes it ideal for resisting abrasion and crushing when used on drums. Moreover, ropes with IWRC cores are generally more crush-resistant than those with fiber cores, making them a durable choice for heavy-duty needs.
Brand | CLGR® |
Material | Galvanized Steel |
Construction | 6×19+IWRC |
Surface Finish | Galvanized/Bright |
Origin | China |
Packing | Wooden Reel/Plastic Reel/In Coil |
Warning | No Return due to safety risks from used materials |
Part No. | DIA | Minimum Breaking Load (Metric Ton) | Approx Weight Kg/m | |||||
165Kg/mm² (1620N/mm²) | 180Kg/mm² (1770N/mm²) | 200Kg/mm² (1960N/mm²) | ||||||
FC | IWRC | FC | IWRC | IWRC | FC | IWRC | ||
CRG619IWRC06 | 6 | 1.98 | 2.22 | 2.12 | 2.39 | 2.58 | 0.131 | 0.145 |
CRG619IWRC07 | 7 | 2.70 | 3.02 | 2.88 | 3.25 | 3.51 | 0.178 | 0.197 |
CRG619IWRC08 | 8 | 3.53 | 3.93 | 3.76 | 4.26 | 4.67 | 0.233 | 0.258 |
CRG619IWRC09 | 9 | 4.46 | 4.95 | 4.76 | 5.50 | 5.94 | 0.295 | 0.328 |
CRG619IWRC10 | 10 | 5.51 | 6.10 | 5.88 | 6.65 | 7.18 | 0.364 | 0.404 |
CRG619IWRC11 | 11 | 6.67 | 7.39 | 7.11 | 8.05 | 8.69 | 0.440 | 0.490 |
CRG619IWRC12 | 12 | 7.93 | 8.79 | 8.46 | 9.58 | 10.4 | 0.524 | 0.580 |
CRG619IWRC13 | 13 | 9.31 | 10.32 | 9.93 | 11.24 | 12.1 | 0.615 | 0.684 |
CRG619IWRC14 | 14 | 10.8 | 12.0 | 11.5 | 13.2 | 14.2 | 0.713 | 0.793 |
CRG619IWRC16 | 16 | 14.1 | 15.6 | 15.0 | 17.1 | 18.4 | 0.932 | 1.04 |
CRG619IWRC18 | 18 | 17.8 | 19.8 | 19.0 | 21.5 | 23.2 | 1.18 | 1.31 |
CRG619IWRC20 | 20 | 22.0 | 24.4 | 23.5 | 26.6 | 28.7 | 1.46 | 1.62 |
CRG619IWRC22 | 22 | 26.7 | 29.1 | 28.4 | 32.2 | 34.8 | 1.76 | 1.95 |
CRG619IWRC24 | 24 | 31.7 | 35.2 | 33.8 | 38.3 | 41.3 | 2.10 | 2.33 |
CRG619IWRC26 | 26 | 37.2 | 41.3 | 39.7 | 45.0 | 48.5 | 2.46 | 2.74 |
CRG619IWRC28 | 28 | 43.2 | 47.9 | 46.1 | 52.1 | 56.3 | 2.85 | 3.16 |
CRG619IWRC30 | 30 | 49.6 | 55.0 | 52.9 | 60.0 | 64.8 | 3.28 | 3.65 |
CRG619IWRC32 | 32 | 56.4 | 62.5 | 60.2 | 68.0 | 73.7 | 3.73 | 4.15 |
CRG619IWRC34 | 34 | 63.7 | 70.6 | 67.9 | 76.9 | 83.0 | 4.21 | 4.68 |
CRG619IWRC36 | 36 | 71.4 | 79.1 | 76.1 | 86.2 | 93.1 | 4.72 | 5.25 |
CRG619IWRC38 | 38 | 79.6 | 88.2 | 84.8 | 96.1 | 103 | 5.26 | 5.85 |
CRG619IWRC40 | 40 | 88.2 | 97.7 | 94.0 | 106.0 | 115 | 5.82 | 6.48 |
CRG619IWRC42 | 42 | 97.2 | 108.0 | 104.0 | 117.0 | - | 6.42 | 7.14 |
CRG619IWRC44 | 44 | 107.0 | 118.0 | 114.0 | 129.0 | - | 7.05 | 7.84 |
CRG619IWRC46 | 46 | 117.0 | 129.0 | 124.0 | 141.0 | - | 7.70 | 8.57 |
CRG619IWRC48 | 48 | 127.0 | 141.0 | 135.0 | 153.0 | - | 8.39 | 9.33 |
CRG619IWRC50 | 50 | 138.0 | 153.0 | 147.0 | 166.0 | - | 9.10 | 10.1 |
CRG619IWRC52 | 52 | 149.0 | 165.0 | 159.0 | 180.0 | - | 9.84 | 11.0 |
CRG619IWRC54 | 54 | 161.0 | 178.0 | 171.0 | 194.0 | - | 10.6 | 11.8 |
CRG619IWRC56 | 56 | 173.0 | 192.0 | 184.0 | 209.0 | - | 11.4 | 12.7 |
CRG619IWRC58 | 58 | 185.0 | 205.0 | 198.0 | 224.0 | - | 12.2 | 13.6 |
CRG619IWRC60 | 60 | 198.0 | 220.0 | 212.0 | 240.0 | - | 13.1 | 14.6 |
CRG619IWRC62 | 62 | 212.0 | 235.0 | 226.0 | 256.0 | - | 14.0 | 15.6 |
CRG619IWRC64 | 64 | 226.0 | 250.0 | 241.0 | 273.0 | - | 14.9 | 16.6 |
CRG619IWRC66 | 66 | 240.0 | 266.0 | 256.0 | 290.0 | - | 15.9 | 17.6 |
