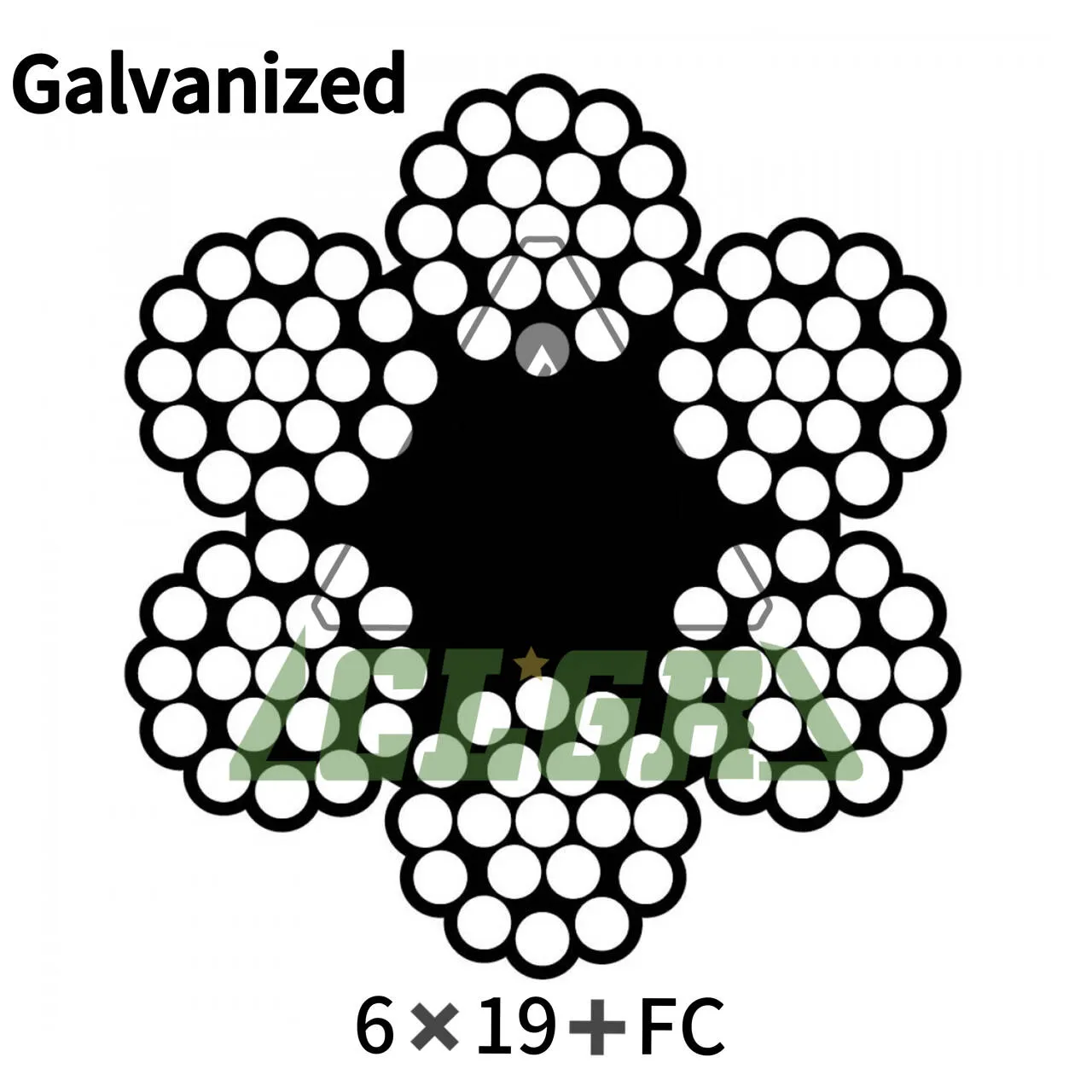

The CLGR® Steel Wire Rope 6x19 with fibre core Galvanized contains 6 strands of zinc plated steel wire. Each strand is made up of 19 filaments which surrounds the ropes central fibre core helping to make a smoother and more flexible wire rope. This galvanized wire rope belongs to the 6x19 class, which is known for flexibility and abrasion-resistance. 6x19 wire rope is the perfect general use steel cable and can be used for many applications, including as hoisting rope, suspension cables, winch lines, and more.
The 6x19 fibre core galvanized steel wire rope construction of wire rope offers a good combination of flexibility and wear resistance. Its larger outer wires also offer excellent resistance to abrasion and crushing.
We have this steel rope available in diameters from 6mm-66mm, the 6x19 wire-rope is very flexible due to its fibre rope core.
Brand | CLGR® |
Material | Galvanized Steel |
Construction | 6×19+FC |
Surface Finish | Galvanized |
Origin | China |
Packing | Wooden Reel/Plastic Reel/In Coil |
Warning | No Return due to safety risks from used materials |
Part No. | DIA | Minimum Breaking Load (Metric Ton) | Approx Weight Kg/m | |||||
165Kg/mm² (1620N/mm²) | 180Kg/mm² (1770N/mm²) | 200Kg/mm² (1960N/mm²) | ||||||
FC | IWRC | FC | IWRC | IWRC | FC | IWRC | ||
CRG619FC06 | 6 | 1.98 | 2.22 | 2.12 | 2.39 | 2.58 | 0.131 | 0.145 |
CRG619FC07 | 7 | 2.70 | 3.02 | 2.88 | 3.25 | 3.51 | 0.178 | 0.197 |
CRG619FC08 | 8 | 3.53 | 3.93 | 3.76 | 4.26 | 4.67 | 0.233 | 0.258 |
CRG619FC09 | 9 | 4.46 | 4.95 | 4.76 | 5.50 | 5.94 | 0.295 | 0.328 |
CRG619FC10 | 10 | 5.51 | 6.10 | 5.88 | 6.65 | 7.18 | 0.364 | 0.404 |
CRG619FC11 | 11 | 6.67 | 7.39 | 7.11 | 8.05 | 8.69 | 0.440 | 0.490 |
CRG619FC12 | 12 | 7.93 | 8.79 | 8.46 | 9.58 | 10.4 | 0.524 | 0.580 |
CRG619FC13 | 13 | 9.31 | 10.32 | 9.93 | 11.24 | 12.1 | 0.615 | 0.684 |
CRG619FC14 | 14 | 10.8 | 12.0 | 11.5 | 13.2 | 14.2 | 0.713 | 0.793 |
CRG619FC16 | 16 | 14.1 | 15.6 | 15.0 | 17.1 | 18.4 | 0.932 | 1.04 |
CRG619FC18 | 18 | 17.8 | 19.8 | 19.0 | 21.5 | 23.2 | 1.18 | 1.31 |
CRG619FC20 | 20 | 22.0 | 24.4 | 23.5 | 26.6 | 28.7 | 1.46 | 1.62 |
CRG619FC22 | 22 | 26.7 | 29.1 | 28.4 | 32.2 | 34.8 | 1.76 | 1.95 |
CRG619FC24 | 24 | 31.7 | 35.2 | 33.8 | 38.3 | 41.3 | 2.10 | 2.33 |
CRG619FC26 | 26 | 37.2 | 41.3 | 39.7 | 45.0 | 48.5 | 2.46 | 2.74 |
CRG619FC28 | 28 | 43.2 | 47.9 | 46.1 | 52.1 | 56.3 | 2.85 | 3.16 |
CRG619FC30 | 30 | 49.6 | 55.0 | 52.9 | 60.0 | 64.8 | 3.28 | 3.65 |
CRG619FC32 | 32 | 56.4 | 62.5 | 60.2 | 68.0 | 73.7 | 3.73 | 4.15 |
CRG619FC34 | 34 | 63.7 | 70.6 | 67.9 | 76.9 | 83.0 | 4.21 | 4.68 |
CRG619FC36 | 36 | 71.4 | 79.1 | 76.1 | 86.2 | 93.1 | 4.72 | 5.25 |
CRG619FC38 | 38 | 79.6 | 88.2 | 84.8 | 96.1 | 103 | 5.26 | 5.85 |
CRG619FC40 | 40 | 88.2 | 97.7 | 94.0 | 106.0 | 115 | 5.82 | 6.48 |
CRG619FC42 | 42 | 97.2 | 108.0 | 104.0 | 117.0 | - | 6.42 | 7.14 |
CRG619FC44 | 44 | 107.0 | 118.0 | 114.0 | 129.0 | - | 7.05 | 7.84 |
CRG619FC46 | 46 | 117.0 | 129.0 | 124.0 | 141.0 | - | 7.70 | 8.57 |
CRG619FC48 | 48 | 127.0 | 141.0 | 135.0 | 153.0 | - | 8.39 | 9.33 |
CRG619FC50 | 50 | 138.0 | 153.0 | 147.0 | 166.0 | - | 9.10 | 10.1 |
CRG619FC52 | 52 | 149.0 | 165.0 | 159.0 | 180.0 | - | 9.84 | 11.0 |
CRG619FC54 | 54 | 161.0 | 178.0 | 171.0 | 194.0 | - | 10.6 | 11.8 |
CRG619FC56 | 56 | 173.0 | 192.0 | 184.0 | 209.0 | - | 11.4 | 12.7 |
CRG619FC58 | 58 | 185.0 | 205.0 | 198.0 | 224.0 | - | 12.2 | 13.6 |
CRG619FC60 | 60 | 198.0 | 220.0 | 212.0 | 240.0 | - | 13.1 | 14.6 |
CRG619FC62 | 62 | 212.0 | 235.0 | 226.0 | 256.0 | - | 14.0 | 15.6 |
CRG619FC64 | 64 | 226.0 | 250.0 | 241.0 | 273.0 | - | 14.9 | 16.6 |
CRG619FC66 | 66 | 240.0 | 266.0 | 256.0 | 290.0 | - | 15.9 | 17.6 |
