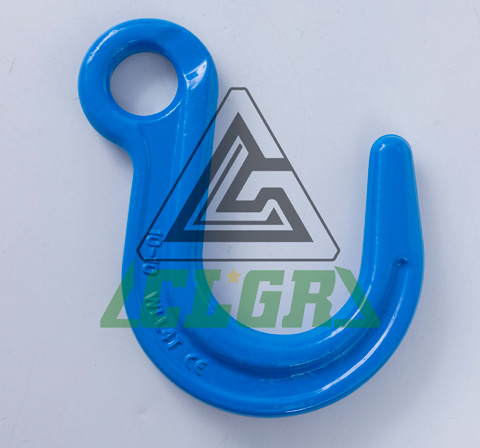

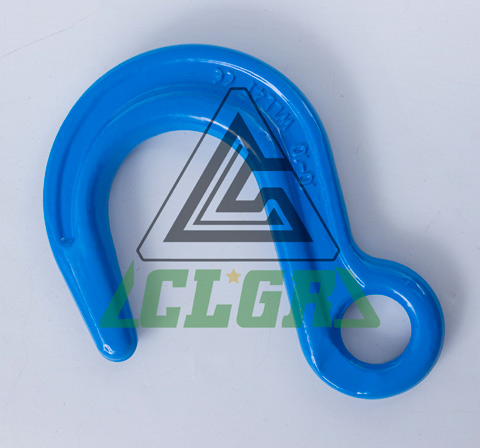

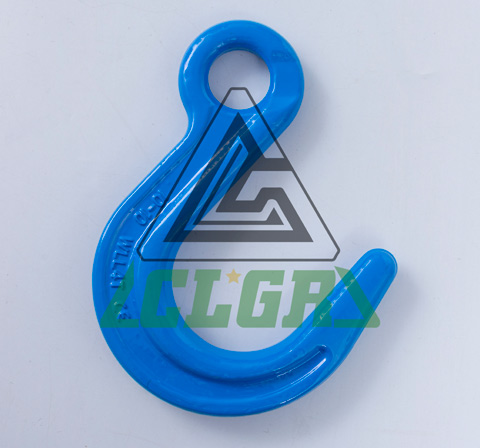

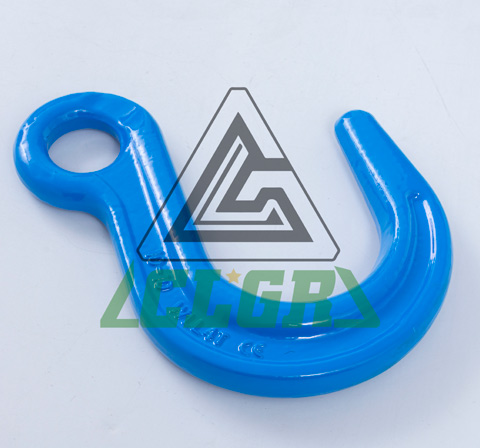

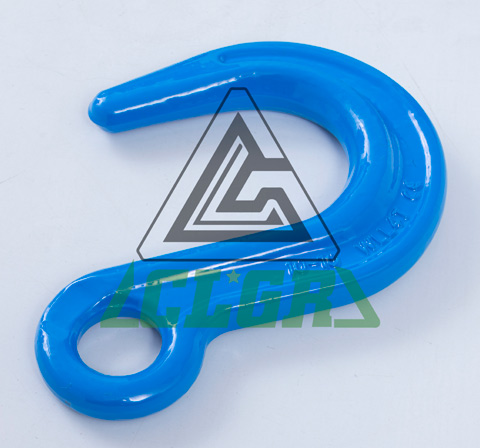

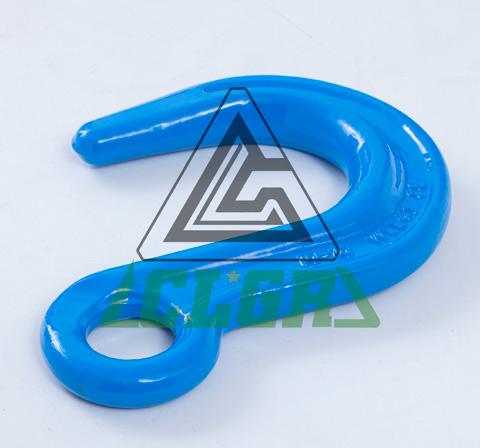

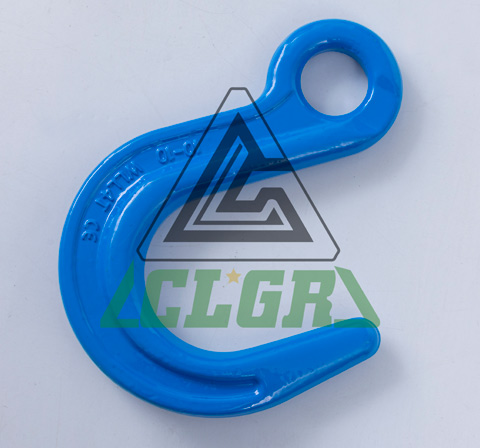

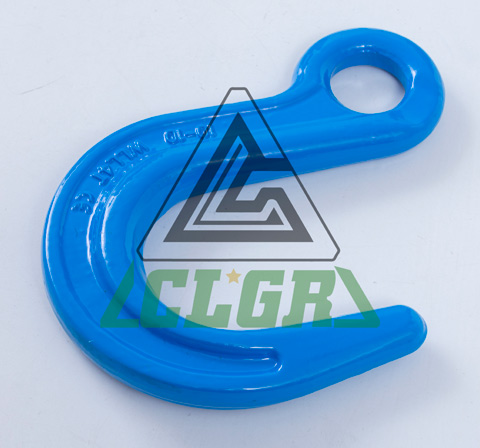

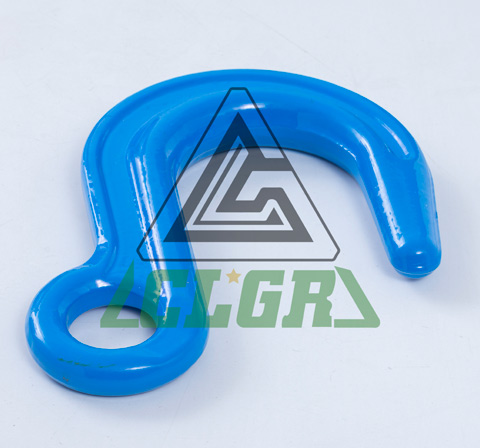

CLGR® Forged Alloy G100 Eye Foundry Hooks, also referred to as Large opening eye hooks with flat grade 100, Big Opening Eye Sling Hook.
It forged from Super Alloy Steel. Eye Foundry Hooks feature a large mouth opening, designed for specific purposes. With an eye-style connection, eye foundry hooks are compatible with chain slings, wire rope slings, and synthetic slings when properly rigged.
Hooks without a latch are generally used for specific applications, therefore where there is a risk of the hooks becoming detached during use, a risk assessment shall be conducted in accordance with Section 11 of AS 3776.
Brand | CLGR® |
Size | 6mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm |
Material | Super Alloy Steel |
Safety Factor | 4: 1 |
Processing | Drop Forged / Heat Treatment |
Surface Finish | Powder Coating |
Note | Color code can be made according to customers' requirements. |

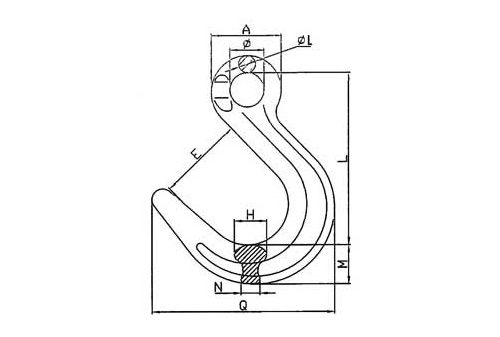

Part No. | WEIGHT/kg | WLL/T | B.L./T | A | E | H | M | N | φ | φ1 | Q | L |
10CREFH6 | 0.38 | 1.4 | 5.6 | 43.3 | 49 | 17 | 19 | 10.8 | 20 | 10 | 100 | 103 |
10CREFH8 | 0,71 | 2.5 | 10 | 49 | 62 | 19 | 27 | 12 | 24 | 12 | 128 | 120,6 |
10CREFH10 | 1.36 | 4 | 16 | 63,6 | 73 | 25 | 30 | 15 | 31.5 | 15 | 152,5 | 153 |
10CREFH13 | 2.57 | 6.7 | 26.8 | 84 | 90 | 33 | 39 | 23 | 44 | 19 | 183 | 182 |
10CREFH16 | 3.96 | 10 | 40 | 97 | 105 | 37 | 42 | 26.5 | 49 | 22 | 218 | 216 |
10CREFH20 | 7.3 | 16 | 64 | 117.4 | 114 | 46 | 57 | 32 | 60 | 26 | 251 | 247 |
10CREFH22 | 11.4 | 19 | 76 | 130 | 123 | 60 | 70 | 36 | 64 | 31 | 274 | 275 |
10CREFH26 | 17.7 | 26.5 | 106 | 145±3 | 140 | 68 | 82 | 42 | 70 | 35 | 320 | 300 |
