CLGR® Stainless Steel Delta Anchor – China Ship Anchor Manufacturer

Name: CLGR® Stainless Steel Delta Anchor – China Ship Anchor Manufacturer
Brand: CLGR®

The Stainless Steel Delta Anchor is crafted from premium 304 or 316 marine-grade stainless steel, engineered to withstand decades of exposure to harsh saltwater environments while maintaining exceptional corrosion resistance.

304 stainless steel offers reliable durability for standard marine conditions, while 316 stainless steel provides enhanced protection against pitting and crevice corrosion in highly aggressive seawater or polluted harbors—thanks to its added molybdenum content.

It has a high-tensile shank to ensure reliability and performance that stands out in any marine environment, and the lead - ballasted tip provides a low center of gravity and self - righting geometry to ensure rapid setting.

To Get A Quote >

CLGR® Stainless Steel Delta Anchor Company

Overview of CLGR® Stainless Steel Delta Anchor

Brand	CLGR®
Material	Stainless Steel AISI304 or AISI316
Function	Ship Mooring
Type	Stainless Steel Delta Stockless Anchor
Surface Finish	Black Painting, Hot Dip Galvanized
Origin	China

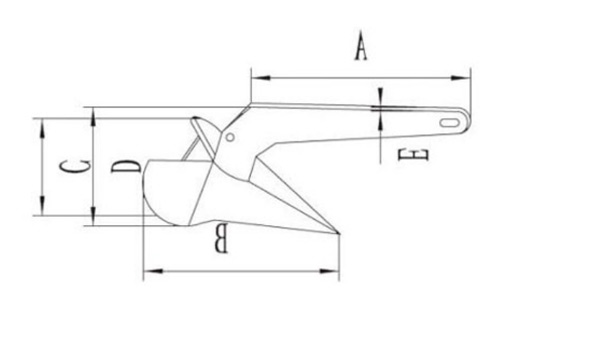

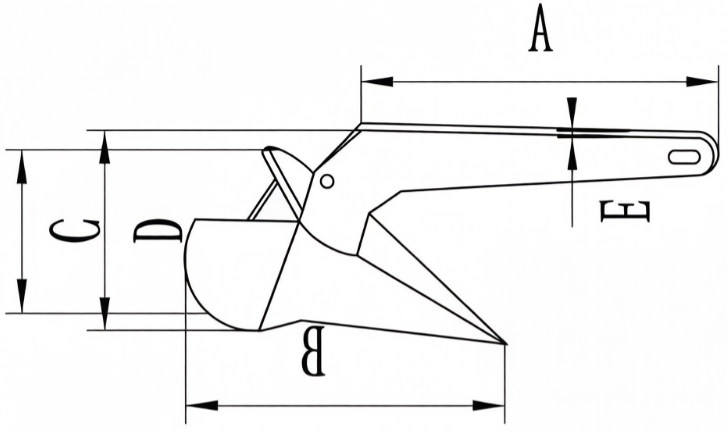

Specifications of CLGR® Stainless Steel Delta Anchor

Part No.	A(mm)	B (mm)	C(mm)	D(mm)	E(mm)
CRSSDA350	350	340	265	230	8
CRSSDA520	520	400	275	270	10
CRSSDA530	530	420	280	275	10
CRSSDA570	570	450	290	280	10
CRSSDA630	630	480	340	335	12
CRSSDA640	640	500	350	340	12
CRSSDA480	480	510	355	350	14
CRSSDA610	610	520	400	360	16
CRSSDA520	520	650	520	450	16
