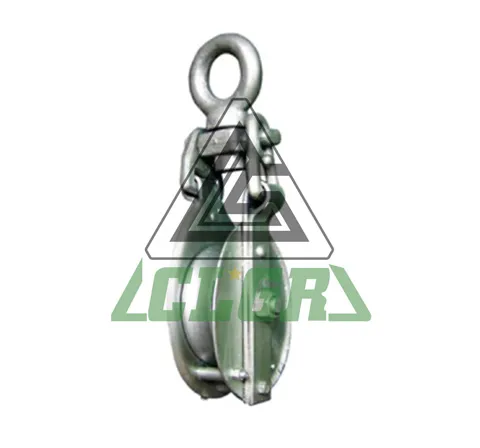

CLGR® Snatch Block with Eye Self-Locking for Manila Rope is designed for general lifting purposes and onboard ship applications, offering reliable performance in diverse operational environments.
A standout feature is its swivelling oval eye, which is both swivelling and jointedly attached to the cross head, enabling flexible adjustment to adapt to different lifting angles and force directions.
Crafted from high-quality materials, the block features structural steel for the main frame, with forged steel oval eyes and cross head for superior strength.
The block is equipped with covering side plates reinforced by separate steel supports, ensuring structural stability during heavy-duty use.
It incorporates key hole type locking for secure operation, preventing accidental disengagement during lifting.
Brand | China CLGR® |
Material | Steel Shells |
Size | 4″, 6″, 8″, 10″, 12″ |
Type | Self-Locking |
WLL | 1200, 2400, 4800, 6600, 9600 |
Part No. | Size | W.L.L | Dia of Rope | Net Weight |
in | lbs | in | kg | |
CRWHSL204 | 4″ | 1200 | 3/4″ | 1.9 |
CRWHSL206 | 6″ | 2400 | 7/8″ | 3.9 |
CRWHSL208 | 8″ | 4800 | 1-1/8″ | 5.8 |
CRWHSL210 | 10″ | 6600 | 1-1/4″ | 13 |
CRWHSL212 | 12″ | 9600 | 1-1/2″ | 19 |
