CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type

Name: CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type
Brand: CLGR®

CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type, also known as Wooden Pulley Blocks, Wood Snatch Block and Wood Shell Blocks and Regular Wooden Shell Snatch Block with Eye.

Wooden Snatch Block Self-Locking with Eye is made of a wooden shell and hot-dipped galvanized steel parts. This block is engineered to work with ropes, providing smooth rope movement through its wooden sheave to reduce friction during operation.

For further product information, please feel free to contact us at your convenience.

To Get A Quote >

CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type Companies

Overview of CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type

Brand Name	CLGR®
Sheave	Single Sheave Block
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Material	Wood/Carbon Steel
Size	6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

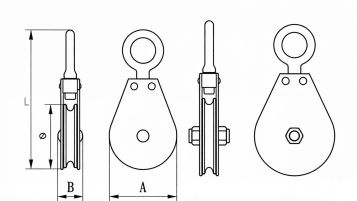

Specifications of CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type

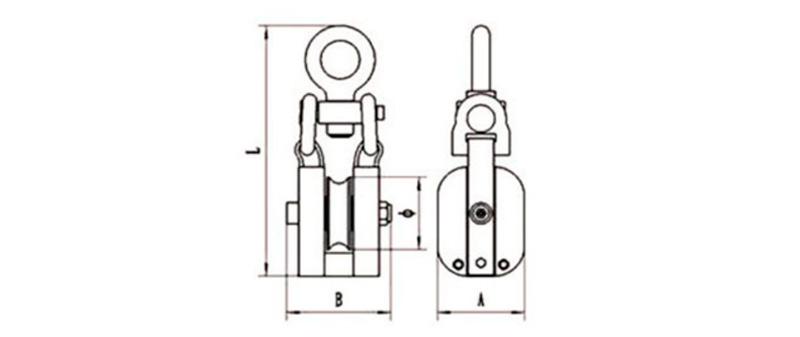

CLGR® Wooden Snatch Block Self-Locking with Eye WSLE Type Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWSLE04	6″	2400	7/8″	85	294	100	120	3.55
CRWSLE05	8″	4800	11/8″	115	349	133	126	6
CRWSLE06	10″	6600	11/4″	145	428	160	156	12.25
CRWSLE07	12″	7600	11/2″	175	478	185	165	16
