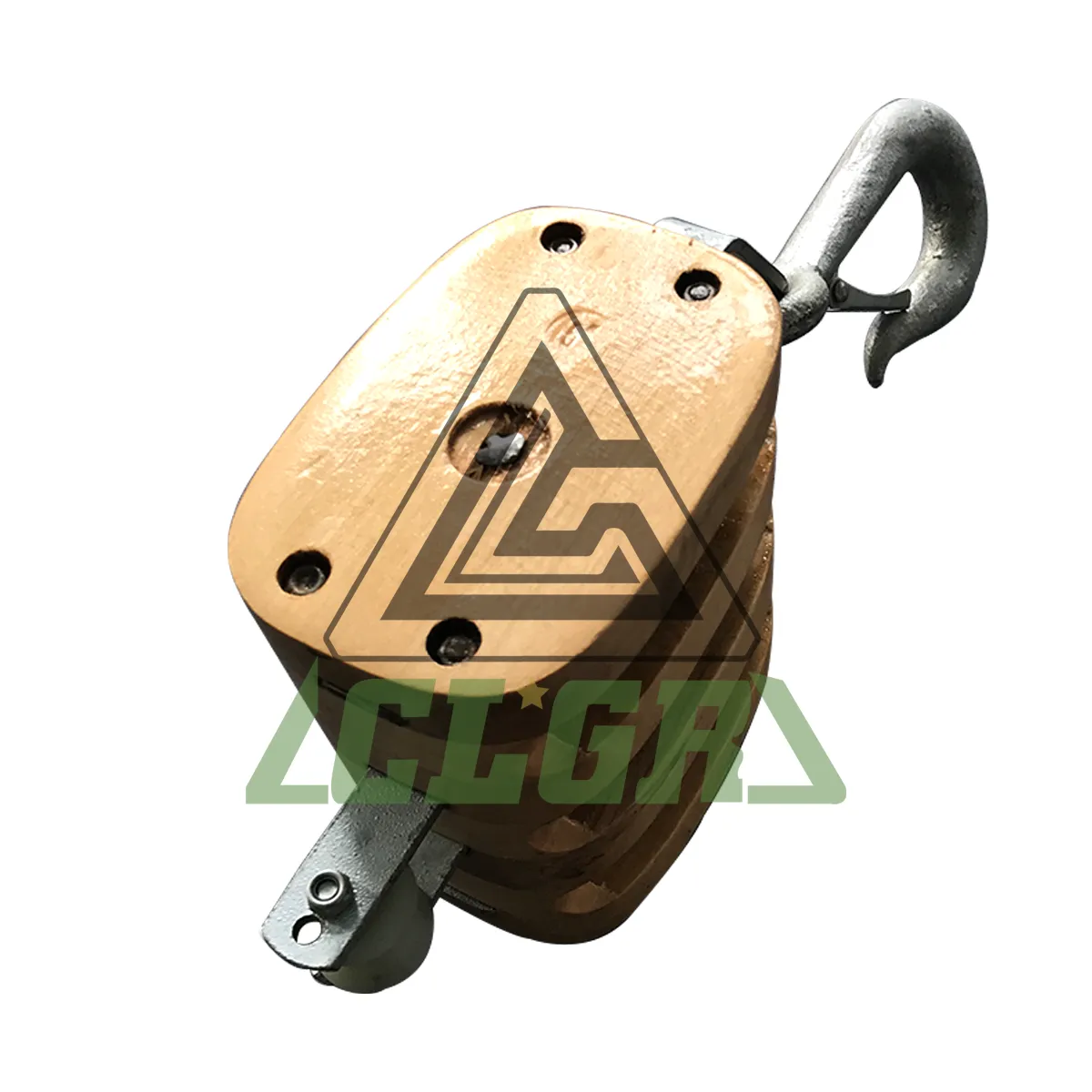

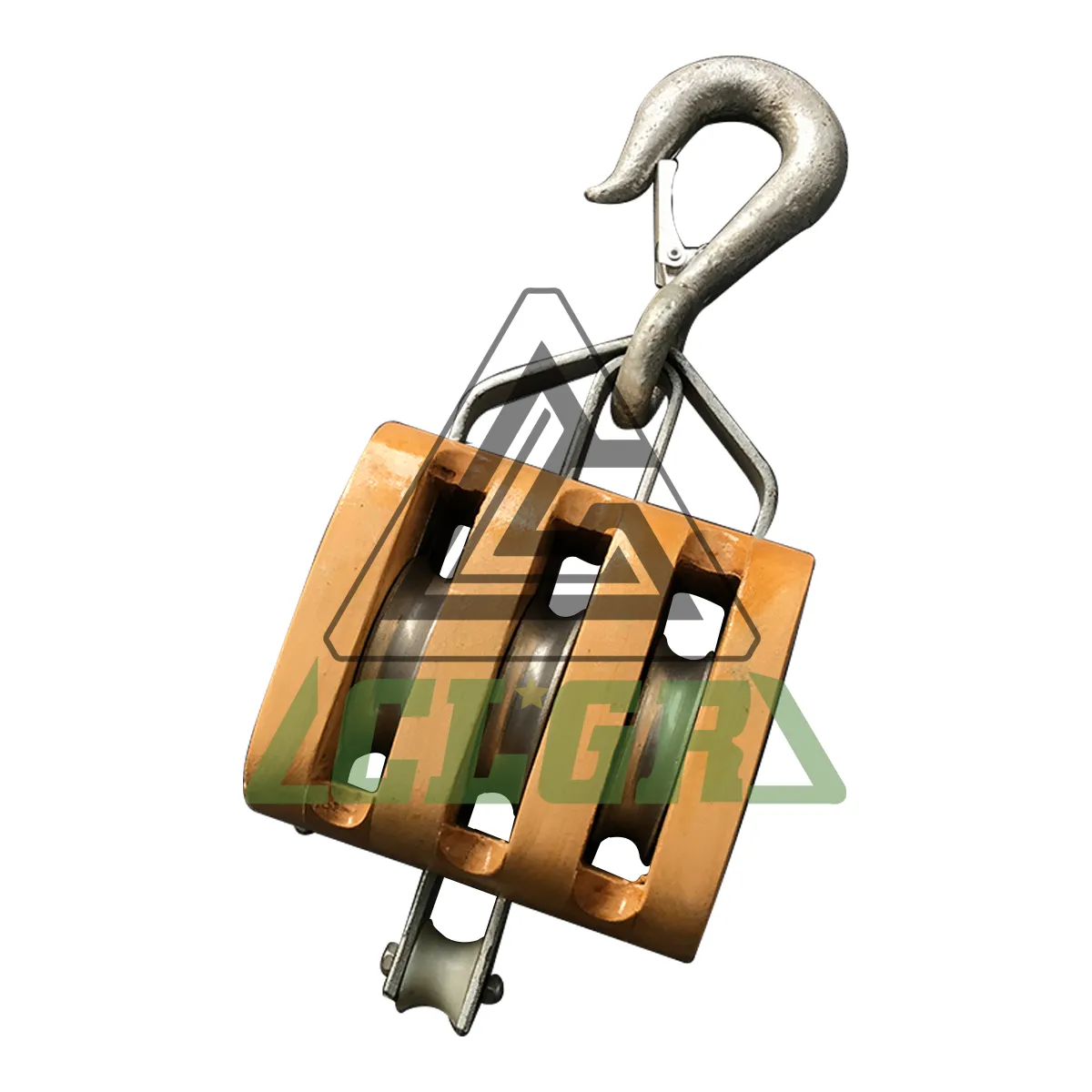

CLGR® Regular Wood Shell Block with Hook Triple Sheave

Name: CLGR® Regular Wood Shell Block with Hook Triple Sheave
Brand: CLGR®

CLGR® Regular Wood Shell Block with Hook Triple Sheave, also known as Triple Wood Shell Block with Loose Hook, and Regular Wood Shell Block.

Boasting hard wood shells, the Regular Wood Shell Block Triple Sheave comes with a reverse eye round loose hook fitting type, while its drop forged fittings contribute to increased strength.

It can be equipped with bronze self-lubricating bushings for smooth operation, and all metal parts are galvanized to offer reliable corrosion resistance.

Available in Single, Double and Triple sheaves.

Ideal for fishing boats, marine applications and light duty haul work.

To Get A Quote >

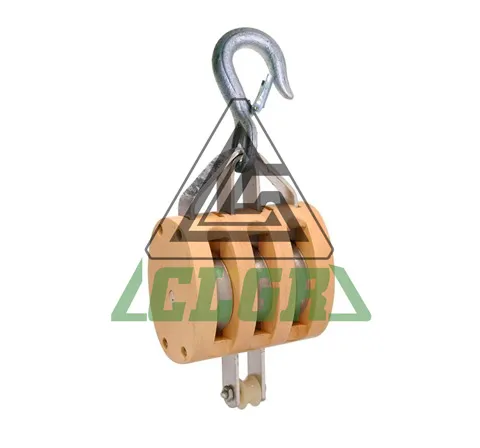

CLGR® Regular Wood Shell Block with Hook Triple Sheave Factories

Overview of CLGR® Regular Wood Shell Block with Hook Triple Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Sheave	Triple Sheave
Designed for Use With	Rope
End Fitting	Fixed Hook with Latch
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Shell Block with Hook Triple Sheave

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBHTS-3	3″	1200	3/8″	45	255	61.5	104.5	1.3
CRWBHTS-4	4″	1800	1/2″	57	301	77	120.5	2.1
CRWBHTS-5	5″	2400	5/8″	76	374	99	150	3.5
CRWBHTS-6	6″	3200	3/4″	90	441	118	175.5	5.8
CRWBHTS-8	8″	4800	1″	121	557	138	187	11
CRWBHTS-10	10″	8000	11/8″	158	620	190	244	16
CRWBHTS-12	12″	10000	11/4″	196	672	246	261	26
