CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type

Name: CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type
Brand: CLGR®

CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type, also known as Wooden Shell Snatch Block, and Wood Snatch Pulley with Hook, Manila Rope Block with Hook, Wood Shell Snatch Block with Swivel Latch Hook.

The Wooden Snatch Block with Self-Locking Hook features a structure centered around a wooden sheave, paired with a robust self-locking hook for secure connection.

This block serves as a practical tool for rope-based lifting and pulling tasks, leveraging its wooden sheave to reduce friction on ropes, thereby protecting the rope surface and extending its service life.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

The sheaves and fittings are galvanised to protect against corrosion.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

To Get A Quote >

CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type Application

Overview of CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type

Brand Name	CLGR®
Sheave	Single Sheave Block
Type	U.S. Fed. Spec.
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Material	Wood/Carbon Steel
Size	6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

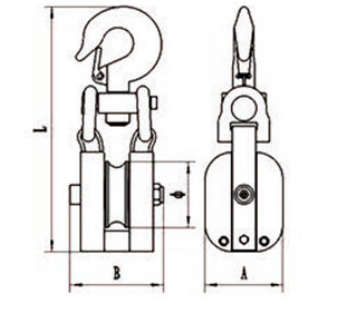

Specifications of CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type

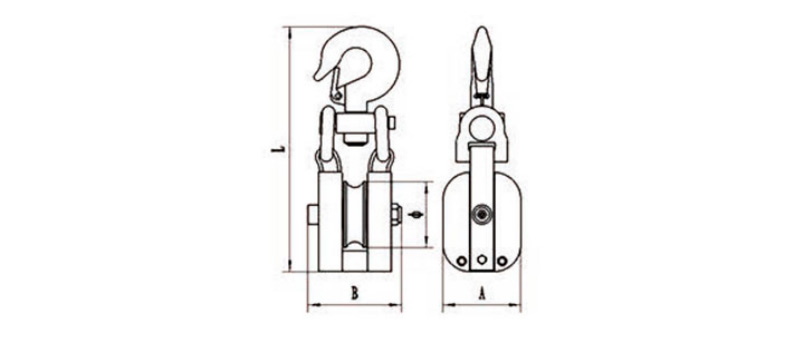

CLGR® Wooden Snatch Block with Self-Locking Hook WSLH Type Diagram

Part. No	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWSLH06	6″	2400	7/8″	85	315	100	120	3.95
CRWSLH07	8″	4800	11/8″	115	364	133	126	6.4
CRWSLH08	10″	6600	11/4″	145	488	160	156	12.5
CRWSLH09	12″	7600	11/2″	175	548	185	165	17
