CLGR® Regular Wood Shell Block with Hook Double Sheave

Name: CLGR® Regular Wood Shell Block with Hook Double Sheave
Brand: CLGR®

CLGR® Regular Wood Shell Block with Hook Double Sheave, also known as Double Wood Shell Block with Loose Hook, and Regular Wood Shell Block.

Boasting hard wood shells, the Regular Wood Shell Block Double Sheave comes with a reverse eye round loose hook fitting type, while its drop forged fittings contribute to increased strength.

It can be equipped with bronze self-lubricating bushings for smooth operation, and all metal parts are galvanized to offer reliable corrosion resistance.

Available in Single, Double and Triple sheaves.

Ideal for fishing boats, marine applications and light duty haul work.

To Get A Quote >

clgr regular wood shell block with hook double sheave

clgr regular wood shell block with hook double sheave china manufacturer

clgr regular wood shell block with hook double sheave china supplier

Overview of CLGR® Regular Wood Shell Block with Hook Double Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Sheave	Double Sheave
Designed for Use With	Rope
End Fitting	Fixed Hook with Latch
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Shell Block with Hook Double Sheave

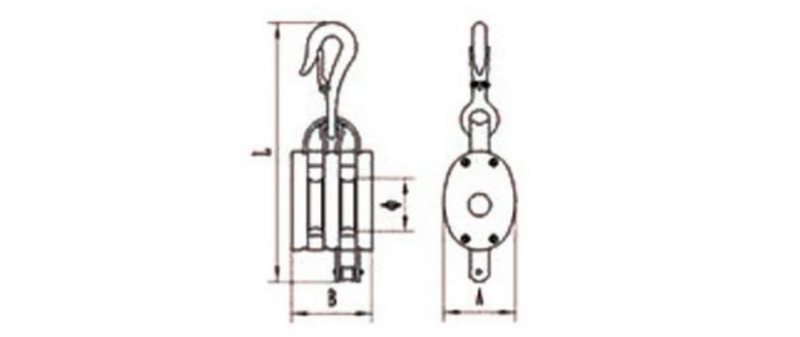

CLGR® Regular Wood Shell Block with Hook Double Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBHDS-3	3″	800	3/8″	45	255	61.5	74.5	1
CRWBHDS-4	4″	1400	1/2″	57	301	77	86	1.7
CRWBHDS-5	5″	1800	5/8″	76	374	99	107	2.7
CRWBHDS-6	6″	2500	3/4″	90	441	118	124.5	4.9
CRWBHDS-8	8″	3800	1′	121	557	138	132.5	8.9
CRWBHDS-10	10″	6000	11/8″	158	620	190	174	15.5
CRWBHDS-12	12″	8000	11/4″	196	672	246	186	21

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
