CLGR® Regular Wood Block Single Sheave Without Shackle

Name: CLGR® Regular Wood Block Single Sheave Without Shackle
Brand: CLGR®

CLGR® Regular Wood Block Single Sheave Without Shackle, also referred to as Regular Wooden Pulley Block, and Wooden Pulley Sheave.

Regular Wood Block Single Sheave is made of wooden shell and hot dipped galvanized steel parts to protect against corrosion.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

If you want to know further product information, please feel free to contact us at your convenience.

To Get A Quote >

clgr regular wood block single sheave without shackle wholesale manufacturers_

clgr regular wood block single sheave without shackle

clgr regular wood block single sheave without shackle wholesal supplier

Overview of Regular Wood Block Single Sheave Without Shackle

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of Regular Wood Block Single Sheave Without Shackle

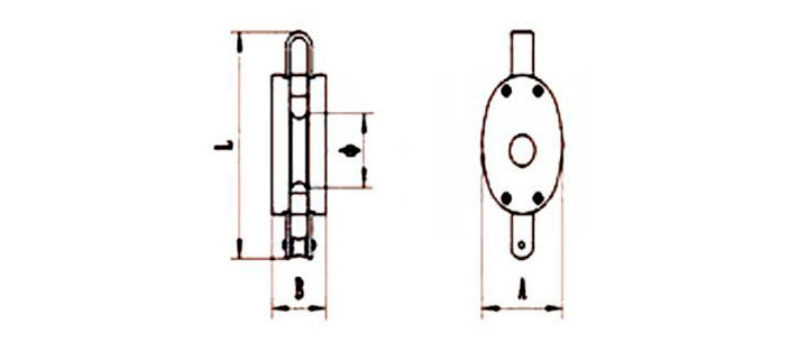

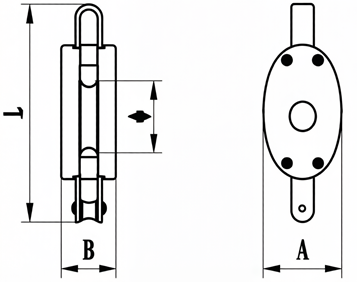

CLGR® Regular Wood Block Single Sheave Without Shackle Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBSSWS-3	3″	500	3/8″	45	140	61.5	44.5	0.5
CRWBSSWS-4	4″	1000	1/2″	57	173	77	51.5	0.7
CRWBSSWS-5	5″	1200	5/8″	76	219	99	64	1
CRWBSSWS-6	6″	1800	3/4″	90	251	118	73.5	1.65
CRWBSSWS-8	8″	2800	1″	121	327	138	78	3.45
CRWBSSWS-10	10″	4000	11/8″	158	392	190	104	5.6
CRWBSSWS-12	12″	5000	11/4″	196	438	246	111	8.4

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
