CLGR® Wooden Snatch Block with Eye WSBE Type

Name: CLGR® Wooden Snatch Block with Eye WSBE Type
Brand: CLGR®

CLGR® Wooden Snatch Block with Eye, also known as Wooden Shell Snatch Block, and Wood Snatch Pulley with Eye.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

The sheaves and fittings are galvanised to protect against corrosion.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

If you want to know further product information, please feel free to contact us at your convenience.

To Get A Quote >

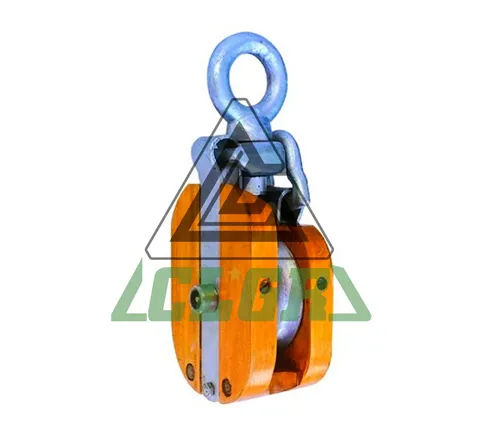

CLGR® Wooden Snatch Block with Eye WSBE Type Function

Overview of CLGR® Wooden Snatch Block with Eye WSBE Type

Brand Name	CLGR®
Sheave	Single Sheave Block
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Material	Wood/Carbon Steel
Size	6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

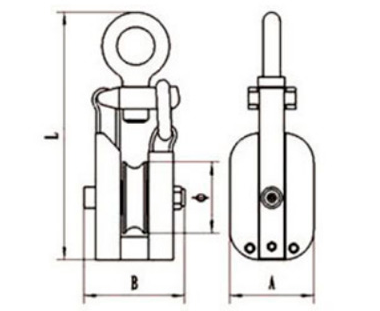

Specifications of CLGR® Wooden Snatch Block with Eye WSBE Type

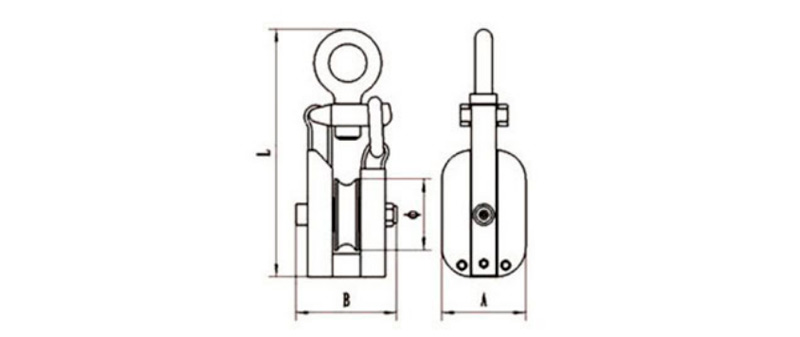

CLGR® Wooden Snatch Block with Eye WSBE Type Diagram

Part. No	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWSBE01	6″	2400	7/8″	85	294	100	120	3.55
CRWSBE02	8″	4800	11/8″	115	349	133	126	5.9
CRWSBE03	10″	6600	11/4″	145	428	160	156	10.5
CRWSBE04	12″	7600	11/2″	175	478	185	165	15.5
