CLGR® Regular Wood Block with Swivel Eye Double Sheave

Name: CLGR® Regular Wood Block with Swivel Eye Double Sheave
Brand: CLGR®

CLGR® Regular Wood Block with Swivel Eye Double Sheave, also known as Regular Wooden Pulley Block - Swivel Eye, Regular Wood Shell Block.

Regular Wood Block Double Sheave is made of wooden shell and hot dipped galvanized steel parts to protect against corrosion.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

If you want to know further product information, please feel free to contact us at your convenience.

To Get A Quote >

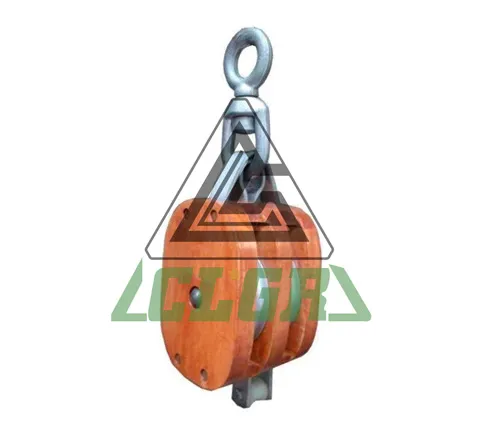

CLGR® Regular Wood Block with Swivel Eye Double Sheave Design

Overview of CLGR® Regular Wood Block with Swivel Eye Double Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Hot Dipped Galvanized
Sheave	Double Sheave
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block with Swivel Eye Double Sheave

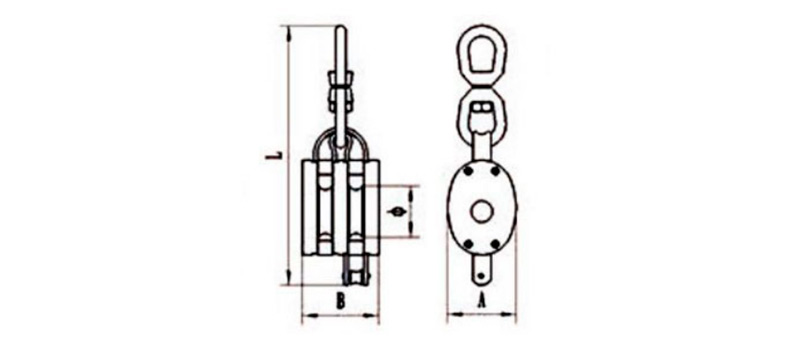

CLGR® Regular Wood Block with Swivel Eye Double Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBSED-01	3″	800	3/8″	45	246.5	61.5	74.5	1.1
CRWBSED-02	4″	1400	1/2″	57	296	77	86	2
CRWBSED-03	5″	1800	5/8″	76	371	99	107	3
CRWBSED-04	6″	2500	3/4″	90″	404.5	118	124.5	4.8
CRWBSED-05	8″	3800	1″	121	529	138	132.5	9
CRWBSED-06	10″	7700	11/8″	158	592	190	174	19.5
CRWBSED-07	12″	10600	11/4″	196	693	246	186	28.5
