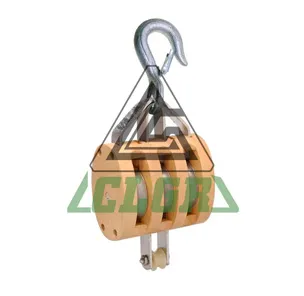

CLGR® Regular Wood Block Triple Sheave with Swivel Hook

Name: CLGR® Regular Wood Block Triple Sheave with Swivel Hook
Brand: CLGR®

CLGR® Regular Wood Block Triple Sheave with Swivel Hook, also known as Regular Wood Shell Block Triple Sheave, Wooden Pulley Blocks Triple Sheave.

Wooden Block Triple Sheave with Swivel Hook is made of a wooden shell and hot-dipped galvanized steel parts.

This block is engineered to work with ropes, providing smooth rope movement through its wooden sheave to reduce friction during operation.

For further product information, please feel free to contact us at your convenience.

To Get A Quote >

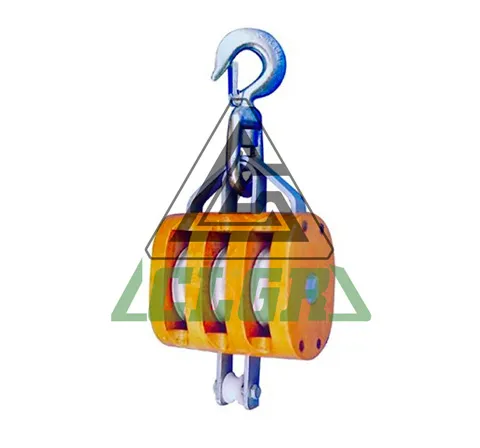

CLGR® Regular Wood Block Triple Sheave with Swivel Hook Supplier

Overview of CLGR® Regular Wood Block Triple Sheave with Swivel Hook

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Hot Dipped Galvanized
Sheave	Triple Sheave
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block Triple Sheave with Swivel Hook

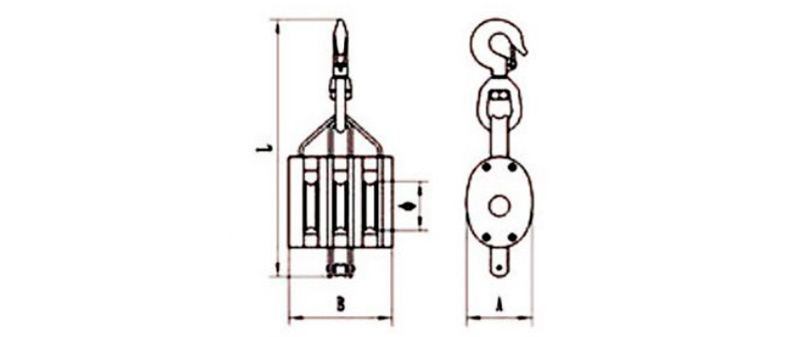

CLGR® Regular Wood Block Triple Sheave with Swivel Hook Diagram

Part No.	Size	SWL/LBS	Diam	ø	L	A	B	Weight (KG)
CRWBTSH01	3″	1200	3/8″	45	271	61.5	104.5	1.95
CRWBTSH02	4″	1800	1/2″	57	334	77	120.5	3.25
CRWBTSH03	5″	2400	5/8″	76	400	99	150	3.8
CRWBTSH04	6″	3200	3/4″	90	468.5	118	175.5	7.8
CRWBTSH05	8″	4800	1″	121	570	138	187	12.5
CRWBTSH06	10″	8000	11/8″	158	702	190	244	20
CRWBTSH07	12″	10000	11/4″	196	754	246	261	32.5
