CLGR® Regular Wood Block with Shackle Double Wheel/Sheave

Name: CLGR® Regular Wood Block with Shackle Double Wheel/Sheave
Brand: CLGR®

CLGR® Regular Wood Block with Shackle Double Wheel/Sheave can change the direction of the traction cable of the pulley and the pulley block and lift or move the moving object many times.

Some customers also called Double Wood Shell Block with Shackle, Regular Wood Shell Block Double Sheave with anchor shackle.

Regular Wood Block is made of wooden shell and hot dipped galvanized steel parts to protect against corrosion.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

The shells are varnished wood for a traditional look.

Available in Single, Double and Triple sheaves.

Ideal for fishing boats, marine applications and light duty haul work.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

To Get A Quote >

CLGR® Regular Wood Block with Shackle Double Wheel Sheave Function

Overview of CLGR® Regular Wood Block with Shackle Double Wheel/Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Sheave	Double Sheave
Designed for Use With	Rope
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block with Shackle Double Wheel/Sheave

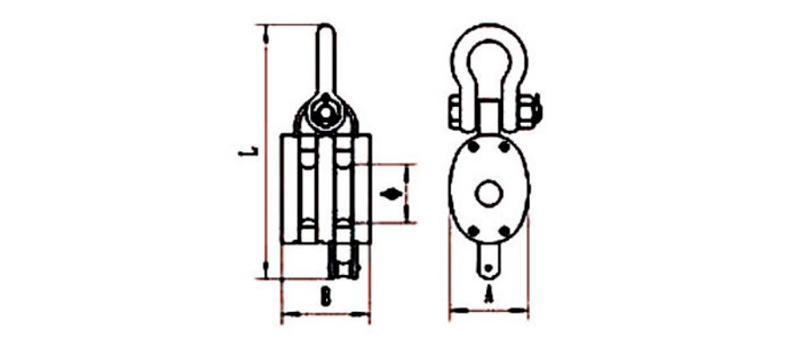

CLGR® Regular Wood Block with Shackle Double Wheel Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBSDS-3	3″	800	3/8″	45	211.5	61.5	74.5	1.1
CRWBSDS-4	4″	1400	1/2″	57	259	77	86	1.56
CRWBSDS-5	5″	1800	5/8″	76	302.5	99	107	2.75
CRWBSDS-6	6″	2500	3/4″	90	350.5	118	124.5	4.6
CRWBSDS-8	8″	3800	1″	121	473	138	132.5	9.6
CRWBSDS-10	10″	7700	11/8″	158	555	190	174	14.5
CRWBSDS-12	12″	10600	11/4″	196	196	246	186	24.5
