CLGR® Regular Wood Block with Swivel Eye Single Sheave

Name: CLGR® Regular Wood Block with Swivel Eye Single Sheave
Brand: CLGR®

CLGR® Regular Wood Block with Swivel Eye Single Sheave, also known as Regular Wooden Pulley Block - Swivel Eye, Regular Wood Shell Block.

CLGR® Wooden Block Single Sheave with Swivel Eye is made of a wooden shell and hot-dipped galvanized steel parts.

Wooden Block Single Sheave with Swivel Eye kind is engineered to work with ropes, providing smooth rope movement through its wooden sheave to reduce friction during operation.

For further product information of marine pulleys and blocks, please feel free to contact us at your convenience.

To Get A Quote >

CLGR® Regular Wood Block with Swivel Eye Single Sheave

CLGR® Regular Wood Block with Swivel Eye Single Sheave China

CLGR® Regular Wood Block with Swivel Eye Single Sheave China Manufacturer

CLGR® Regular Wood Block with Swivel Eye Single Sheave China Supplier

 

Overview of CLGR® Regular Wood Block with Swivel Eye Single Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Hot Dipped Galvanized
Sheave	Single Sheave
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Block with Swivel Eye Single Sheave

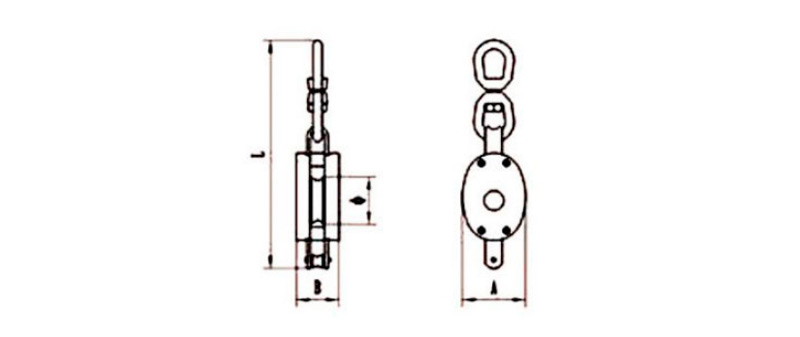

CLGR® Regular Wood Block with Swivel Eye Single Sheave Diagram

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBSES-11	3″	500	3/8″	45	215	61.5	44.5	1
CRWBSES-12	4″	1000	1/2″	57	263.5	77	51.5	1.25
CRWBSES-13	5″	1200	5/8″	76	361	99	64	2.15
CRWBSES-14	6″	1800	3/4″	90	391	118	73.5	2.5
CRWBSES-15	8″	2800	1″	121	499	138	78	4.5
CRWBSES-16	10″	5000	11/8″	158	561	190	104	7.65
CRWBSES-17	12″	6800	11/4″	196	626	246	111	18.5
