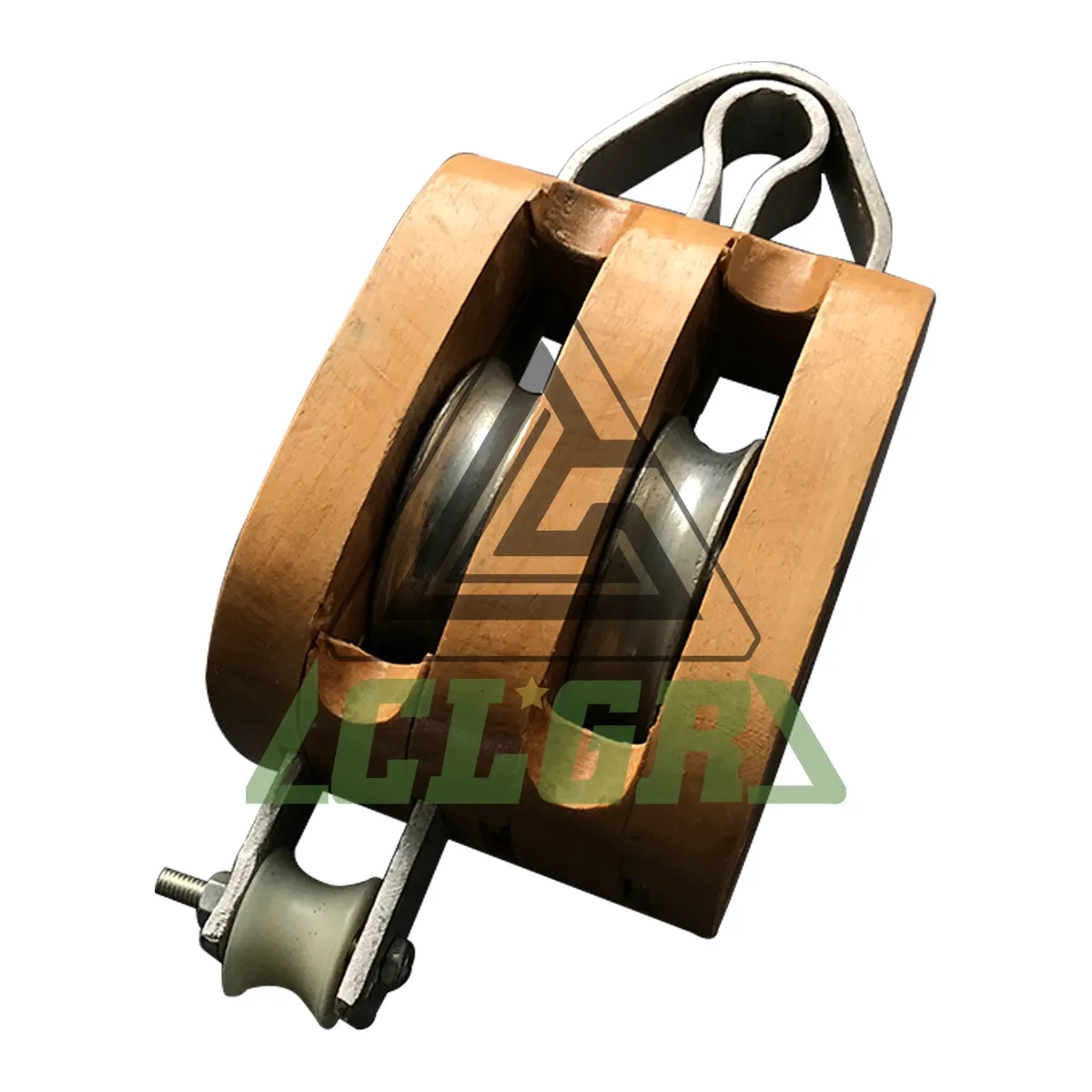

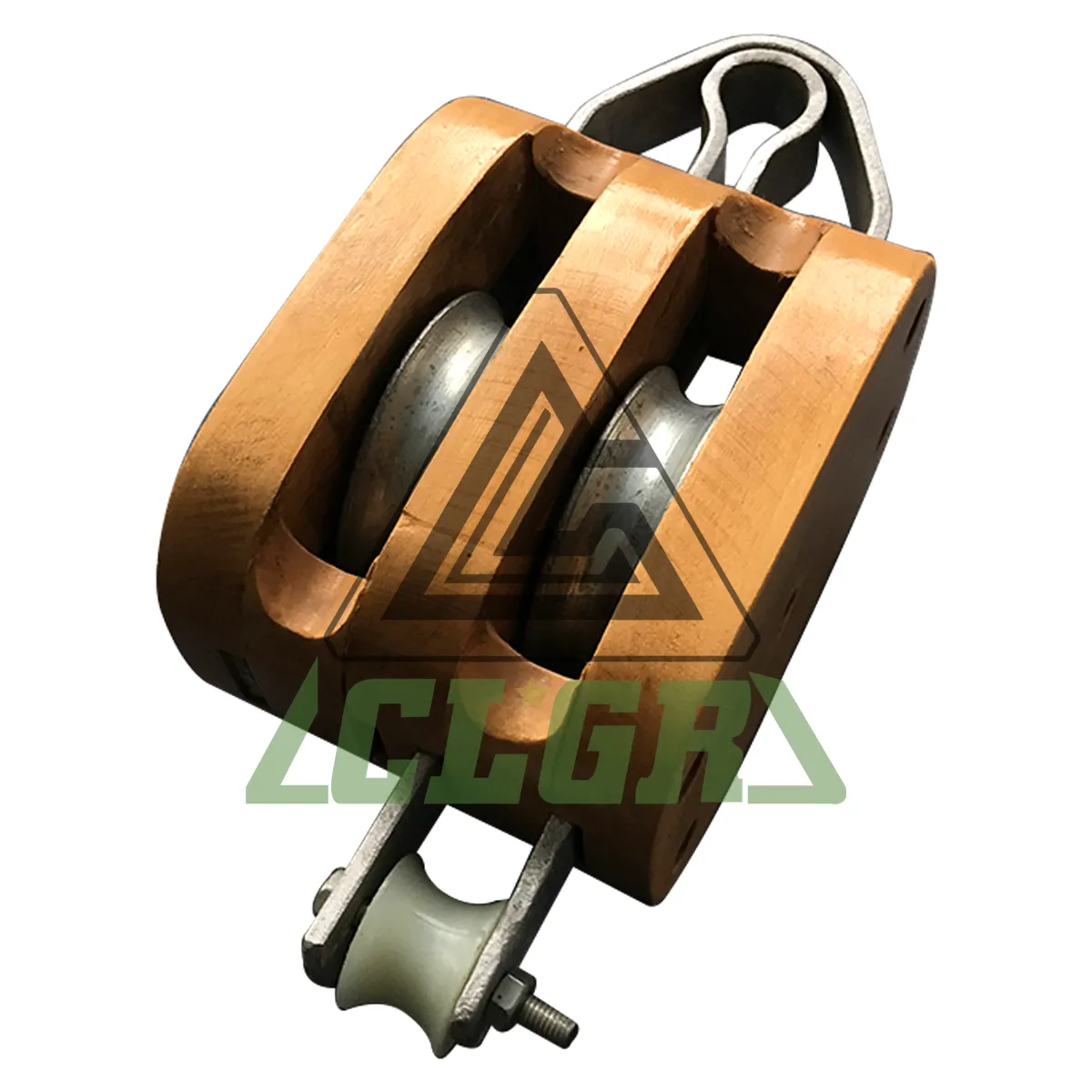

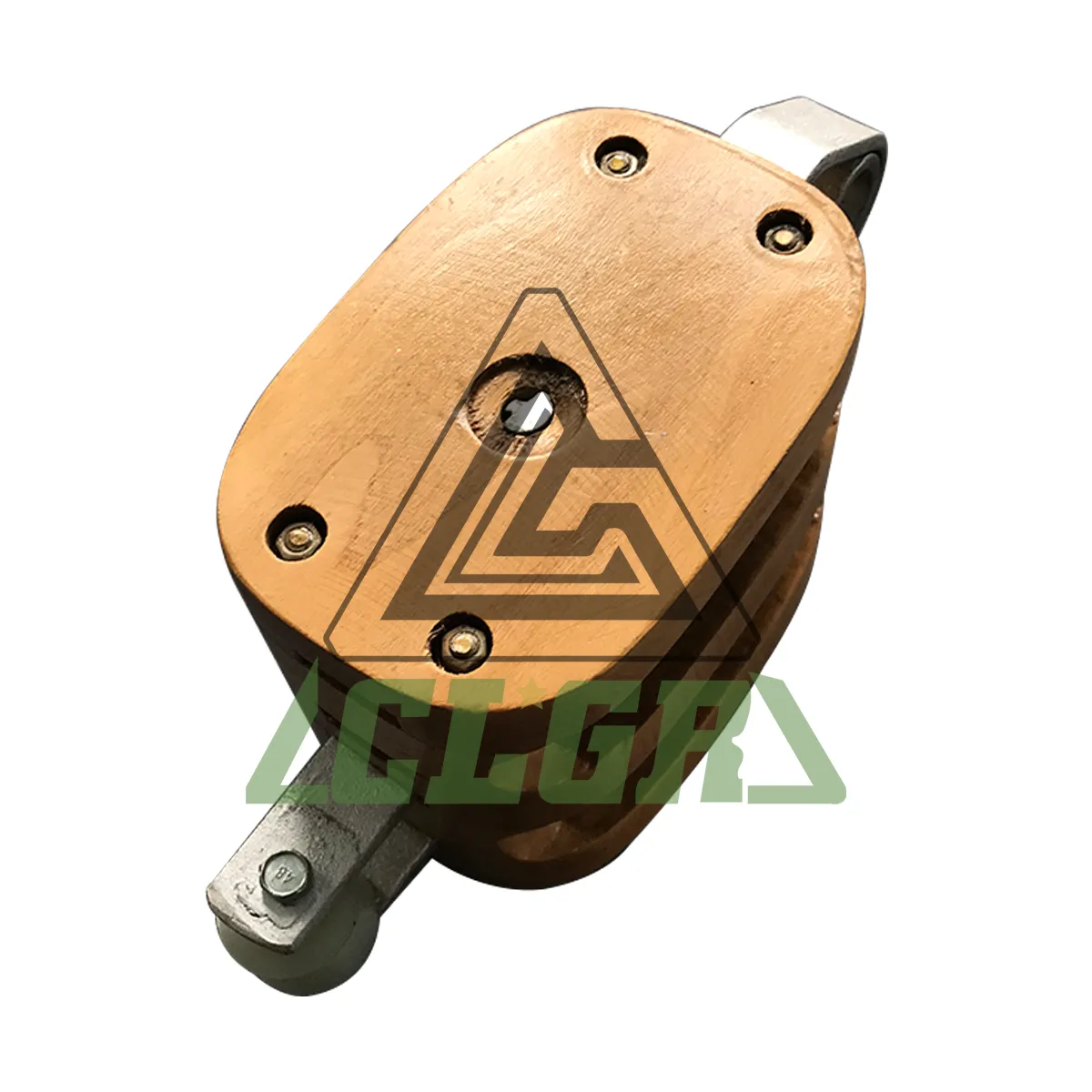

CLGR® Regular Wood Block Double Sheave Without Shackle

Name: CLGR® Regular Wood Block Double Sheave Without Shackle
Brand: CLGR®

CLGR® Regular Wood Block Double Sheave Without Shackle, also referred to as Regular Wooden Pulley Block, Double Sheave Wooden Pulley Blocks.

The Regular Wood Block Double Sheave, with a wooden shell and hot-dipped galvanized steel components for corrosion protection, is suitable for offshore, maritime, construction and commercial fishing use.

If you want to know further product information, please feel free to contact us at your convenience.

To Get A Quote >

clgr regular wood block double sheave without shackle wholesale supplier

clgr regular wood block double sheave without shackle wholesale manufacturer

clgr regular wood block double sheave without shackle price

Overview of Regular Wood Block Double Sheave Without Shackle

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

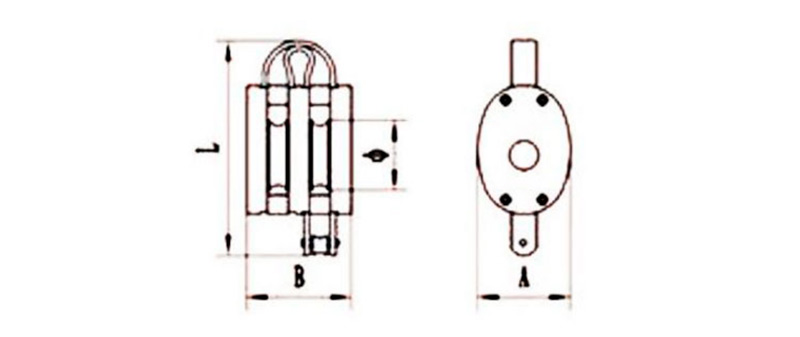

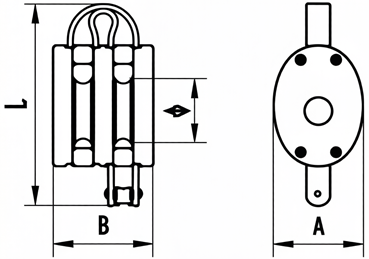

Specifications of Regular Wood Block Double Sheave Without Shackle

CLGR® Regular Wood Block Double Sheave Without Shackle

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRRWPDSWS-3	3″	800	3/8″	45	157	61.5	74.5	0.8
CRRWPDSWS-4	4″	1400	1/2″	57	189	77	86	1.25
CRRWPDSWS-5	5″	1800	5/8″	76	232.5	99	107	1.85
CRRWPDSWS-6	6″	2500	3/4″	90	270.5	118	124.5	3.1
CRRWPDSWS-8	8″	3800	1″	121	363.5	138	132.5	6.2
CRRWPDSWS-10	10″	6000	11/8″	158	431	190	174	10.5
CRRWPDSWS-12	12″	8000	11/4″	196	483	246	186	16.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
