CLGR® Regular Wood Shell Block with Hook Single Sheave

Name: CLGR® Regular Wood Shell Block with Hook Single Sheave
Brand: CLGR®

CLGR® Regular Wood Shell Block with Hook Single Sheave, also known as Single Wood Shell Block with Loose Hook, and Regular Wood Shell Block.

The Regular Wood Shell Block Single Sheave features hard wood shells and adopts a reverse eye round loose hook fitting type, with drop forged fittings for enhanced strength. It is available with bronze self-lubricating bushings to ensure smooth operation, and its metal parts are galvanized to provide reliable corrosion resistance.

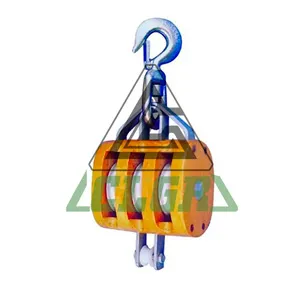

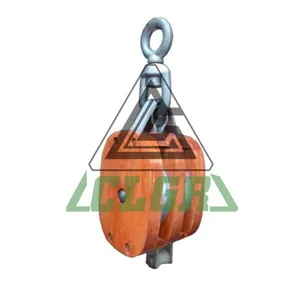

Available in Single, Double and Triple sheaves.

Ideal for fishing boats, marine applications and light duty haul work.

To Get A Quote >

CLGR® Regular Wood Shell Block with Hook Single Sheave Price

Overview of CLGR® Regular Wood Shell Block with Hook Single Sheave

Brand	CLGR®
Material	Wood and Carbon Steel
Shell	Hardwood
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Sheave	Single Sheave
Designed for Use With	Rope
End Fitting	Fixed Hook with Latch
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Regular Wood Shell Block with Hook Single Sheave

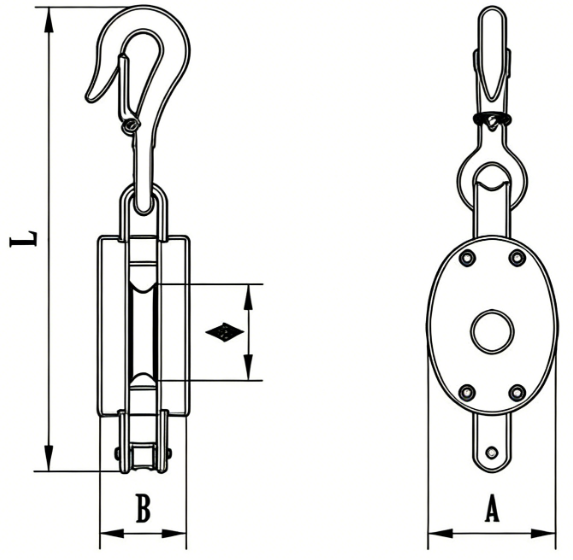

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRRWBHSS-3	3″	500	3/8″	45	229	61.5	44.5	0.75
CRRWBHSS-4	4″	1000	1/2″	57	271	77	51.5	1
CRRWBHSS-5	5″	1200	5/8″	76	334	99	64	1.6
CRRWBHSS-6	6″	1800	3/4″	90	394	118	73.5	2.6
CRRWBHSS-8	8″	2800	1″	121	504	138	78	4.5
CRRWBHSS-10	10″	4000	11/8″	158	587	190	104	8
CRRWBHSS-12	12′	5000	11/4″	196	633	246	111	14.7
