CLGR® Regular Wood Block Triple Sheave Without Shackle

Name: CLGR® Regular Wood Block Triple Sheave Without Shackle
Brand: CLGR®

CLGR® Regular Wood Block Triple Sheave Without Shackle, also known as Wooden Pulley Blocks Triple Sheave, Wood Shell Blocks.

The Regular Wood Block Double Sheave, with a wooden shell and hot-dipped galvanized steel components for corrosion protection, is suitable for offshore, maritime, construction and commercial fishing use.

If you want to know further information, please contact us at your convenience.

To Get A Quote >

clgr regular wood block triple sheave without shackle cost

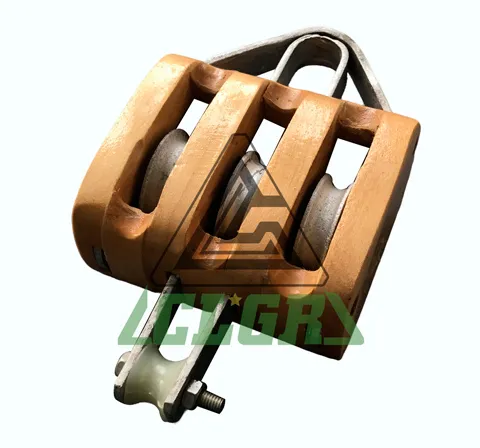

clgr regular wood block triple sheave without shackle company

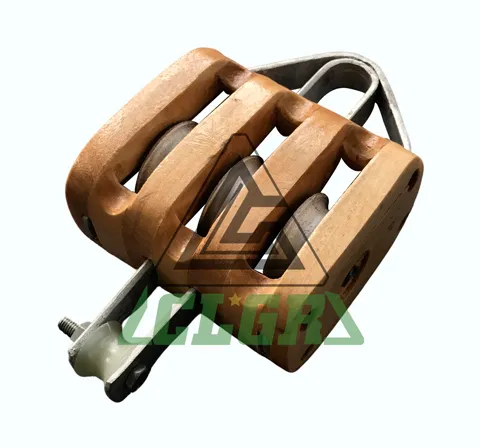

clgr regular wood block triple sheave without shackle companies

Overview of CLGR® Regular Wood Block Triple Sheave Without Shackle

Brand	CLGR®
Material	Wood and Carbon Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	3″, 4″, 5″, 6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

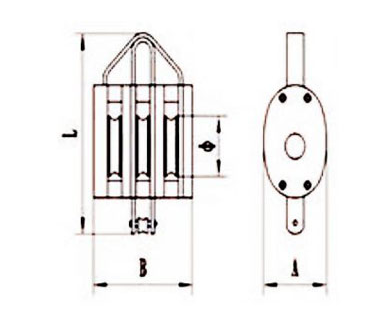

Specifications of CLGR® Regular Wood Block Triple Sheave Without Shackle

CLGR® Regular Wood Block Triple Sheave Without Shackle

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWBTSWS3	3″	1200	3/8″	45	157	61.5	104.5	1.2
CRWBTSWS4	4″	1800	1/2″	57	189	77	120.5	1.7
CRWBTSWS5	5″	2400	5/8″	76	232.5	99	150	2.35
CRWBTSWS6	6″	3200	3/4″	90	270.5	118	175.5	3.9
CRWBTSWS8	8″	4800	1″	121	363.5	138	187	7.65
CRWBTSWS10	10″	8000	11/8″	158	431	190	244	13
CRWBTSWS12	12″	10000	11/4″	196	483	246	261	20.5
