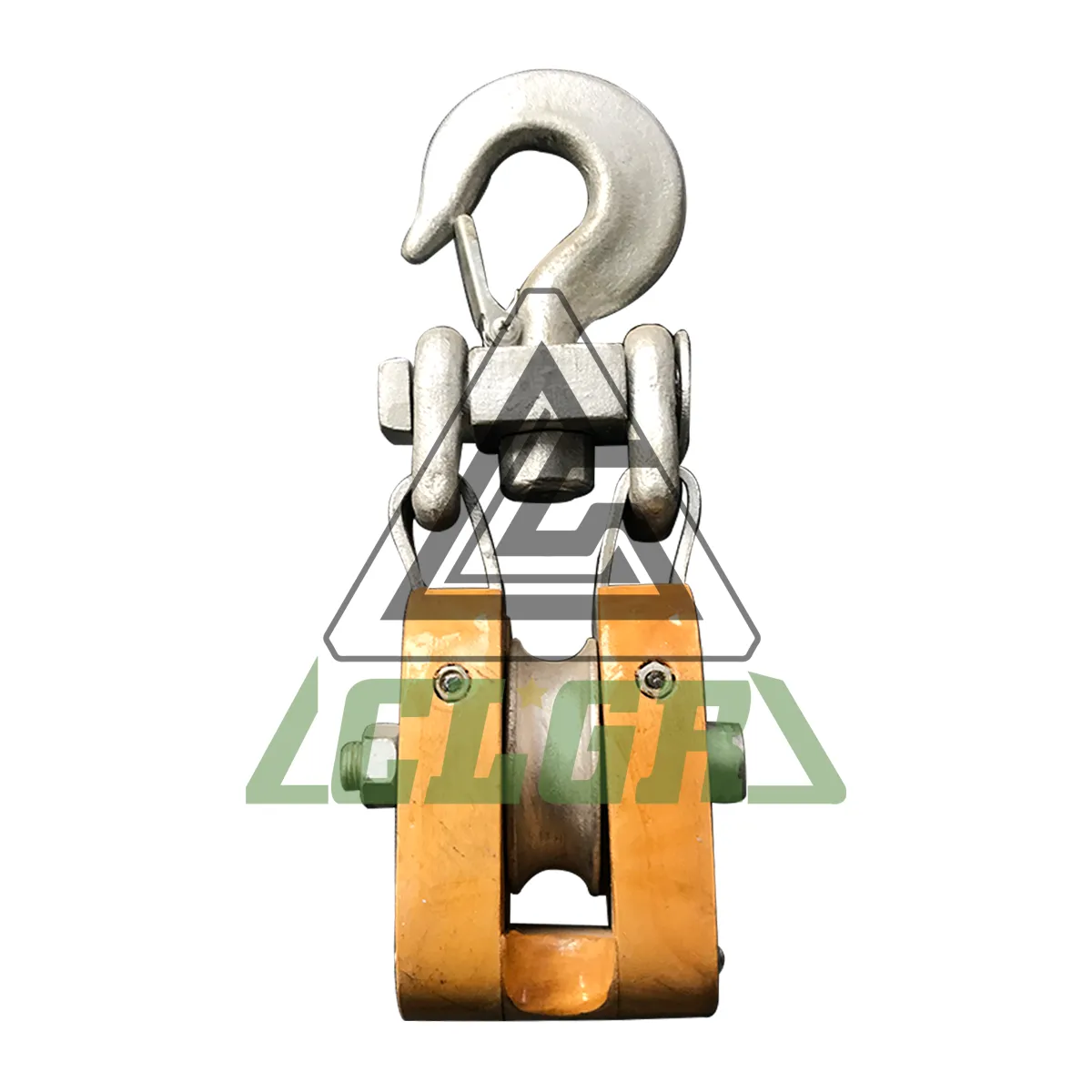

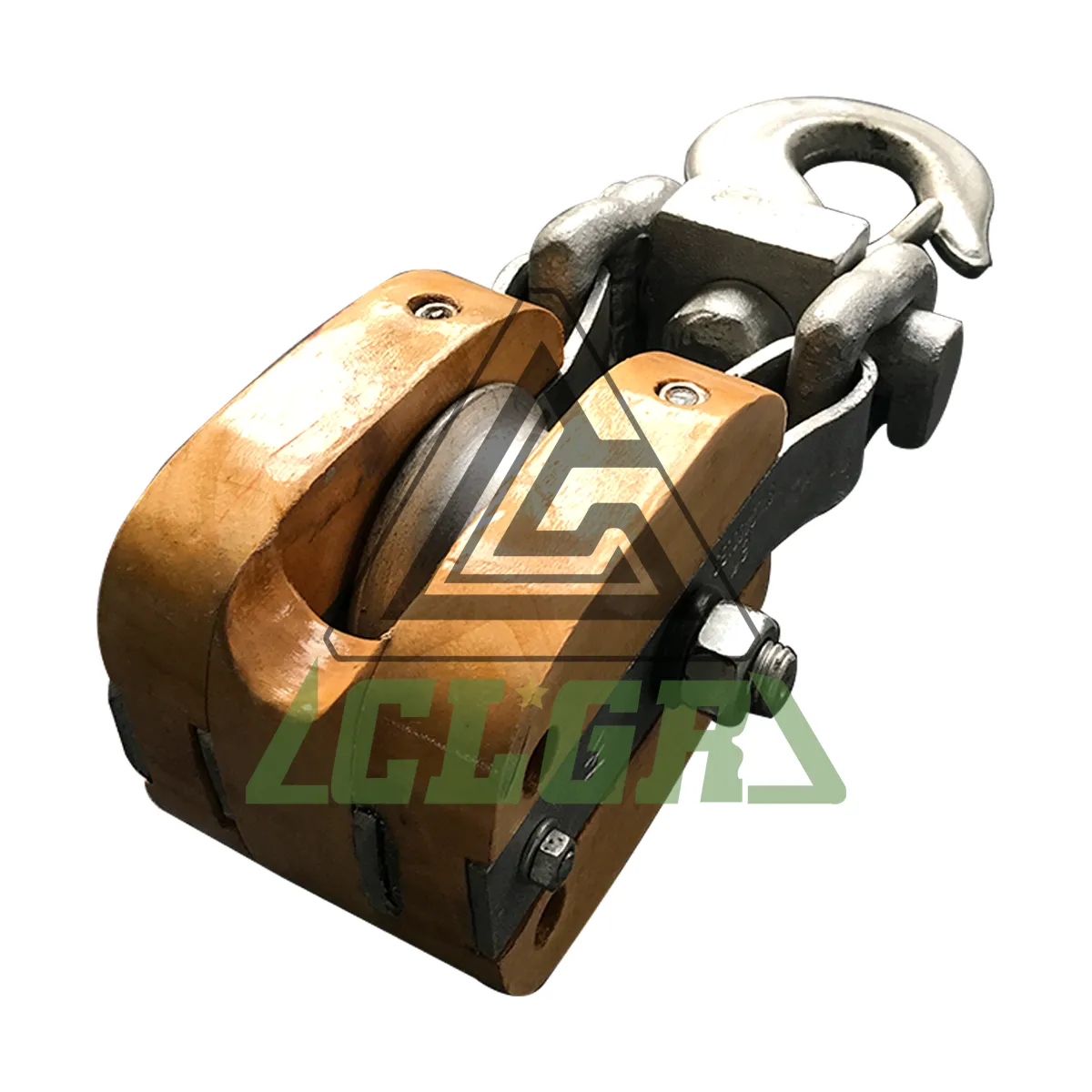

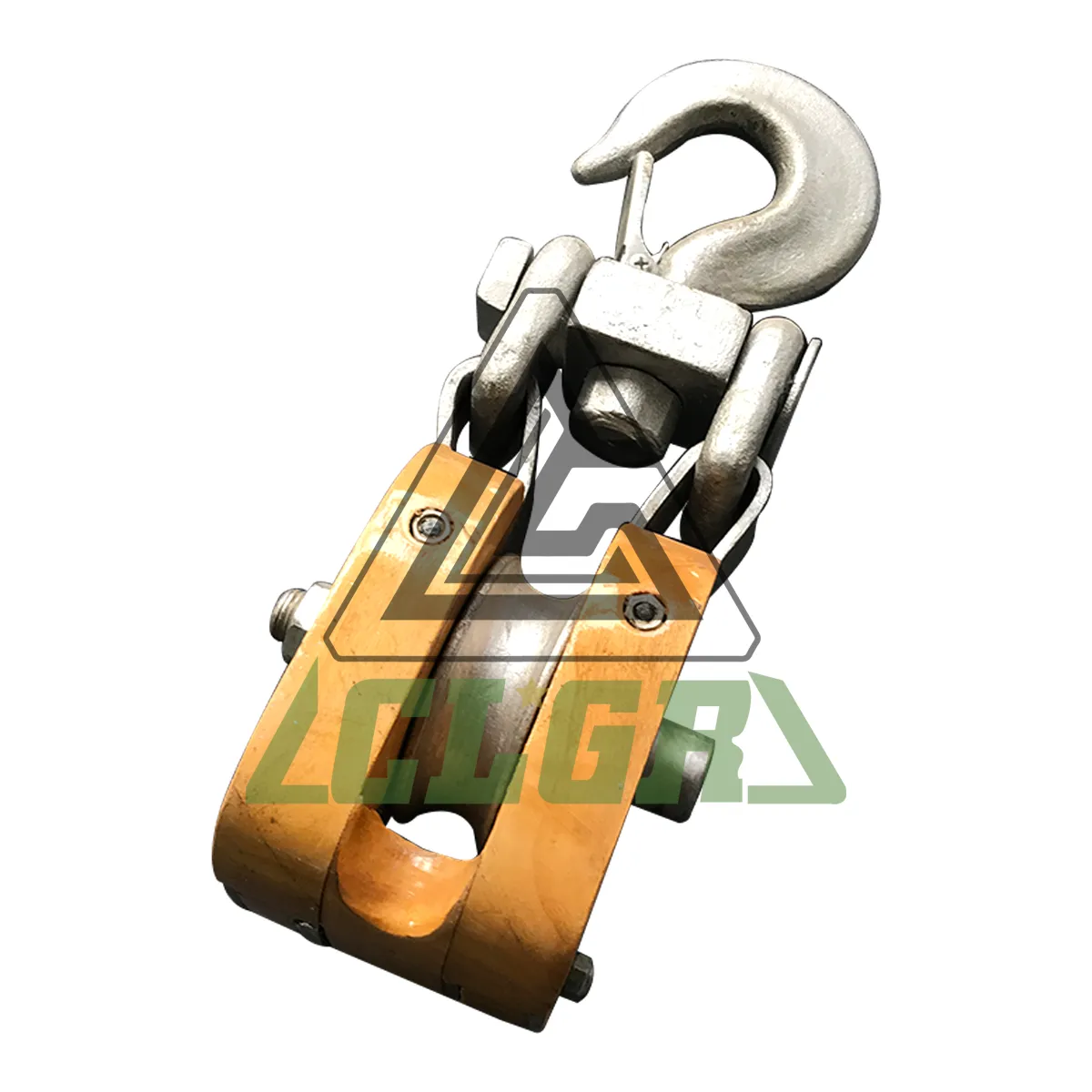

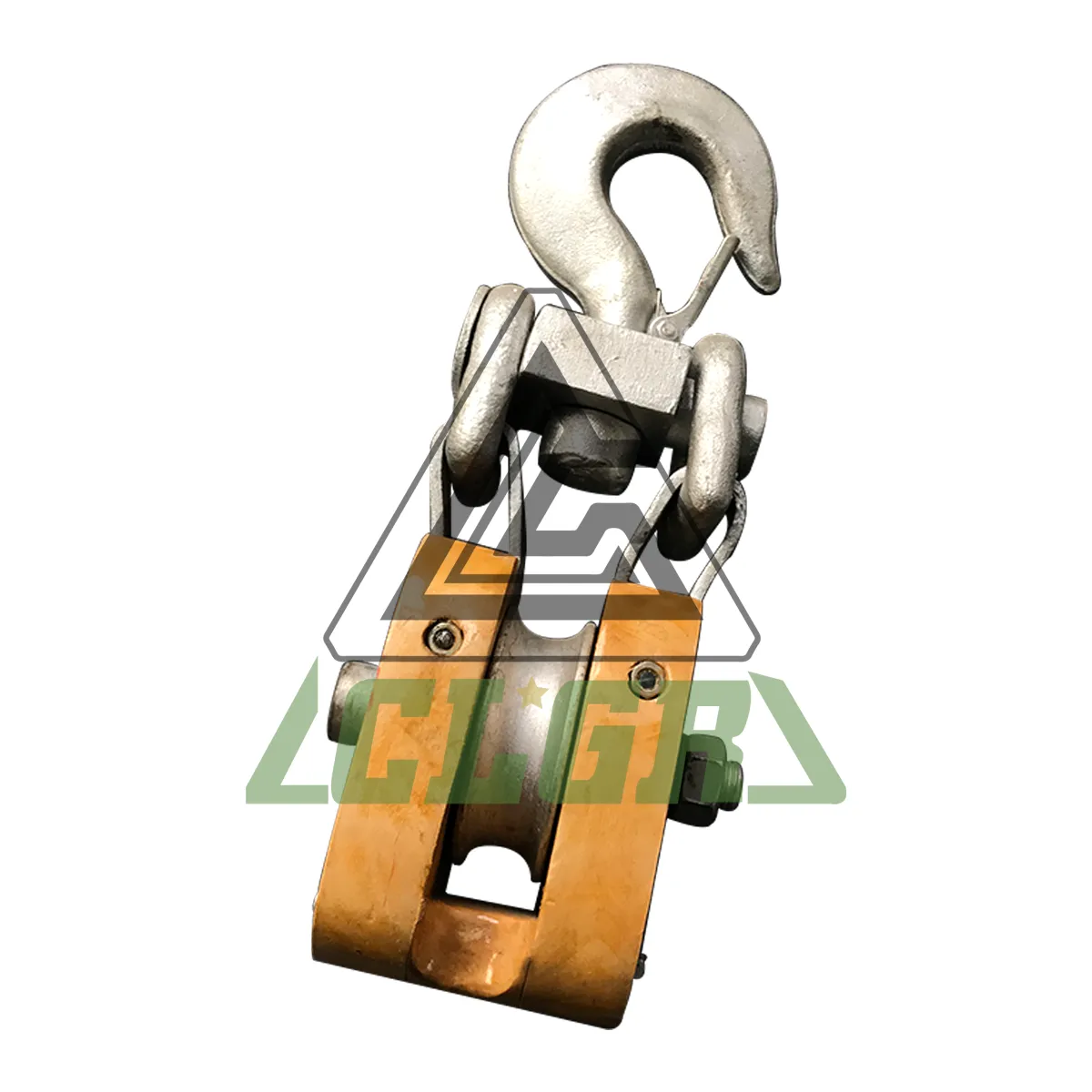

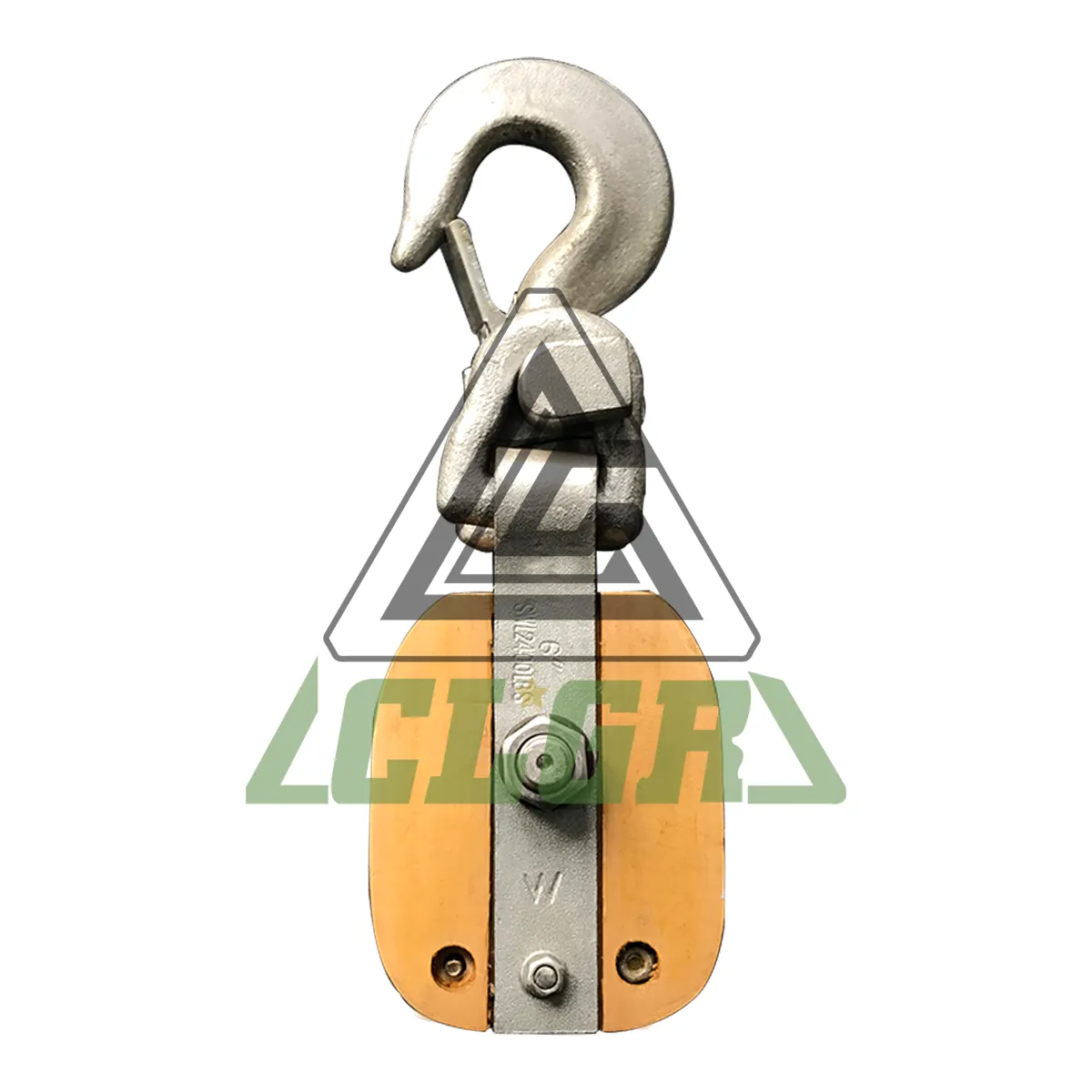

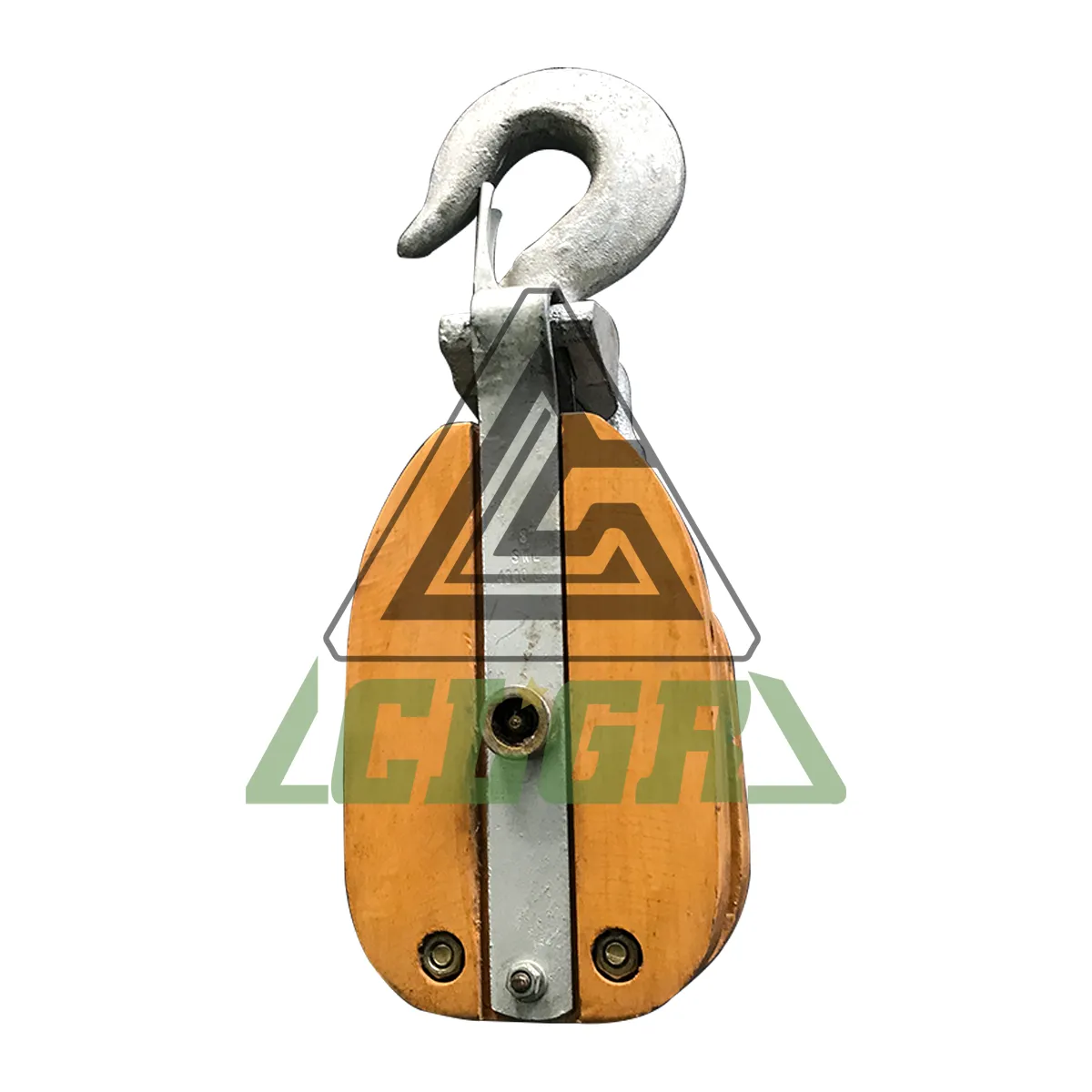

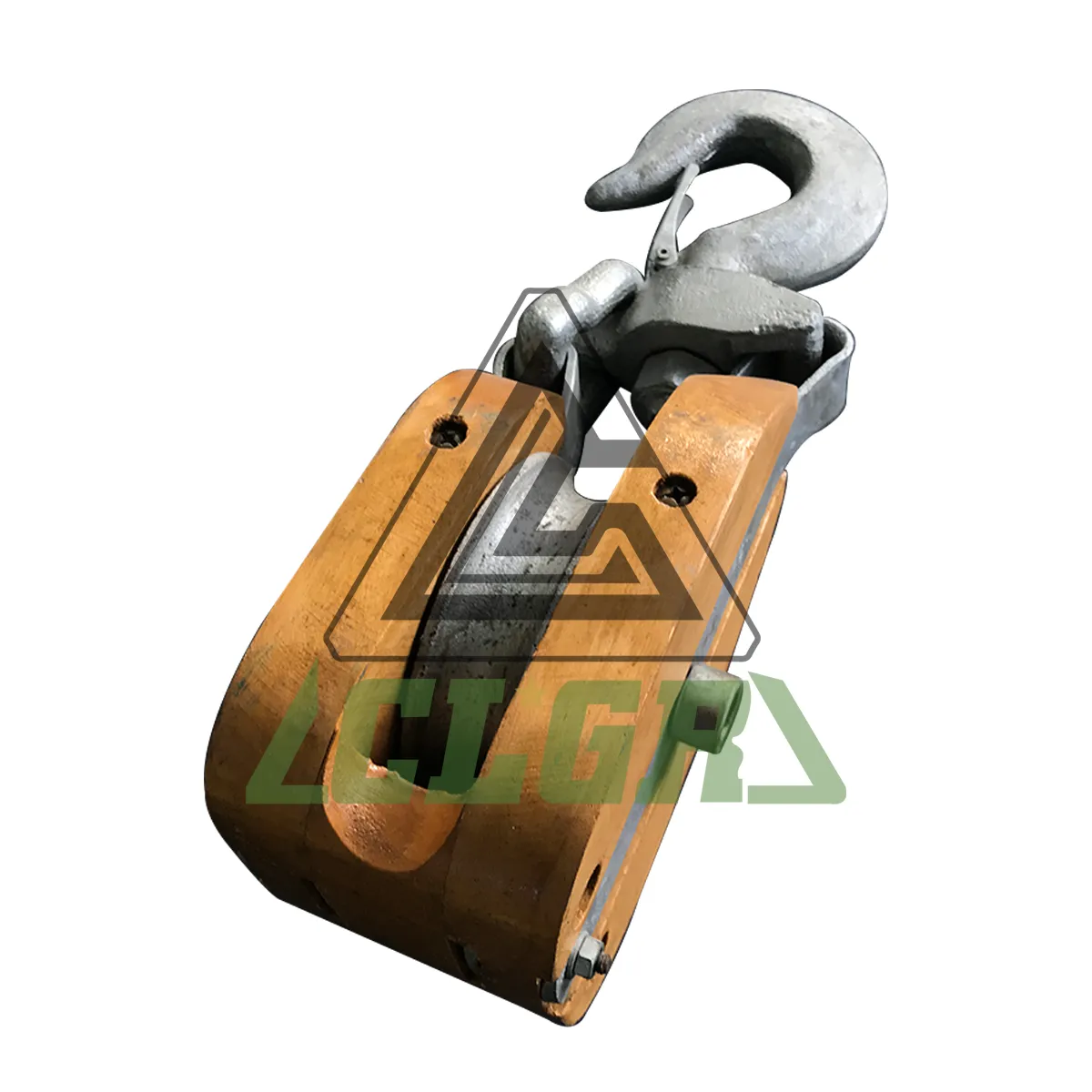

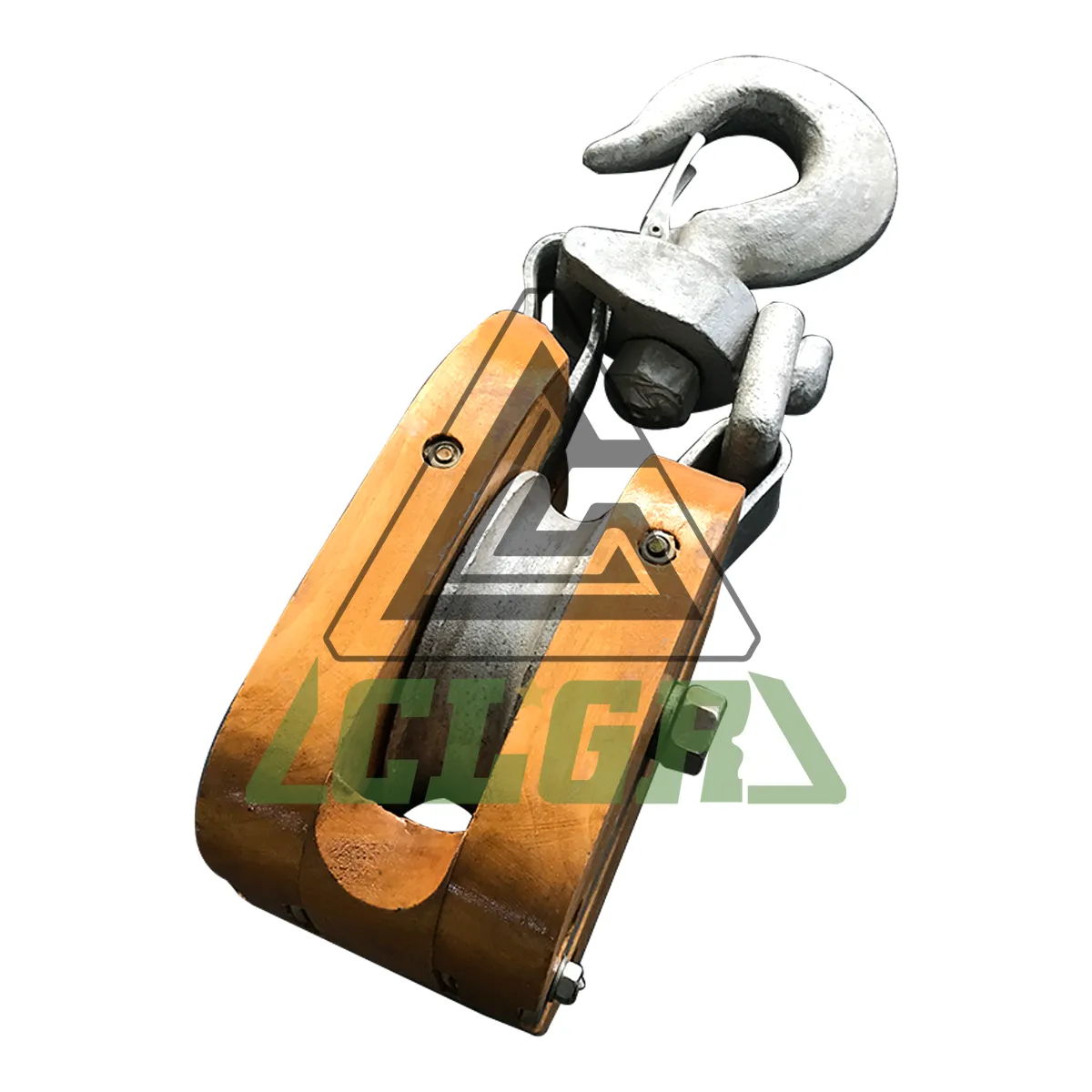

CLGR® Wooden Snatch Block with Hook WSBH Type

Name: CLGR® Wooden Snatch Block with Hook WSBH Type
Brand: CLGR®

CLGR® Wooden Snatch Block with Hook WSBH Type, also known as Wood Pulley with Hook, Wood Shell Snatch Block with Swivel Latch Hook.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

The sheaves and fittings are galvanised to protect against corrosion.

We guarantee the best combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

If you want to know further product information, please feel free to contact us at your convenience.

To Get A Quote >

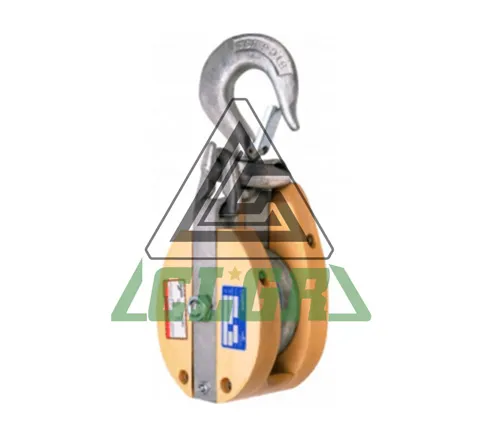

CLGR® Wooden Snatch Block with Hook WSBH Type Manufacturers

Overview of CLGR® Wooden Snatch Block with Hook WSBH Type

Brand Name	CLGR®
Sheave	Single Sheave Block
Type	U.S. Fed. Spec.
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Material	Wood/Carbon Steel
Size	6″, 8″, 10″, 12″
Note	DO NOT EXCEED THE WORKING LOAD LIMIT

Specifications of CLGR® Wooden Snatch Block with Hook WSBH Type

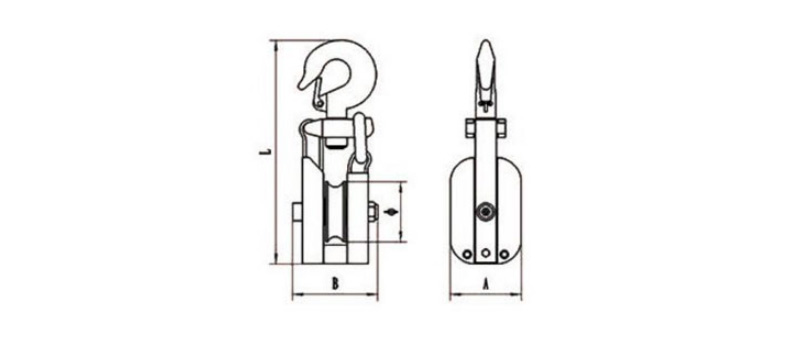

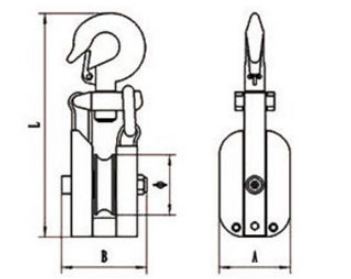

CLGR® Wooden Snatch Block with Hook WSBH Type Diagram

Part. No	Size	SWL/LBS	Diam	∅	L	A	B	Weight (KG)
CRWSBH01	6″	2400	7/8″	85	315	100	120	3.62
CRWSBH02	8″	4800	11/8″	115	364	133	126	5.5
CRWSBH03	10″	6600	11/4″	145	488	160	156	11
CRWSBH04	12″	7600	11/2″	175	548	185	165	15
