CLGR® Quick Link Stainless Steel Standard/Short Type

Name: CLGR® Quick Link Stainless Steel Standard/Short Type
Brand: CLGR®

CLGR® Quick Link Stainless Steel Standard/Short Type, also known as Stainless Steel Quick Repair Link, Chain Repair Link, Chain Connecting Link and Oval Quick Link.

This quick links is made of stainless steel. Grade 316 is preferred for long-term seawater exposure due to superior molybdenum-enhanced corrosion resistance, while 304 suits short-term or low-corrosion applications. Welded, electropolished, and proof-tested, it's the optimal choice for harsh environments and elevated temperatures.

Quick links are developed for permanent or semipermanent connections. Providing any connection as a machinery part when fitted with chain, webbing, or wire rope, while being also used as connector on PPE.

Stainless Steel Standard Oval Quick Links provide a fast, easy, and durable connection between 2 lengths of chain or chain and other fittings such as eye bolts, turnbuckles, and hooks.

To Get A Quote >

24 CLGR® Quick Link Stainless Steel StandardShort Type

 

Overview of CLGR® Stainless Steel Quick Link Standard/Short Type

Brand	CLGR®
Size	3.5mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm,14mm, 16mm
Material	Stainless Steel (AISI 304 / AISI 316)
Safety Factor	2.5:1
Processing	Stamping
Surface Finish	Highly Polishing

Specifications of CLGR® Quick Link Stainless Steel Standard/Short Type

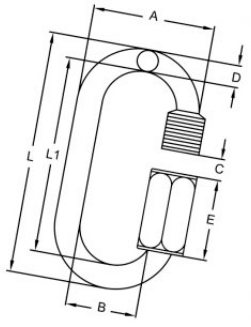

Drawing CLGR® Quick Link Stainless Steel Standard/Short Type

Part No.	Size	A	B	C	D	L	L1	E	W.L.L	N.W.
Stainless Steel	mm	mm	mm	mm	mm	mm	mm	mm	lbs	kgs/100pcs
CR-SS-QL-3.5	3.5	17	10	5	3.5	36	29	11	200	0.8
CR-SS-QL-4	4	19.5	11.5	5.5	4	39.5	31.5	12.5	440	1.2
CR-SS-QL-5	5	23	13	6.5	5	48.5	35.5	16	660	2.1
CR-SS-QL-6	6	26.5	14.5	7.5	6	57	45	19	880	3.5
CR-SS-QL-7	7	30	16	8.5	7	66	52	21.5	1300	5.45
CR-SS-QL-8	8	33.5	17.5	10.5	8	74	58	24	1760	7.5
CR-SS-QL-9	9	37	19	11	9	80	62	26	2200	10.5
CR-SS-QL-10	10	40.5	20.5	12	10	89	69	29	2640	13.5
CR-SS-QL-12	12	47.5	23.5	15	12	104.5	80.5	33	3300	22.8
CR-SS-QL-14	14	54.5	26.5	17	14	121	93	38.5	6100	35
CR-SS-QL-16	16	61.5	29.5	19	16	140	108	45	8000	50
