CLGR® Stainless Steel Round O Ring

Name: CLGR® Stainless Steel Round O Ring
Brand: CLGR®

CLGR® Stainless Steel Rings Round O Ring, also referred to as O rings or mooring rings.

These round rings are made of marine grade A4-AISI 304 or 316 in highly polished. Stainless steel rings, especially marine-grade 316 steel, are ideal for demanding fishing environments due to their saltwater corrosion resistance and high strength. It can be used with rope, webbing and even chain assemblies. rustproof and strong.

These stainless round O rings are available in a wide range of sizes, including 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 13mm, 14mm, 16mm, 19mm diameter bars, all with different internal widths.

The weld on the rings is perfect and is almost impossible to see. The round rings come with a breaking load to outline product performance.

To Get A Quote >

CLGR® Stainless Steel Round O Ring Manufacturer

CLGR® Stainless Steel Round O Ring Supplier

CLGR® Stainless Steel Round O Ring Quality

CLGR® Stainless Steel Round O Ring for Sale

CLGR® Stainless Steel Round O Ring Material

 

Overview of CLGR® Stainless Steel Rings Round O Ring

Brand	CLGR®
Size	3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 13mm, 14mm, 16mm, 19mm
Material	Stainless Steel (AISI 304 / AISI 316)
Safety Factor	5: 1
Processing	Welded
Surface Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Round O Ring

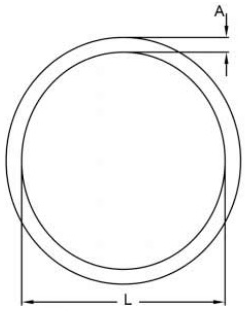

Drawing Stainless Steel Round O Ring

Part No.	A	L	WT	Part No.	A	L	WT
Part No.	mm	mm	kgs	Part No.	mm	mm	kgs
CRSSROR315	3	15	0.003	CRSSROR950	9	50	0.0926
CRSSROR320	3	20	0.0038	CRSSROR960	9	60	0.1083
CRSSROR325	3	25	0.0048	CRSSROR970	9	70	0.124
CRSSROR330	3	30	0.005	CRSSROR980	9	80	0.13
CRSSROR420	4	20	0.0074	CRSSROR1050	10	50	0.1163
CRSSROR425	4	25	0.0089	CRSSROR1060	10	60	0.136
CRSSROR430	4	30	0.0102	CRSSROR1070	10	70	0.151
CRSSROR435	4	35	0.012	CRSSROR1080	10	80	0.18
CRSSROR440	4	40	0.013	CRSSROR1090	10	90	0.19
CRSSROR525	5	25	0.0146	CRSSROR10100	10	100	0.212
CRSSROR530	5	30	0.016	CRSSROR1260	12	60	0.193
CRSSROR535	5	35	0.0189	CRSSROR1270	12	70	0.217
CRSSROR540	5	40	0.022	CRSSROR1280	12	80	0.26
CRSSROR545	5	45	0.0237	CRSSROR1290	12	90	0.28
CRSSROR550	5	50	0.025	CRSSROR12100	12	100	0.31
CRSSROR625	6	25	0.02	CRSSROR1380	13	80	0.27
CRSSROR630	6	30	0.0244	CRSSROR13120	13	120	0.43
CRSSROR635	6	35	0.0279	CRSSROR13125	13	125	0.45
CRSSROR640	6	40	0.031	CRSSROR1475	14	75	0.331
CRSSROR645	6	45	0.035	CRSSROR1475	14	75	0.331
CRSSROR650	6	50	0.0384	CRSSROR1490	14	90	0.411
CRSSROR655	6	55	0.042	CRSSROR16100	16	100	0.50
CRSSROR660	6	60	0.045	CRSSROR16125	16	125	0.69
CRSSROR670	6	70	0.053	CRSSROR1975	19	75	0.663
CRSSROR740	7	40	0.0446	CRSSROR1990	19	90	0.772
CRSSROR750	7	50	0.0541
CRSSROR760	7	60	0.0636
CRSSROR770	7	70	0.0731
CRSSROR840	8	40	0.0595
CRSSROR845	8	45	0.069
CRSSROR850	8	50	0.0719
CRSSROR825	8	55	0.0814
CRSSROR860	8	60	0.084
CRSSROR870	8	70	0.097
CRSSROR880	8	80	0.106

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
