CLGR® Pear Rings Steel Painted Welded

Name: CLGR® Pear Rings Steel Painted Welded
Brand: CLGR®

CLGR® Pear Rings Steel Painted Welded, also known as Master Link Pear Shape Welded Steel, Alloy Pear Shape Master Links.

Made of superior mild steel, it has been finished by powder coated.

Pear shape link welded can be easily attached to hoists, cranes, slings, and wenches directly or paired with a shackle as needed.

We can supply various sizes of this pear shape rings.

To Get A Quote >

Overview of CLGR® Pear Rings Steel Painted Welded

Brand	CLGR®
Material	Superior Mild Steel
Safety Factor	5: 1
Processing	Welded
Finish	Powder Coated
W.L.L.	1T, 0.8T, 1.8T, 3T, 4.1T, 5.1T, 7.2T
Size (Dia.)	12mm, 16mm, 19mm, 22mm, 25mm, 30mm
Color	Red or OEM

Specifications of CLGR® Pear Rings Steel Painted Welded

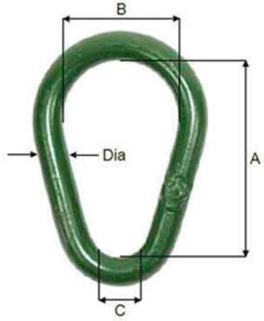

Drawing CLGR® Pear Rings Steel Painted Welded

Part No.	Dia. mm	WLL 5:1 ton	A mm	B mm	C mm	Weight kg
CRMLPSWGR1.0T	12	1	70	35	15	0.22
CRMLPSWGR0.8T	12	0.8	125	65	24	0.33
CRMLPSWGR1.8T	16	1.8	110	60	28	0.5
CRMLPSWGR3.0T	19	3	120	70	36	0.8
CRMLPSWGR4.1T	22	4.1	130	85	45	1.4
CRMLPSWGR5.1T	25	5.1	160	100	45	2.2
CRMLPSWGR7.2T	30	7.2	160	100	45	3

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
