CLGR® G80 Forged Alloy Round Ring Yellow Painted

Name: CLGR® G80 Forged Alloy Round Ring Yellow Painted
Brand: CLGR®

G80 Forged Alloy Round Ring Yellow Painted, also known as Weldless Round Ring, Forged O Ring is forged from high-strength alloy steel and features a powder-coated surface finish.

The rounded design evenly distributes force throughout the entire ring, reducing stress concentration points, thereby improving the durability and load capacity of the product, and extending its service life. At the same time, it allows for the connection of chains, ropes, or hooks from any direction, greatly improving the flexibility and convenience of use, making it very suitable for complex lifting tasks.

The rings are taken proof tests individually and breakage tests and fatigue tests for each batch.

To Get A Quote >

Forged Alloy Steel Grade 80 Weldless Rings

CLGR® G80 Forged Alloy Round Ring Yellow Painted Manufacturers

CLGR® G80 Forged Alloy Round Ring Yellow Painted Suppliers

CLGR® G80 Forged Alloy Round Ring Yellow Painted Wholesale Manufacturers

CLGR® G80 Forged Alloy Round Ring Yellow Painted Wholesale Suppliers

 

Overview of CLGR® G80 Forged Alloy Round Ring Yellow Painted

Brand	CLGR®
Size	3/8×2", 1/2×2", 5/8×3", 5/8×3-5/16", 3/4×3", 3/4×4", 7/8×4", 7/8×5-1/2", 1×4", 1×5-1/2", 1-1/8×6", 1-1/4×5", 1-1/4×6", 1-1/4×10", 1-3/8×6", 1-1/2×8", 1-1/2×8-3/4", 1-1/2×10", 2×12"
Material	Superior Alloy Steel
Safety Factor	6: 1
Processing	Drop Forged / Heat Treatment
Surface Finish	Powder Coating / Self-colored
Note	Color code can be customized

Specifications of CLGR® G80 Forged Alloy Round Ring Yellow Painted

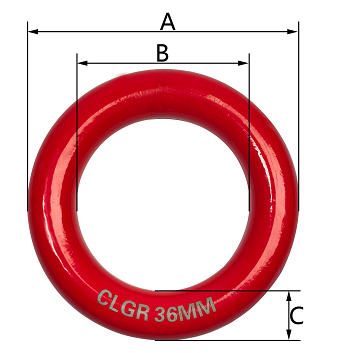

Drawing CLGR® G80 Forged Alloy Round Ring Yellow Painted

Part No.	Size (inch)	Dimension(mm)		N.W.	W.L.L	B.L
Part No.	Wire Dia. X Inner Dia.	A	B	Kgs	lbs	lbs
8CRFRR01	3/8×2”	10	50	0.11	1100	6600
8CRFRR02	1/2×2”	13	50	0.21	2200	13200
8CRFRR03	5/8×3”	16	76	0.46	3300	19800
8CRFRR04	5/8×3-5/16”	16	84	0.5	3300	19800
8CRFRR05	3/4×3”	19	76	0.67	5000	30000
8CRFRR06	3/4×4”	19	102	0.84	5600	33600
8CRFRR07	7/8×4”	22	102	1.2	7200	43200
8CRFRR08	7/8×5-1/2”	22	140	1.55	5600	33600
8CRFRR09	1×4”	25	102	1.59	10800	64800
8CRFRR10	1×5-1/2”	25	140	2.1	10800	64800

Notes
1) Before each use, the operator must perform a safety inspection on the sling and use it only after being qualified;
2) The sling must be inspected regularly by professionals (trained qualified personnel) every month;
3) If it is found that the dimensional wear of the sling is greater than 5% of the original size, it must be replaced in time;
4) If it is found that the amount of dimensional deformation exceeds 3% of the original size, it must be replaced in time to ensure safety.
