CLGR® Stainless Steel Pear Rings High Tensile

Name: CLGR® Stainless Steel Pear Rings High Tensile
Brand: CLGR®

CLGR® Pear Rings Stainless Steel High Tensile, also known as 304/316 Stainless Steel Pear Shape Master Links and Welded Stainless Steel Pear Link.

The 316 Stainless Steel Pear Shape Master Link is a vital component of chain slings and optimally designed for use with crane hooks. Fabricated with 316 Stainless Steel and proof tested, this master link is a good choice for your custom lifting needs.

Pear shape link welded stainless steel can be easily attached to hoists, cranes, slings, and wenches directly or paired with a shackle as needed.

We can supply various sizes of this pear shape rings.

To Get A Quote >

16 CLGR® Stainless Steel Pear Rings High Tensile

CLGR® Stainless Steel Pear Rings High Tensile - The China Manufacturer Supplier, Factory Suppliers

CLGR® Stainless Steel Pear Rings High Tensile - The China Manufacturer Supplier, Factory Factory

CLGR® Stainless Steel Pear Rings High Tensile - The China Manufacturer Supplier, Factory Manufacturers

 

Overview of CLGR® Stainless Steel Pear Rings High Tensile

Brand	CLGR®
Size	12mm, 16mm, 19mm, 22mm, 25mm, 30mm
Shape	Pear Rings
Material	Stainless Steel (AISI 304 / AISI 316)
WLL	0.8 T, 1 T, 1.8 T, 3 T, 4.1 T, 5.1 T, 7.2 T
Safety Factor	5:1
Processing	Welded
Surface Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Pear Rings High Tensile

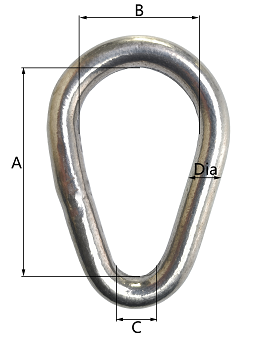

Drawing CLGR® Stainless Steel Pear Rings High Tensile

Part No.	Dia. mm	WLL 5:1 ton	A mm	B mm	C mm	Weight kg
CRSSMLW1.0T	12	1	70	35	15	0.22
CRSSMLW0.8T	12	1	125	65	24	0.33
CRSSMLW1.8T	16	1.8	110	60	28	0.5
CRSSMLW3.0T	19	3	120	70	36	0.8
CRSSMLW4.1T	22	4.1	130	85	45	1.4
CRSSMLW5.1T	25	5.1	160	100	45	2.2
CRSSMLW7.2T	30	7.2	160	100	45	3
