CLGR® Stainless Steel Pear Quick Link

Name: CLGR® Stainless Steel Pear Quick Link
Brand: CLGR®

CLGR® Stainless Steel Pear Quick Link, also known as Stainless Steel Pear Quick Chain Repair Links.

The Pear Quick Link is available in various of sizes, including 4mm, 5mm, 6mm, 8mm and 10mm, to ensure a perfect fit for every project. This link is made from grade 304/316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.

These quick links have a polished finish and secure screwed locking gate.

To Get A Quote >

26 CLGR® Stainless Steel Pear Quick Link

CLGR® Stainless Steel Pear Quick Link Use

CLGR® Stainless Steel Pear Quick Link Price

CLGR® Stainless Steel Pear Quick Link Working Principle

CLGR® Stainless Steel Pear Quick Link Wholesale Manufacturer

CLGR® Stainless Steel Pear Quick Link Wholesale Supplier

 

Overview of CLGR® Stainless Steel Long Quick Link

Brand	CLGR®
Size	4mm, 5mm, 6mm, 8mm, 10mm
Material	Stainless Steel (AISI 304 / AISI 316)
Processing	Stamping
Surface Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Pear Quick Link

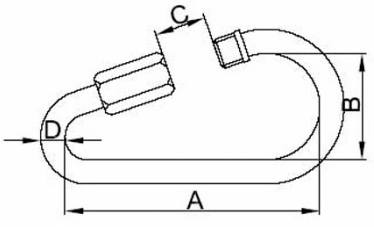

Drawing CLGR® Stainless Steel Pear Quick Link

Part No.	D(mm)	A(mm)	B(mm)	C(mm)	WLL(lbs)
CR-SS-QL-P-35	3.5	45	20	9.5	120
CR-SS-QL-P-04	4	52	24	11	350
CR-SS-QL-P-05	5	60	27	12	450
CR-SS-QL-P-06	6	69	31	14	600
CR-SS-QL-P-08	8	84	35	17	1100
CR-SS-QL-P-09	9	90	39	19	1300
CR-SS-QL-P-10	10	98	44	20	1500
CR-SS-QL-P-12	12	117	52	23	1650
