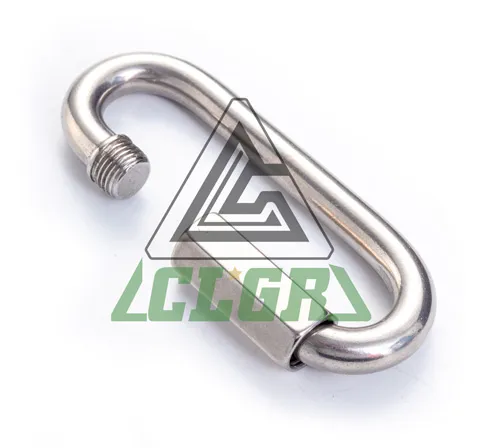

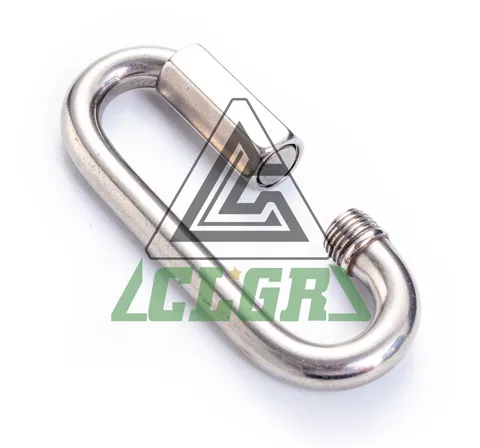

CLGR® Galvanized Long Quick Link, also known as Long Opening Quick Link, Quick Repair Link, Long Quick Chain Repair Link, Thick Galvanized Quick Link, Chain Connector/Connecting Link and Oval Quick Link.
These are longer versions of the standard Quick Links, they are steel screw-links designed for general purpose connecting of two chains or chain to components.
The Long Quick Links are available in a variety of sizes, including 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, to ensure a perfect fit for every project.
Galvanized Long Quick Links provide a fast, easy, and durable connection between 2 lengths of chain or chain and other fittings such as eye bolts, turnbuckles, and hooks.
Brand | CLGR® |
Size | 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
Material | Superior Mild Steel |
Safety Factor | 2.5:1 |
Processing | Stamping |
Surface Finish | Electric galvanized |
Part No. | Size | A | B | C | D | L | L1 | E | W.L.L | N.W. |
mm | lbs | kgs/100pcs | ||||||||
CRGQLL3.5 | 3.5 | 17 | 10 | 5 | 3.5 | 46 | 39.5 | 16 | 175 | 0.7 |
CRGQLL4 | 4 | 19.5 | 11.5 | 5.5 | 4 | 53 | 45 | 19 | 500 | 1.5 |
CRGQLL5 | 5 | 23 | 13 | 6.5 | 5 | 62 | 52 | 22 | 650 | 2 |
CRGQLL6 | 6 | 26.5 | 14.5 | 7.5 | 6 | 70.5 | 58.5 | 25 | 875 | 3.75 |
LGGQLL7 | 7 | 30 | 16 | 8.5 | 7 | 79 | 65 | 28 | 1200 | 6 |
CRGQLL8 | 8 | 33.5 | 17.5 | 10.5 | 8 | 88 | 72 | 31.5 | 1525 | 9 |
CRGQLL10 | 10 | 40.5 | 20.5 | 12 | 10 | 105.5 | 85.5 | 36 | 2300 | 13.55 |
CRGQLL12 | 12 | 47.5 | 23.5 | 15 | 12 | 124 | 100 | 43 | 2500 | 25 |
CRGQLL14 | 14 | 57 | 30 | 24.7 | 14 | 141.5 | 115 | 48 | 2800 | 40 |
