CLGR® Light Weight Anchor - Marine Anchor

Name: CLGR® Light Weight Anchor - Marine Anchor
Brand: CLGR®

A lightweight anchor refers to a variation of the traditional Danforth anchor that is specifically designed to be lighter in weight compared to standard models.

The lightweight anchor or LWT anchor is a superior holding power anchor (SHP) and can be up to 25% lighter than a standard anchor. The lightweight Danforth anchor, also known as a LWT Anchor, Danforth anchor or a Stato anchor, is renowned for its excellent holding power in a variety of seabed conditions.

This anchor is easily recognizable due to the large pivoting fluke areas and the stock being mounted at the crown of the anchor. The anchor is of high quality and good stability.

The weight range of our light-weight anchors varies widely, from 14 kg to 20,000 kg, showcasing excellent versatility. Designed with enlarged flukes, they ensure swift and secure insertion into sandy or muddy bottoms.

To Get A Quote >

Overview of CLGR® Light Weight Anchor – Marine Anchor

Brand	CLGR®
Type	Light Weight Anchor
Material	Casting Steel
Finishing	Black Painting or Hot Dip Galvanized
Origin	China

Specifications of CLGR® Light Weight Anchor – Marine Anchor

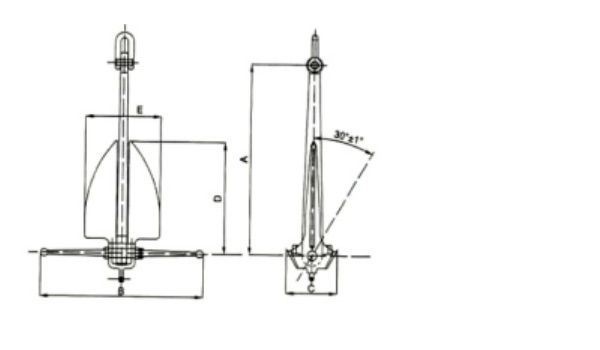

Part No.	Nominal Weight(kg)	Dimensions (mm)
Part No.	Nominal Weight(kg)	A	B	C	D	E
CRLWT01	14	770	730	222	444	288
CRLWT02	23	885	840	252	508	328
CRLWT03	34	965	915	279	559	366
CRLWT04	45	1055	1000	310	610	396
CRLWT05	70	1185	1130	348	686	450
CRLWT06	90	1205	1140	360	737	480
CRLWT07	140	1345	1270	414	825	540
CRLWT08	180	1460	1380	450	895	584
CRLWT09	230	1560	1480	482	952	610
CRLWT10	340	1750	1640	560	1068	680
CRLWT11	450	1910	1800	610	1165	740
CRLWT12	680	2190	2080	700	1340	840
CRLWT13	910	2350	2200	762	1435	940
CRLWT14	1140	2580	2450	825	1557	1000
CRLWT15	1360	2750	2600	880	1680	1060
CRLWT16	1500	2830	2680	912	1730	1080
CRLWT17	1820	2940	2790	952	1800	1120
CRLWT18	2270	2990	2840	984	1830	1130
CRLWT19	2730	3150	2900	1040	1930	1200
CRLWT20	3180	3200	3030	1070	1960	1240
CRLWT21	3630	3250	3070	1105	1980	1276
CRLWT22	4100	3380	3200	1150	2060	1330
CRLWT23	4540	3490	3310	1180	2130	1370
CRLWT24	5000	3600	3420	1226	2200	1400
CRLWT25	5500	3710	3520	1264	2260	1450
CRLWT26	5900	3810	3610	1296	2320	1500
CRLWT27	6400	3910	3710	1334	2390	1540
CRLWT28	6800	3990	3790	1362	2440	1570
CRLWT29	7300	4080	3870	1394	2490	1610
CRLWT30	7700	4170	3950	1422	2540	1640
CRLWT31	8200	4240	4020	1448	2590	1670
CRLWT32	8600	4320	4100	1474	2640	1700
CRLWT33	9100	4390	4170	1500	2690	1730
CRLWT34	10000	4540	4300	1546	2770	1780
CRLWT35	11100	4730	4480	1614	2890	1860
CRLWT36	13600	5030	4800	1716	3070	1980
CRLWT37	15000	5200	4950	1774	3170	2050
CRLWT38	16000	5290	5050	1804	3230	2080
CRLWT39	18000	5540	5280	1904	3330	2180
CRLWT40	20000	5710	5450	1950	3480	2250
