CLGR® Casting Steel Japan/JIS Stock Anchor

Name: CLGR® Casting Steel Japan/JIS Stock Anchor
Brand: CLGR®

The CLGR® Japan Stock Anchors are fully compliant with relevant JIS standards, ensuring quality and reliability. A stock anchor features a stabilizing anchor stock, which may be detachable or fixed.

These marine JIS steel stock anchors are manufactured from heavy-grade cast steel to guarantee optimal working performance, stability, safety, and durability. Available in various weights to meet specific requirements, these conventional marine stock anchors serve essential mooring functions for vessels and boats. For enhanced protection, the anchors feature either black bitumen paint or hot-dip galvanized surface treatments to withstand harsh marine environments.

To Get A Quote >

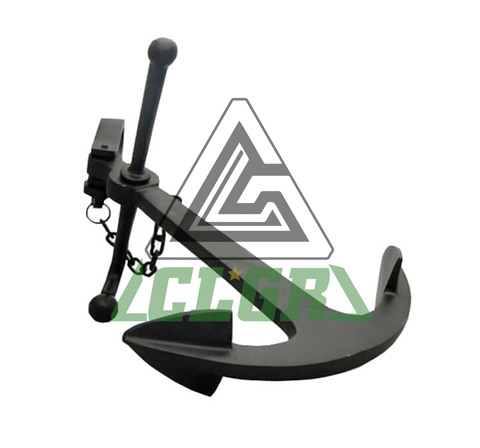

CLGR® Casting Steel Japan Stock Anchor Company

Overview of CLGR® Casting Steel Japan/JIS Stock Anchor

Brand	CLGR®
Material	Casting Steel
Function	Ship Mooring
Type	High Holding Pow stock type anchor according to JIS standard.er Anchor
Surface Finish	Black Painting, Hot Dip Galvanized
Origin	China

Specifications of CLGR® Casting Steel Japan/JIS Stock Anchor

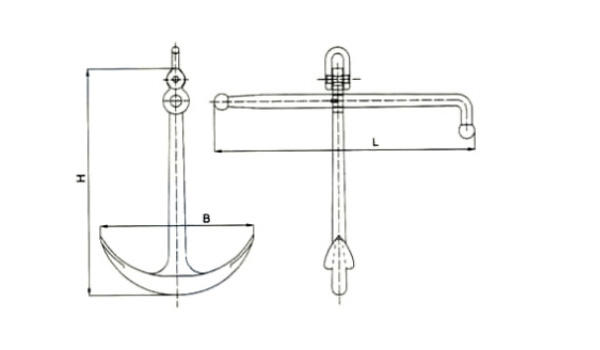

Part No.	Nominal Weight (KG)	Dimensions（mm）
Part No.	Nominal Weight (KG)	H	L	B
CRJIS500	500	2000	2035	1350
CRJIS700	700	2260	2335	1510
CRJIS750	750	2310	2342	1560
CRJIS1000	1000	2550	2637	1700
CRJIS1500	1500	2890	2960	1990
CRJIS2000	2000	3160	3272	2110
CRJIS3000	3000	3620	3555	2650
CRJIS3500	3500	3810	3850	2570
CRJIS4000	4000	4000	4135	2820
CRJIS5000	5000	4310	4370	3140
CRJIS6000	6000	4580	4740	3330
CRJIS7000	7000	4820	4990	3330
CRJIS8000	8000	5040	5215	3620
