CLGR® GB/T545-1996 Admiralty Anchor

Name: CLGR® GB/T545-1996 Admiralty Anchor
Brand: CLGR®

CLGR® GB/T545-1996 Admiralty Anchor, also known as Fisherman's Anchor and Stock Admiralty Anchor.

The Admiralty Anchor is a stock traditional anchor with High Holding Power capacity, consists of a central anchor with a ring or shackle for connecting rides (ropes, chains or cables connecting the ship to the anchor), which allows a weight reduction of 25% compared to the traditional anchor weight. Admiralty Anchor is available as standard as well as balanced type. Its weight range available is between 50kg to 10000kg.

To Get A Quote >

Overview of CLGR® GB/T545-1996 Admiralty Anchor

Brand	CLGR®
Material	Casting Steel
Type	GB/T545-1996 Admiralty Anchor
Weight	50kg-10,000kg
Categories	Anchor, Marine Equipment
Finish	Blacking Bitumen Painting, Hot Dip Galvanized
Application	Used for mooring system in the offshore filed, with the feature of High Stability, Easy Handling and Good Performance.

Specifications of CLGR® GB/T545-1996 Admiralty Anchor

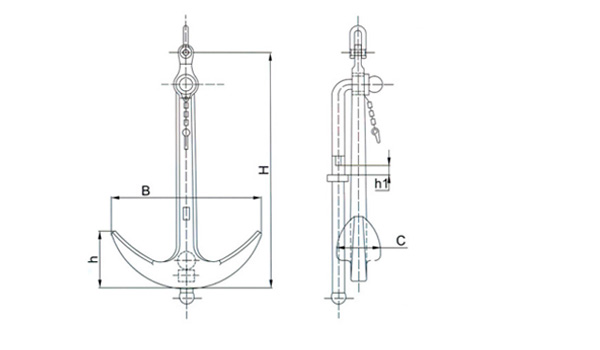

Part No.	Nominal Weight (KG)	Dimensions (mm)
		Dimensions (mm)
		H	h	h1	B	C
CRGBA50	50	960	230	42	635	185
CRGBA75	75	1105	266	45	710	210
CRGBA100	100	1215	296	49	780	230
CRGBA125	125	1310	316	52	840	245
CRGBA150	150	1395	336	55	900	265
CRGBA200	200	1535	370	61	990	290
CRGBA250	250	1650	398	65	1065	310
CRGBA300	300	1755	423	70	1105	330
CRGBA400	400	1930	465	77	1240	365
CRGBA500	500	2080	502	84	1335	390
CRGBA600	600	2210	533	89	1440	415
CRGBA700	700	2330	560	93	1500	440
CRGBA800	800	2435	587	97	1570	460
CRGBA900	900	2530	610	101	1630	475
CRGBA1000	1000	2620	611	104	1685	495
CRGBA1250	1250	2825	680	112	1810	535
CRGBA1500	1500	3000	725	118	1955	565
CRGBA2000	2000	3300	797	131	2140	625
CRGBA2500	2500	3550	857	138	2270	672
CRGBA3000	3000	3780	912	150	2415	715
CRGBA3500	3500	3980	960	158	2540	750
CRGBA4000	4000	4160	1000	155	2650	785
CRGBA5000	5000	4480	1100	184	2830	800
CRGBA6000	6000	4740	1113	190	3000	438
CRGBA7000	7000	5025	1180	200	3165	960
CRGBA8000	8000	5240	1280	210	3300	980
CRGBA9000	9000	5450	1330	220	3440	990
CRGBA10000	10000	5680	1340	230	3600	1085
